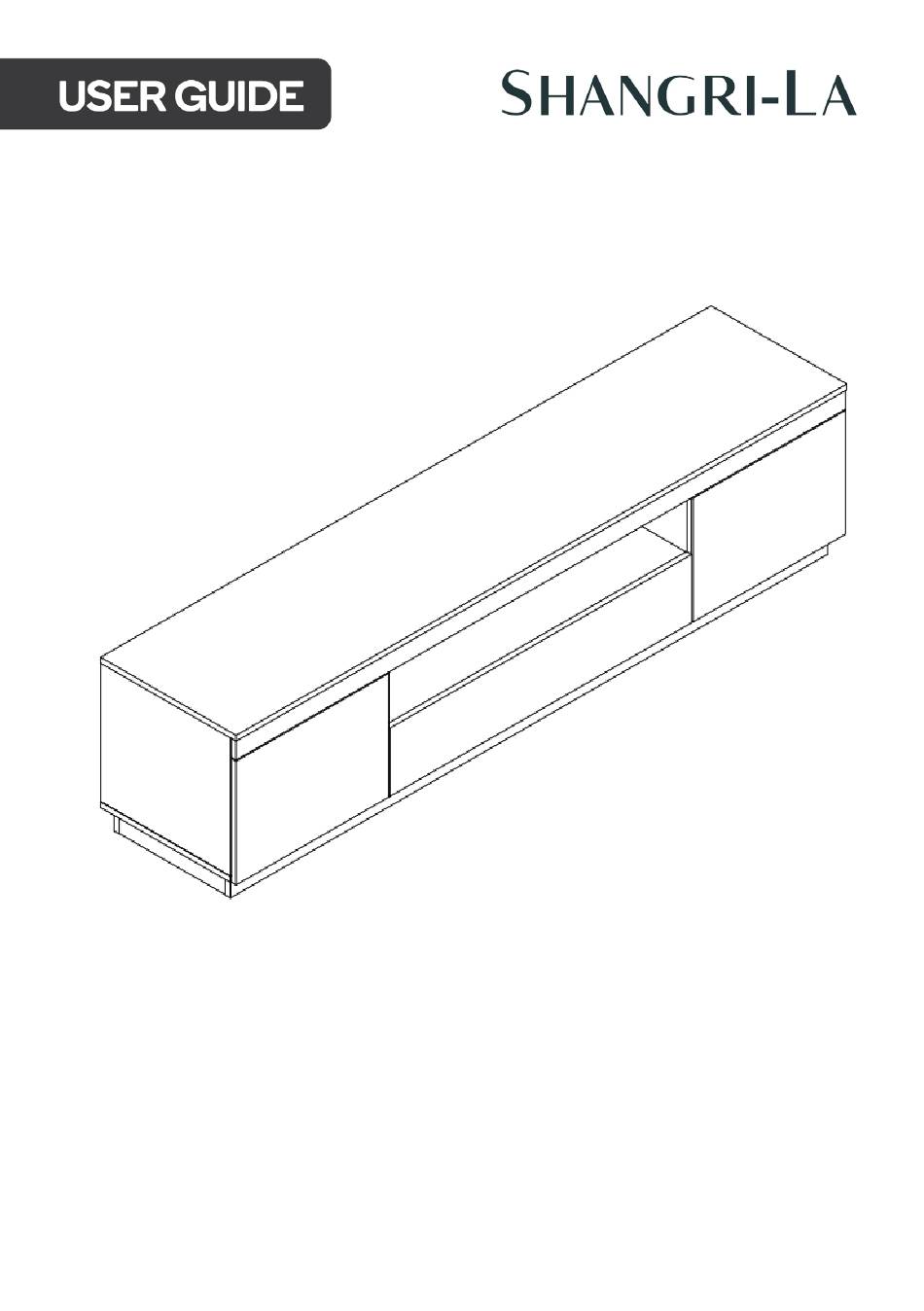

- Page 1 SERENGETI ENTERTAINMENT UNIT SLSERENEUWA...
- Page 3 To avoid any damage to these items during transportation, the slide runners and slide tracks have been pre-assembled together in pairs. Each pair includes a slide runner and slide track. Before assembling your new Shangri-La unit, please separate the slide runners from the slide tracks according to the below instructions.
- Page 4 Step 1: Extend the slide runners apart from the slide track: Step 2: Gently press the plastic release lever on the slide runner while pulling the slide runner and slide track apart from each other: Step 3: The slide runner and slide track should now be separated.
- Page 5 Step 2: Adjust the gap between door and side panel. Top panel Door Side panel Loosen the screw slightly. Adjust the hinge to right position (see step 2a & 2b). then tighten the screw. Step 2a: Move the door in Step 2b: Move the door out Top panel Top panel...
- Page 6 Step 3: Adjust the gap between two doors. Top panel Door Side panel Loosen or tighten the screw slightly to adjust the gap between the door panels (see step 3a & step 3b). Step 3a: Move the door right Step 3b: Move the door left Top panel Top panel Gap too small...
- Page 7 COMPONENTS...
- Page 8 Dimensions (mm) Dimensions (mm) 355 x 383 x 15 364 x 432 x 2.5 355 x 383 x 15 151 x 901 x 2.5 355 x 383 x 15 60 x 1760 x 15 355 x 383 x 15 60 x 313 x 15 400 x 1800 x 15 60 x 313 x 15 383 x 1800 x 15...
- Page 9 A Φ15x9.6 (x40) B L=35mm (x40) C Φ5.5x38 (x8) D Φ4x32 (x2) E 14" (x2) F 14" (x2) G Φ3.5x12 (x12) H (x12) I Φ3x18 (x12) J (x4) K Φ4x15 (x16) L Φ4x25 (x6)
- Page 10 ASSEMBLY Step 1: B L=35mm (x6)
- Page 11 Step 2: F 14" (x2) G Φ3.5x12 (x6) DRAWER SLIDE (F X 1) DRAWER SLIDE (F X 1)
- Page 12 Step 3: Use D screws to secure parts as shown. Use a Phillips head screwdriver to secure A to B for part 18. A Φ15x9.6 (x2) D Φ4x32 (x2) Arrow to point in the direction of end hole...
- Page 13 Step 4: A Φ15x9.6 (x4) Arrow to point in the direction of end hole...
- Page 14 Step 5: E 14" (x2) G Φ3.5x12 (x6) DRAWER SLIDE (E X 2)
- Page 15 Step 6: B L=35mm (x6)
- Page 16 Step 7: B L=35mm (x14)
- Page 17 Step 8: A Φ15x9.6 (x5) Arrow to point in the direction of end hole...
- Page 18 Step 9: B L=35mm (x6)
- Page 19 Step 10: Repeat this process twice for the parts labelled 15. B L=35mm (x8)
- Page 20 Step 11: A Φ15x9.6 (x8) Arrow to point in the direction of end hole...
- Page 21 Step 12: L Φ4x25 (x6)
- Page 22 Step 13: A Φ15x9.6 (x6)
- Page 23 Step 14: C Φ5.5x38 (x8)
- Page 24 Step 15: A Φ15x9.6 (x6) Arrow to point in the direction of end hole...
- Page 25 Step 16: A Φ15x9.6 (x9) Arrow to point in the direction of end hole...
- Page 26 Step 17: Secure the hinges (J) with the screws (K) to attach the doors. Repeat for both doors. J (x4) K Φ4x15 (x16)
- Page 27 Step 18:...
- Page 28 Step 19: H (x12) I Φ3x18 (x12)
- Page 29 Assembly complete.
- Page 30 NOTES...
- Page 32 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
