Summary of Contents for SHANGRI-LA HAMPTON SLHAMPTWRWA

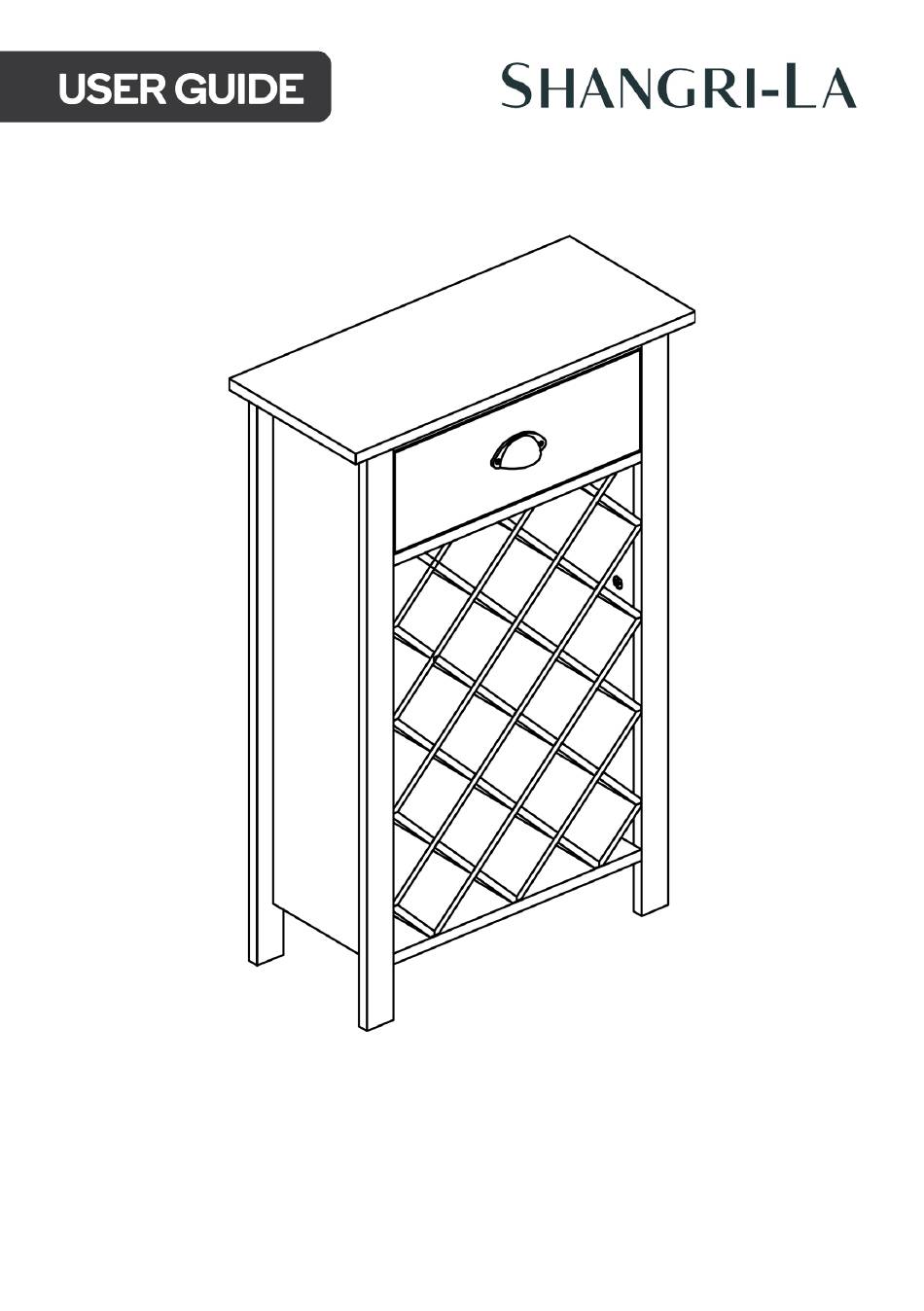

- Page 1 HAMPTON WINE RACK SLHAMPTWRWA, SLHAMPTWRBA...
- Page 3 COMPONENTS...
- Page 4 Hardware A (x28) B (x28) C Φ6x30 (x14) D Φ3x12 (x7) E (x1) F Φ4x14 (x1) G (x1) H Φ4x25 (x2) I Φ2.5x12 (x20) J Φ4x40 (x1) K (x1) L (x1) M Φ4x30 (x4)
- Page 5 ASSEMBLY Step 1: A (x12) ✗ ✓ Step 2: Insert C into parts 5 and 7 then secure parts 5 and 7 to part 6. Ensuring the arrows on each B piece are pointing to the corresponding A piece, insert B pieces into parts labelled 6 and secure B to A with a Phillips head screwdriver (not supplied) Repeat this process to parts labelled 8 and 9, with the remaining part 6.
- Page 6 Step 3: Insert A onto part 5. Using a Phillips screwdriver (not supplied), secure one part labelled 10 with D screws. Insert A onto part 8. Using a Phillips head screwdriver, secure the remining part labelled 10 with D screws. A (x8) D (x4) Step 4:...
- Page 7 Step 5: B (x4) C (x2) Step 6: B (x4) C (x2)
- Page 8 Step 7: A (x4) F (x1) G (x1) H (x2) Step 8: B (x4) C (x2)
- Page 9 Step 9: I (x20) Step 10:...
- Page 10 Step 11:...
- Page 11 Step 12:...
- Page 12 Step 13: Mark a spot on the wall where you would like to place the wine rack. Using a drill (not supplied), make a hole on the marked spot. With a hammer (not supplied), secure K through the hole. Align G on the wine rack assembly over K and using a Phillips screwdriver, secure the J screw through both components (G, K).
- Page 13 Step 14: A (x4) D (x2) Step 15: M (x4)
- Page 14 Step 16: B (x4) Step 17:...
- Page 15 Assembly complete.
- Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
