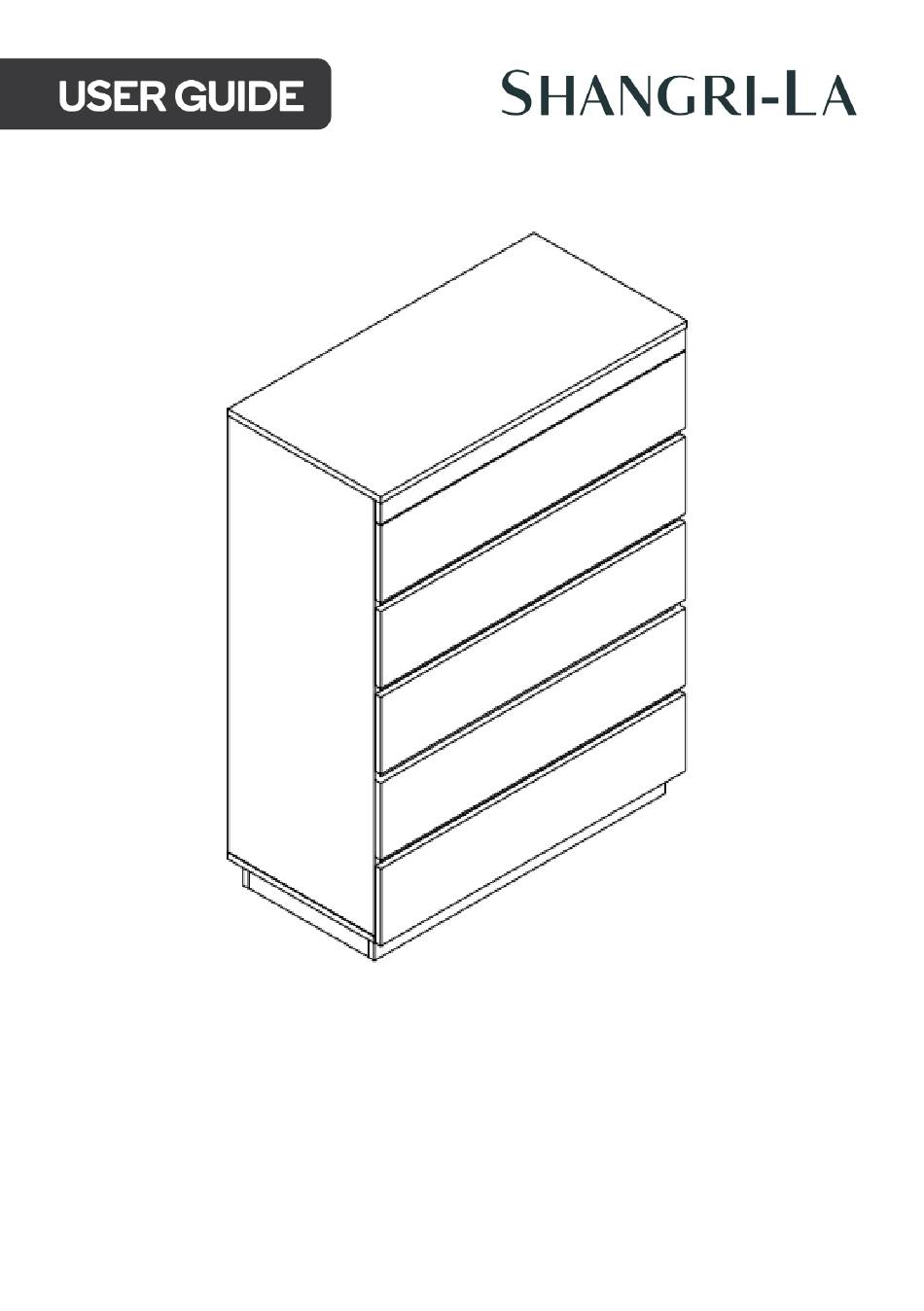

- Page 1 SERENGETI CHEST OF DRAWERS SLSERENCDWA...
-
Page 3: Safety And Warnings
To avoid any damage to these items during transportation, the slide runners and slide tracks have been pre-assembled together in pairs. Each pair includes a slide runner and slide track. Before assembling your new Shangri-La unit, please separate the slide runners from the slide tracks according to the below instructions. - Page 4 Step 1: Extend the slide runners apart from the slide track: Step 2: Gently press the plastic release lever on the slide runner while pulling the slide runner and slide track apart from each other: Step 3: The slide runner and slide track should now be separated. repeat these steps for all remaining pairs of slide runners and slide tracks: Slide runner Slide track...
- Page 5 COMPONENTS...
- Page 6 Parts list Dimensions (mm) Dimensions (mm) 383 x 993 x 15 60 x 760 x 15 383 x 993 x 15 60 x 313 x 15 400 x 800 x 15 175 x 796 x 15 383 x 800 x 15 118 x 350 x 12 230 x 777 x 2.5 118 x 350 x 12...
- Page 7 ASSEMBLY Step 1: Repeat this process for all parts labelled 12 and 15. B L=35mm (x30)
- Page 8 Step 2: Repeat this process for all parts labelled 13 and 14. F 14" (x10) G Φ3.5x12 (x10) DRAWER SLIDE (F X 5) DRAWER SLIDE (F X 5)
- Page 9 Step 3: Use D screws to secure parts as shown. Use a Phillips head screwdriver to secure A to B for part 12. Repeat this process for all five drawers. A Φ15x9.6 (x10) D Φ4x32 (x10) Arrow to point in the direction of end hole...
- Page 10 Step 4: Repeat this process for all five drawers. A Φ15x9.6 (x20) Arrow to point in the direction of end hole...
- Page 11 Step 5: E 14" (x10) G Φ3.5x12 (x30) DRAWER SLIDE (E X 10)
- Page 12 Step 6: B L=35mm (x12)
- Page 13 Step 7: B L=35mm (x7)
- Page 14 Step 8: A Φ15x9.6 (x3) Arrow to point in the direction of end hole...
- Page 15 Step 9: B L=35mm (x4) Step 10: Repeat this process twice for parts labelled 10. B L=35mm (x4)
- Page 16 Step 11: A Φ15x9.6 (x4) Arrow to point in the direction of end hole...
- Page 17 Step 12: A Φ15x9.6 (x6) Arrow to point in the direction of end hole...
- Page 18 Step 13: A Φ15x9.6 (x6) Arrow to point in the direction of end hole...
- Page 19 Step 14: C Φ5.5x38 (x4)
- Page 20 Step 15: A Φ15x9.6 (x4) Arrow to point in the direction of end hole...
- Page 21 Step 16: A Φ15x9.6 (x4) Arrow to point in the direction of end hole...
- Page 22 Step 17:...
- Page 23 Step 18: H (x12) I Φ3x18 (x12)
- Page 24 Step 19: J Φ6x13x1 (x1) K (x1) L Φ4x16 (x1) TOPPLING FURNITURE WARNING: • It is strongly recommended that this product is permanently fixed to the wall. • Please seek professional advice if you are in doubt of what fixing device to use. •...
- Page 25 Step 20: Move the drawer chest to the final position. Attach the safety strap to the wall make sure it is snugly fit.
- Page 26 Assembly complete.
- Page 27 NOTES...
- Page 28 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
