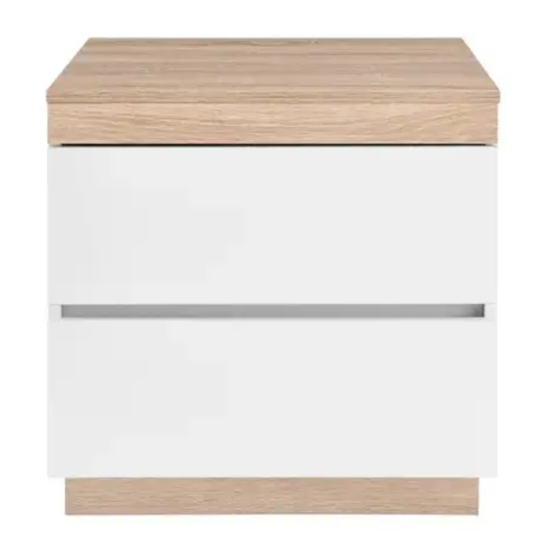

- Page 1 SERENGETI BEDSIDE TABLE SLSERENBSWA...
- Page 3 To avoid any damage to these items during transportation, the slide runners and slide tracks have been pre-assembled together in pairs. Each pair includes a slide runner and slide track. Before assembling your new Shangri-La unit, please separate the slide runners from the slide tracks according to the below instructions.
- Page 4 Step 1: Extend the slide runners apart from the slide track: Step 2: Gently press the plastic release lever on the slide runner while pulling the slide runner and slide track apart from each other: Step 3: The slide runner and slide track should now be separated. repeat these steps for all remaining pairs of slide runners and slide tracks: Slide runner Slide track...
- Page 5 COMPONENTS...
- Page 6 Dimensions (mm) Dimensions (mm) 444 x 483 x 15 193 x 546 x 15 444 x 483 x 15 148 x 350 x 12 500 x 550 x 15 148 x 350 x 12 483 x 527 x 2.5 146 x 350 x 12 50 x 546 x 15 146 x 350 x 12 50 x 518 x 15...
- Page 7 ASSEMBLY Step 1: Repeat this process twice for pieces labelled 10 and 13. B L=35mm (x12)
- Page 8 Step 2: Repeat this process twice for pieces 11 and 12. F 14" (x4) G Φ3.5x12 (x12) DRAWER SLIDE (F X 2) DRAWER SLIDE (F X 2)
- Page 9 Step 3: Use D screws to secure parts as shown. Use a Phillips head screwdriver to secure A to B for part 10. Repeat this step twice to complete both drawers. A Φ15x9.6 (x8) D Φ4x32 (x4) Arrow to point in the direction of end hole...
- Page 10 Step 4: Repeat this process twice for both drawers. A Φ15x9.6 (x4) Arrow to point in the direction of end hole...
- Page 11 Step 5: E 14" (x4) G Φ3.5x12 (x12) DRAWER SLIDE (E X 4)
- Page 12 Step 6: B L=35mm (x2)
- Page 13 Step 7: B L=35mm (x6)
- Page 14 Step 8: A Φ15x9.6 (x2) Arrow to point in the direction of end hole...
- Page 15 Step 9: B L=35mm (x4)
- Page 16 Step 10: Repeat this process twice for the pieces labelled 8. B L=35mm (x4)
- Page 17 Step 11: A Φ15x9.6 (x4) Arrow to point in the direction of the end hole...
- Page 18 Step 12: A Φ15x9.6 (x2) Arrow to point in the direction of the end hole...
- Page 19 Step 13: C Φ5.5x38 (x4)
- Page 20 Step 14: A Φ15x9.6 (x4) Arrow to point in the direction of the end hole...
- Page 21 Step 15: A Φ15x9.6 (x4) Arrow to point in the direction of the end hole...
- Page 22 Step 16:...
- Page 23 Step 17: H (x4) I Φ3x18 (x4)
- Page 24 Assembly complete.
- Page 25 NOTES...
- Page 28 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
