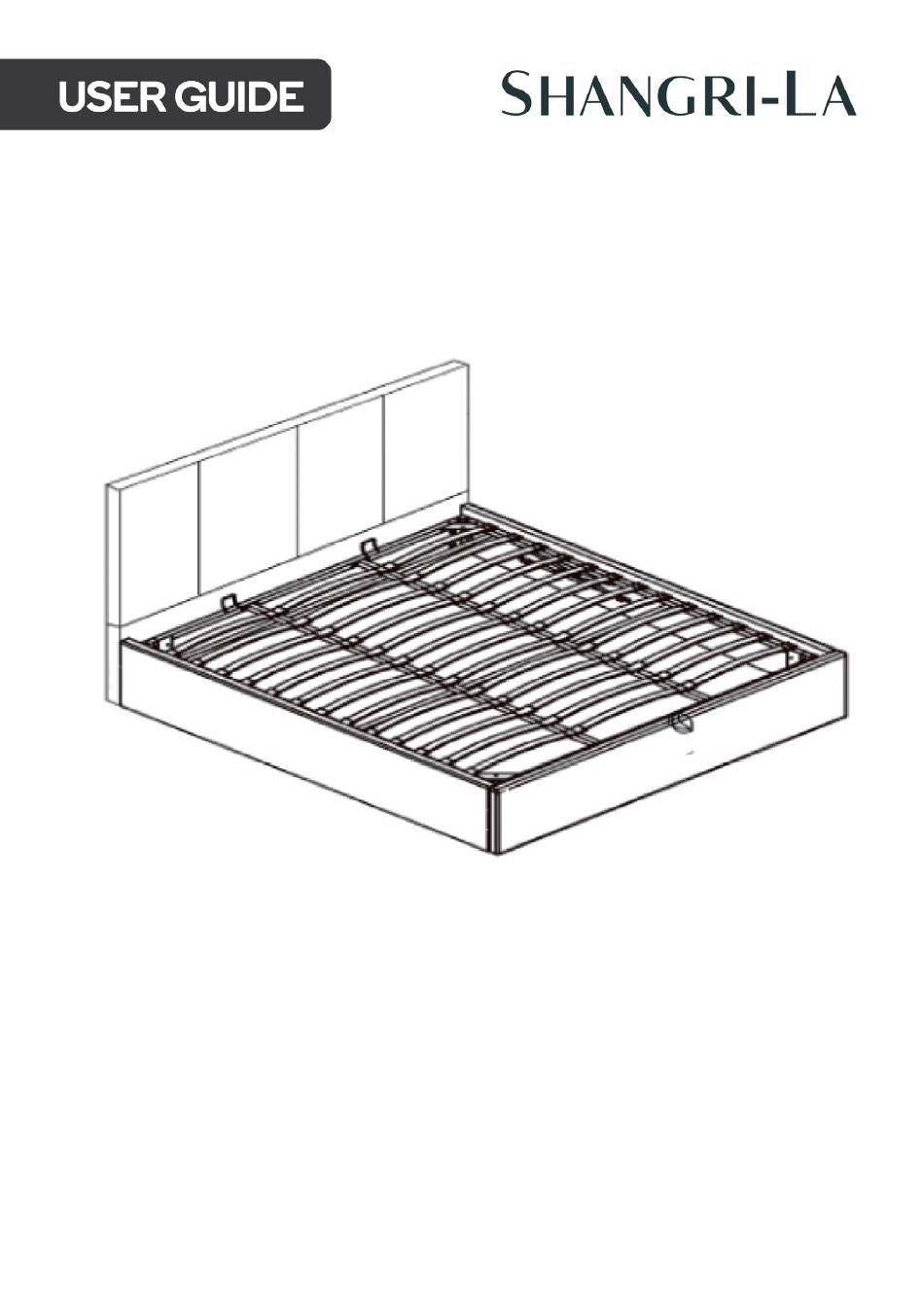

- Page 1 ANTALYA GAS LIFT BED KING SLGSLTBEKGB, SLGSLTBEKCB, SLGSLTBEKBB...
- Page 3 COMPONENTS 1 Top headboard (x1) 1-1 Bottom headboard (x1) 2 Footboard (x1) 3 Left sideboard (x1) 4 Right sideboard (x1) 8 Bracket (x1) 9 Slat (x36) 10 End cap (x24) 11 Inner cap (x24) 12 Vertical frame slat (x2) 13 Horizontal frame slat (x2) 14 Horizontal beam (x1) 15 Inner vertical 16 Floor mat (x1)
- Page 4 Hardware A M6 flat washer (x8) B Spring washer (x8) C 20mm M6 screw (x8) D M8 nut (x22) E 40mm M7 screw (x14) F 20mm M8 screw (x12) G 35mm M8 screw (x23) I Protective pad (x10) H M8 flat washer (x45) K Allen key (x1) L Wrench (x1) M Mattress stopper (x2)
- Page 5 ASSEMBLY Step 1: Attach the top headboard (1) to the bottom headboard (1-1) by first peeling the cloth away from the bottom headboard (1-1). Align M8 flat washers (H) over each of the five holes. Using the Allen key (K), screw through 35mm M8 screws (G). G (x5) H (x5) K (x1)
- Page 6 Step 2: Attach the holes onto the bracket (8) with the holes in the middle of the footboard (2). Place one M8 flat washer (H) over each of the two holes and using the Allen key (K), screw through 35mm M8 screws (G). Secure two protective pads (I) over the bracket (8).
- Page 7 Step 3: Align the two holes of the bracket on the left sideboard (3) with those of the left side of the bottom headboard (1-1). Place an M8 flat washer (H) and spring washer (B) over one of the holes. Using the Allen key (K), secure a 35mm M8 screw (G) through the washers (H, B).
- Page 8 Step 4: Unfold the floor mat (16) and place it under the bed. Connect the other end of the sideboards (3, 4) to the footboard (2) as outlined the previous step. Align the four holes of a corner support (18) with the holes at the corner of the left sideboard (3) and footboard (2).
- Page 9 Step 5: Align the holes of two leg supports (17) with one inner vertical frame slat (15) as shown below. Place an M8 flat washer (H) over one of the holes. Using an Allen key (K), insert and tighten a 35mm M8 screw (G). Using the wrench (L), secure the underside of the leg support with an M8 nut (D).
- Page 10 Step 6: Align the holes on one end of the vertical assemblies with those on a horizontal frame slat (13). Place an M8 flat washer (H) over one of the aligned holes on the side of the horizontal frame slat (13). Using the Allen key (K), insert and tighten a 40mm M7 screw (E). Using the wrench (L), secure an M8 nut (D) on the vertical assembly side of the hole.
- Page 11 Step 7: Align the holes and using the Allen key (K), secure both ends of the horizontal beam (14) to the left and right sideboard (3, 4) with 20mm M8 screws (F). F (x4) K (x1)
- Page 12 Step 8: Place protective pads (I) onto the horizontal beam (14). Secure the base frame assembly to the bed by aligning the three holes on one of the vertical frame slats (12) with the holes on the gas lift of the right sideboard (4). Place an M8 flat washer (H) over each hole and using the Allen key (K), secure 40mm M7 screws (E) through.
- Page 13 Step 9: Secure the end caps (10) onto the holes along the two lengths of the bed. Going down the bed, connect one slat (9) onto each end cap (10). Connect the other end of the slats with inner caps (11), connect the remaining slats (9) into the inner caps (11). The result will form twelve rows with three slats each.
- Page 14 Assembly complete.
-
Page 15: Cleaning And Care
CLEANING & CARE Use a soft dry cloth, feather duster or normal furniture polish to clean the bed. Over extended use, it may be necessary to tighten the fixings from time to time. This is normal for any flat pack furniture. - Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
