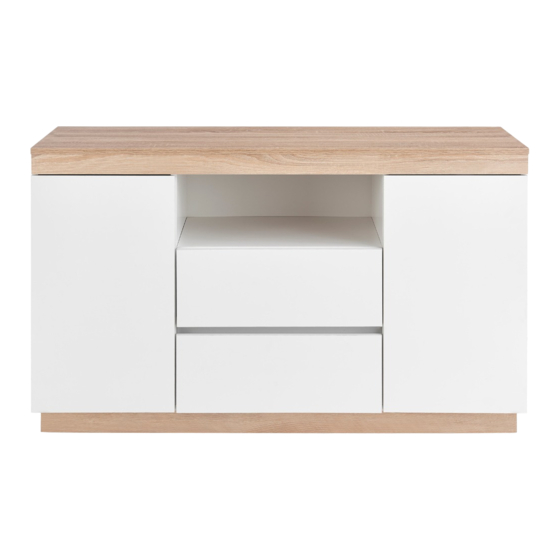

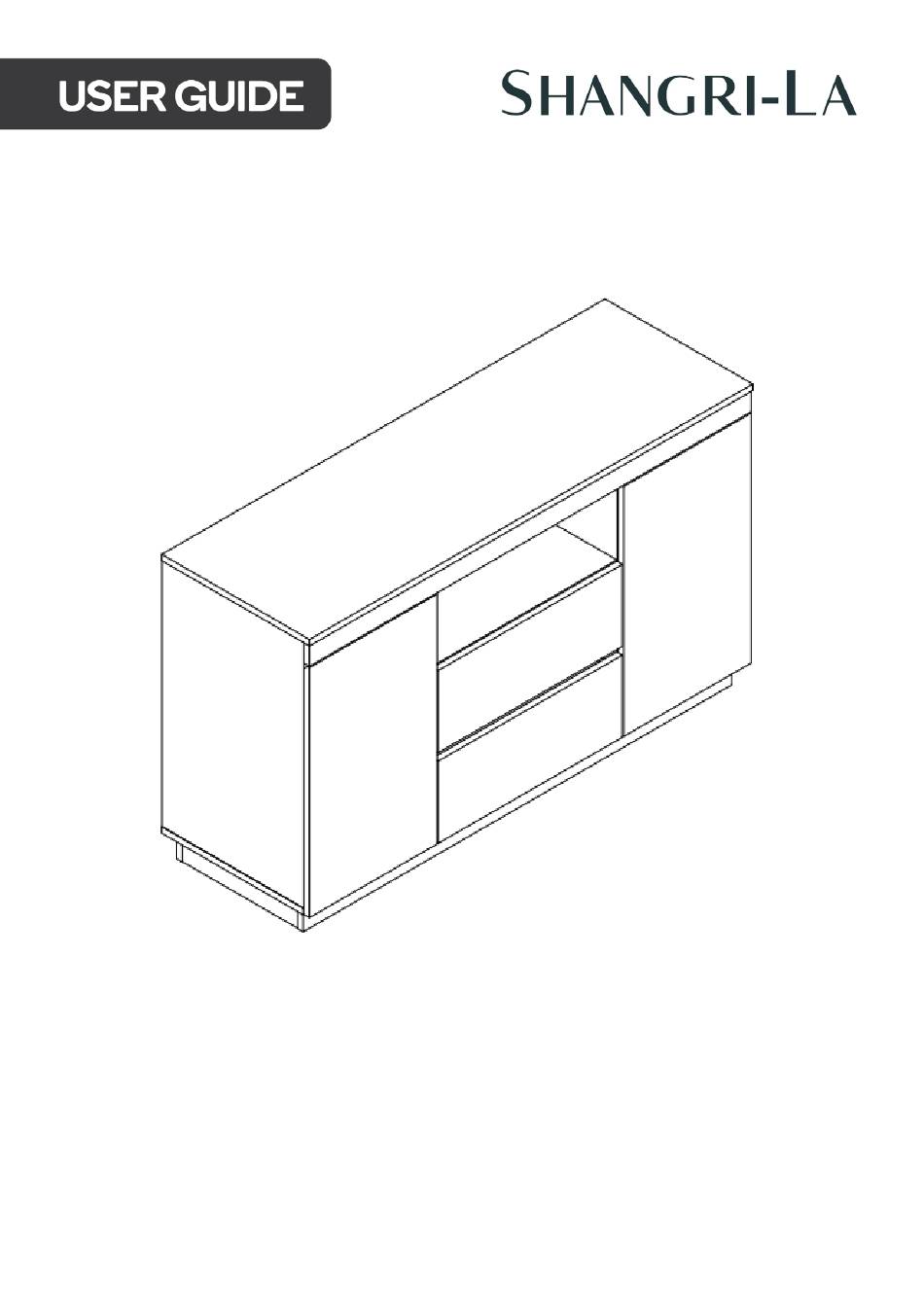

- Page 1 SERENGETI BUFFET SLSERENBFWA...
-
Page 3: Safety And Warnings
To avoid any damage to these items during transportation, the slide runners and slide tracks have been pre-assembled together in pairs. Each pair includes a slide runner and slide track. Before assembling your new Shangri-La unit, please separate the slide runners from the slide tracks according to the below instructions. - Page 4 Step 1: Extend the slide runners apart from the slide track: Step 2: Gently press the plastic release lever on the slide runner while pulling the slide runner and slide track apart from each other: Step 3: The slide runner and slide track should now be separated.
- Page 5 Step 2: Adjust the gap between door and side panel. Top panel Door Side panel Loosen the screw slightly. Adjust the hinge to right position (see step 2a & 2b). then tighten the screw. Step 2a: Move the door in Step 2b: Move the door out Top panel Top panel...
- Page 6 Step 3: Adjust the gap between two doors. Top panel Door Side panel Loosen or tighten the screw slightly to adjust the gap between the door panels (see step 3a & step 3b). Step 3a: Move the door right Step 3b: Move the door left Top panel Top panel Gap too small...
- Page 7 COMPONENTS...
- Page 8 Dimensions (mm) Dimensions (mm) 383 x 625 x 15 328 x 634 x 2.5 383 x 625 x 15 241 x 509 x 2.5 383 x 625 x 15 387 x 509 x 2.5 383 x 625 x 15 60 x 1160 x 15 400 x 1200 x 15 60 x 313 x 15 383 x 1200 x 15...
- Page 9 A Φ15x9.6 (x41) B L=35mm (x41) C Φ5.5x38 (x8) D Φ4x32 (x4) E 14" (x4) F 14" (x4) G Φ3.5x12 (x24) H (x16) I Φ3x18 (x16) J (x4) K Φ4x15 (x16) L Φ6x13x1 (x1) M (x1) N Φ4x16 (x1) O (x8) P Φ3.4x10 (x8)
- Page 10 ASSEMBLY Step 1: Repeat this process for all pieces labelled 19 and 22. B L=35mm (x12)
- Page 11 Step 2: Repeat this process for all pieces labelled 20 and 21. F 14" (x4) G Φ3.5x12 (x12) DRAWER SLIDE (F X 2) DRAWER SLIDE (F X 2)
- Page 12 Step 3: Use D screws to secure parts as shown. Use a Phillips head screwdriver to secure A to B for part 19. Repeat this step twice for both drawers. A Φ15x9.6 (x8) D Φ4x32 (x4) Arrow to point in the direction of end hole...
- Page 13 Step 4: Repeat this process for both drawers. A Φ15x9.6 (x4) Arrow to point in the direction of end hole...
- Page 14 Step 5: E 14" (x4) G Φ3.5x12 (x12) DRAWER SLIDE (E X 4)
- Page 15 Step 6: B L=35mm (x6)
- Page 16 Step 7: B L=35mm (x11)
- Page 17 Step 8: A Φ15x9.6 (x3) Arrow to point in the direction of end hole...
- Page 18 Step 9: B L=35mm (x4)
- Page 19 Step 10: Repeat this process twice for parts labelled 16. B L=35mm (x8)
- Page 20 Step 11: A Φ15x9.6 (x8) Arrow to point in the direction of end hole...
- Page 21 Step 12: A Φ15x9.6 (x6)
- Page 22 Step 13: C Φ5.5x38 (x8)
- Page 23 Step 14: A Φ15x9.6 (x4) Arrow to point in the direction of end hole...
- Page 24 Step 15: A Φ15x9.6 (x8) Arrow to point in the direction of end hole...
- Page 25 Step 16: Insert O and P into the shelf position holes. O (x8) P Φ3.4x10 (x8)
- Page 26 Step 17: Secure the hinges (J) with the screws (K) to attach the doors. Repeat for both doors. J (x4) K Φ4x15 (x16)
- Page 27 Step 18:...
- Page 28 Step 19: H (x16) I Φ3x18 (x16)
- Page 29 Step 20: L Φ6x13x1 (x1) M (x1) N Φ4x16 (x1) TOPPLING FURNITURE WARNING: • It is strongly recommended that this product is permanently fixed to the wall. • Please seek professional advice if you are in doubt of what fixing device to use. •...
- Page 30 Step 21: Move the drawer chest to the final position. Attach the safety strap to the wall. Make sure it is firmly attached and make sure it is snug fit.
- Page 31 Assembly complete.
- Page 32 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
