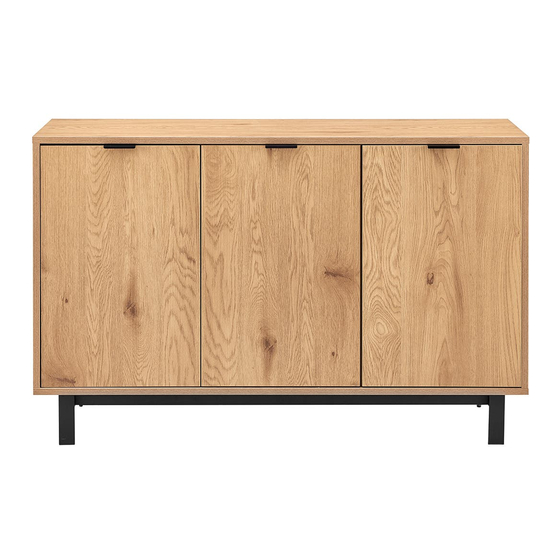

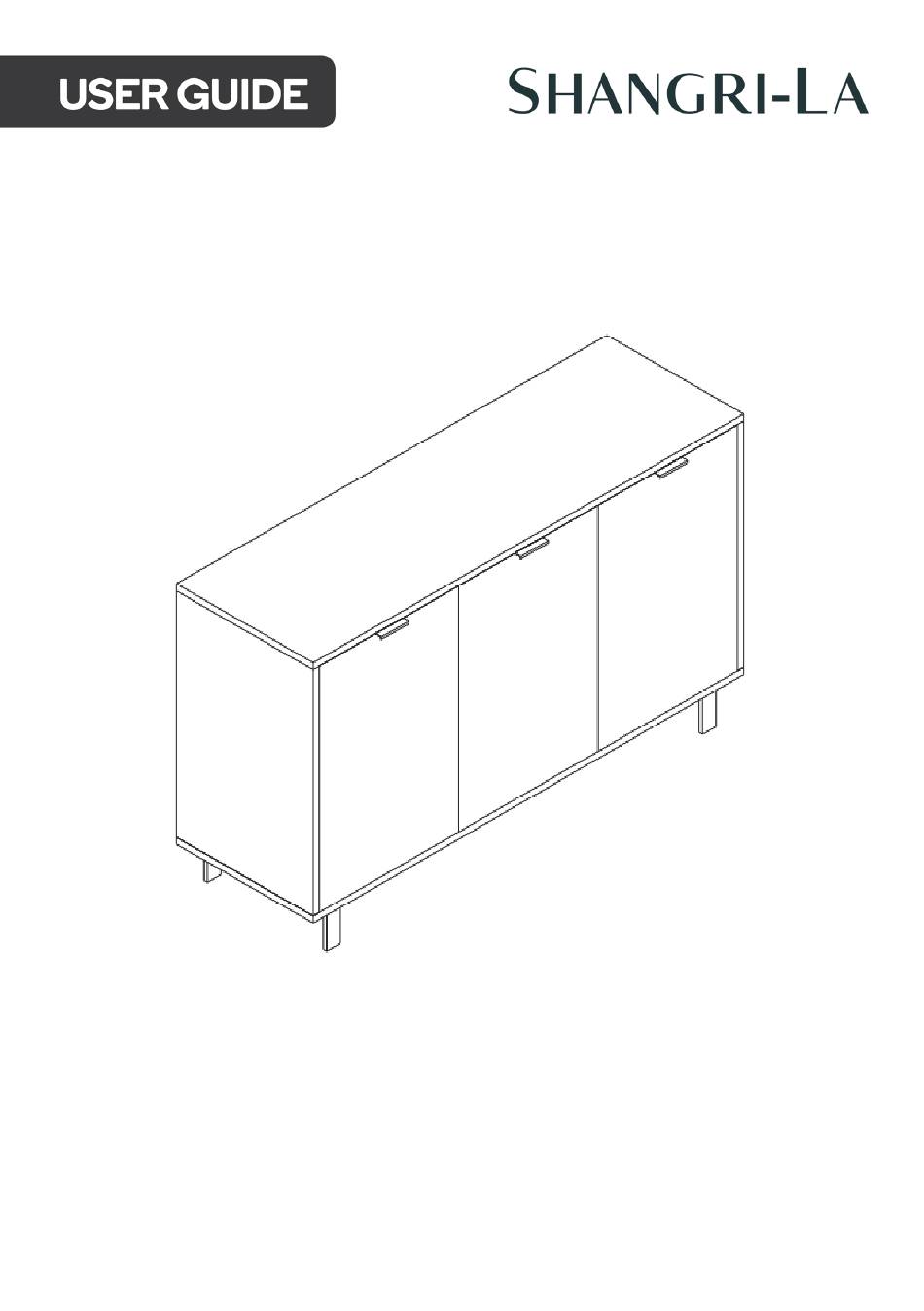

- Page 1 BICCA BUFFET SLBICCABFNA...
- Page 3 SAFETY & WARNINGS Important Information: manual • Please read the entire carefully before starting to assemble and/or using this product. Follow the manual thoroughly and keep it for further reference. • Two people are required for this assembly. WARNING: The screw supplied together with the anti-toppling bracket is to be used only for fixing the anti-topple bracket to the furniture.
- Page 4 COMPONENTS 1260 x 400 x 18mm 634 x 406 x 4mm ① ⑧ 624 x 400 x 18mm 634 x 406 x 4mm ② ⑨ 624 x 380 x 18mm 618 x 404 x 18mm ③ ⑩ 624 x 380 x 18mm 618 x 404 x 18mm ④...
- Page 5 Hardware: A 80x38x19mm (x3) B M6x40mm (x4) C M5x55mm (x8) D M6x45mm (x8) H 15x13x10mm (x6) E Φ15x12mm (x8) F Φ8x30 (x16) G Φ5x38mm (x8) M M4x14mm (x30) J Φ3.5x20mm (x6) K Φ35/FK9mm (x2) L Φ35/FK17mm (x4) P 150x30x1mm (x2) Q M4x12mm (x4) N Φ5/ Φ5mm (x12) R Φ10mm (x6)
- Page 6 ASSEMBLY Step 1: F Φ8x30 (x16)
- Page 7 Step 2: D M6x45mm P 150x30x1mm Q M4x12mm R Φ10mm (x4) (x8) (x2) (x4)
- Page 8 Step 3: E Φ15x12mm (x8)
- Page 9 Step 4:...
- Page 10 Step 5: T 3mm (x1) G Φ5x38mm (x8)
- Page 11 Step 6: B M6x40mm (x4) S 4mm (x1)
- Page 12 Step 7: C M5x55mm (x8)
- Page 13 Step 8: H 15x13x10mm (x6) J Φ3.5x20mm (x6)
- Page 14 Step 9: N Φ5/ Φ5mm (x12) U Φ21mm (x8)
- Page 15 Step 10:...
- Page 16 Step 11: A 80x38x19mm M M4x14mm K Φ35/FK9mm L Φ35/FK17mm (x3) (x18) (x2) (x4) Step 11-A: Left door (part 10, hinge L)
- Page 17 Step 11-B: Middle door (part 11, hinge K) Step 11-C: Right door (part 11, hinge L)
- Page 18 Step 12: M M4x14mm (x12)
- Page 19 Step 13: R Φ10mm (x2) TOPPLING FURNITURE WARNING: • It is strongly recommended that this product is permanently fixed to the wall. • Please seek professional advice if you are in doubt of what fixing device to use. • Regularly check that anchors are securely maintained. •...
- Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
