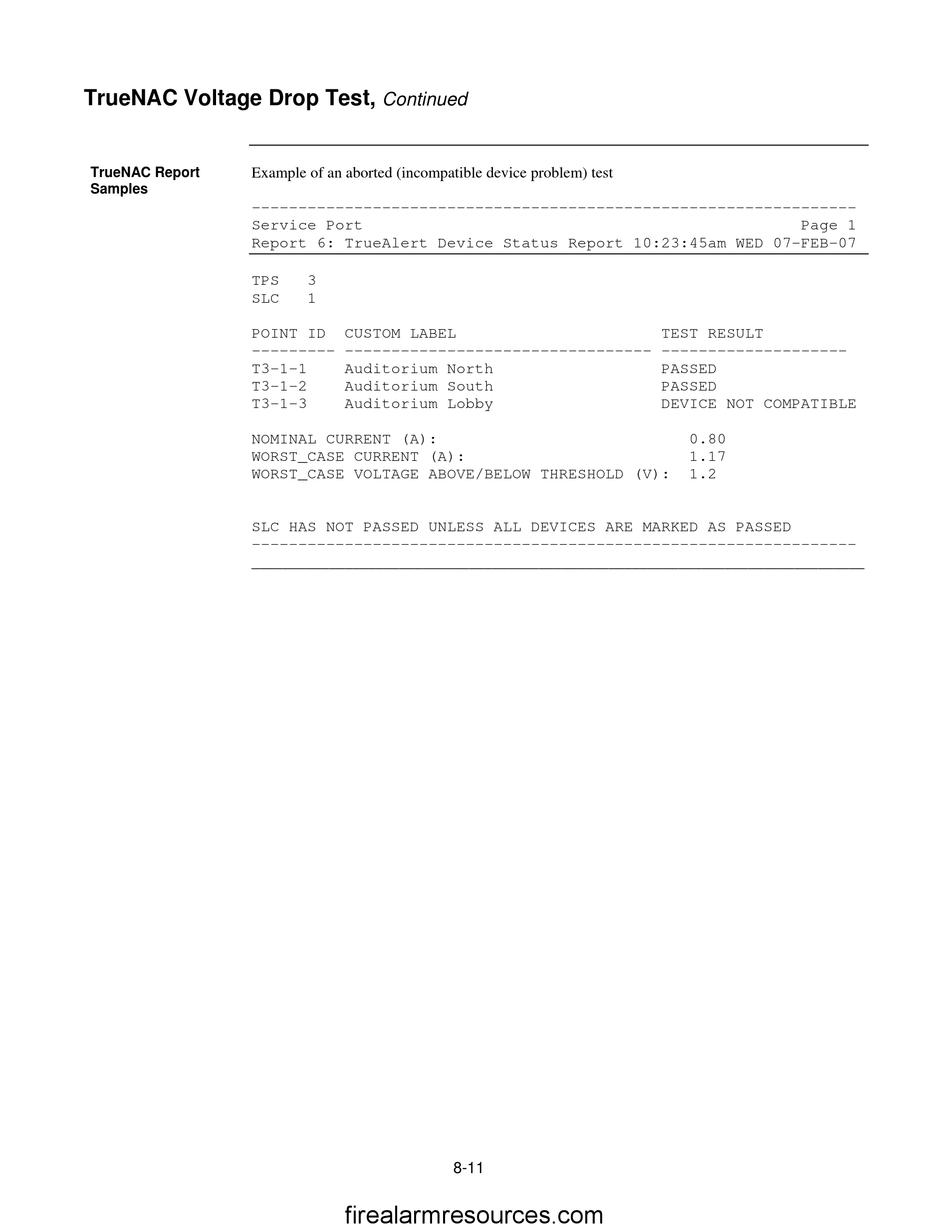

TrueNAC Voltage Drop Test,
T rueNAC Report Example of an aborted (incompatible device problem) test
1 2 0 B
Samples
-----------------------------------------------------------------
Service Port
Report 6: TrueAlert Device Status Report 10:23:45am WED 07-FEB-07
TPS
SLC
POINT ID
--------- --------------------------------- --------------------
T3-1-1
T3-1-2
T3-1-3
NOMINAL CURRENT (A):
WORST_CASE CURRENT (A):
WORST_CASE VOLTAGE ABOVE/BELOW THRESHOLD (V):
SLC HAS NOT PASSED UNLESS ALL DEVICES ARE MARKED AS PASSED
-----------------------------------------------------------------
_______________________________________________________________________________
Continued
3
1
CUSTOM LABEL
Auditorium North
Auditorium South
Auditorium Lobby
8-11
firealarmresources.com
Page 1
TEST RESULT
PASSED
PASSED
DEVICE NOT COMPATIBLE
0.80
1.17
1.2
