Float level gauge LT5
Endress+Hauser
5.10.5
Compact cone roof tank (guide pipe method)
1
2
3
4
Ø140 (5.51)
32

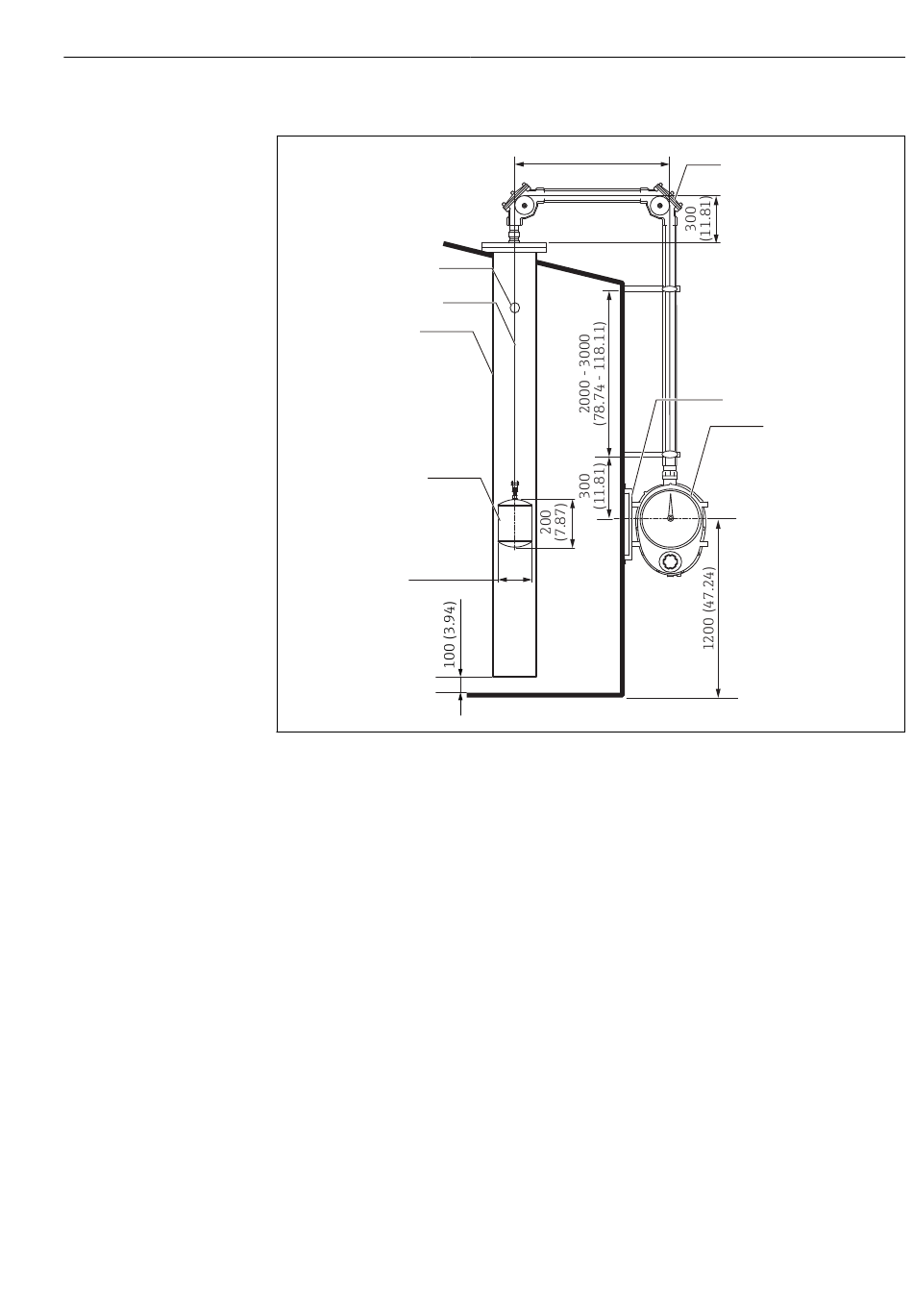

Mounting on a compact cone roof tank. Unit of measurement mm (in)
1
Ventilation hole
2
Measuring wire
3
Guide pipe (Stillwell)
4
Float
5
90 ° sheave elbow
6
Gauge supporter
7
Gauge head
950 (37.4)
5
6
Installation
7
A0041200
41
