5.4

Welding a gauge supporter

See the following diagram for reference when welding a gauge supporter. Note that pipe
supporters are not supplied.
In LT5-6 (high-pressure gauge head), the distance between the tank' s external wall
and the center of the gauge head is 15 mm (0.59 in) longer compared to that of
LT5-1 (low-pressure gauge head) / LT5-4 (medium-pressure gauge head).
250 (9.84)
90
(3.54)

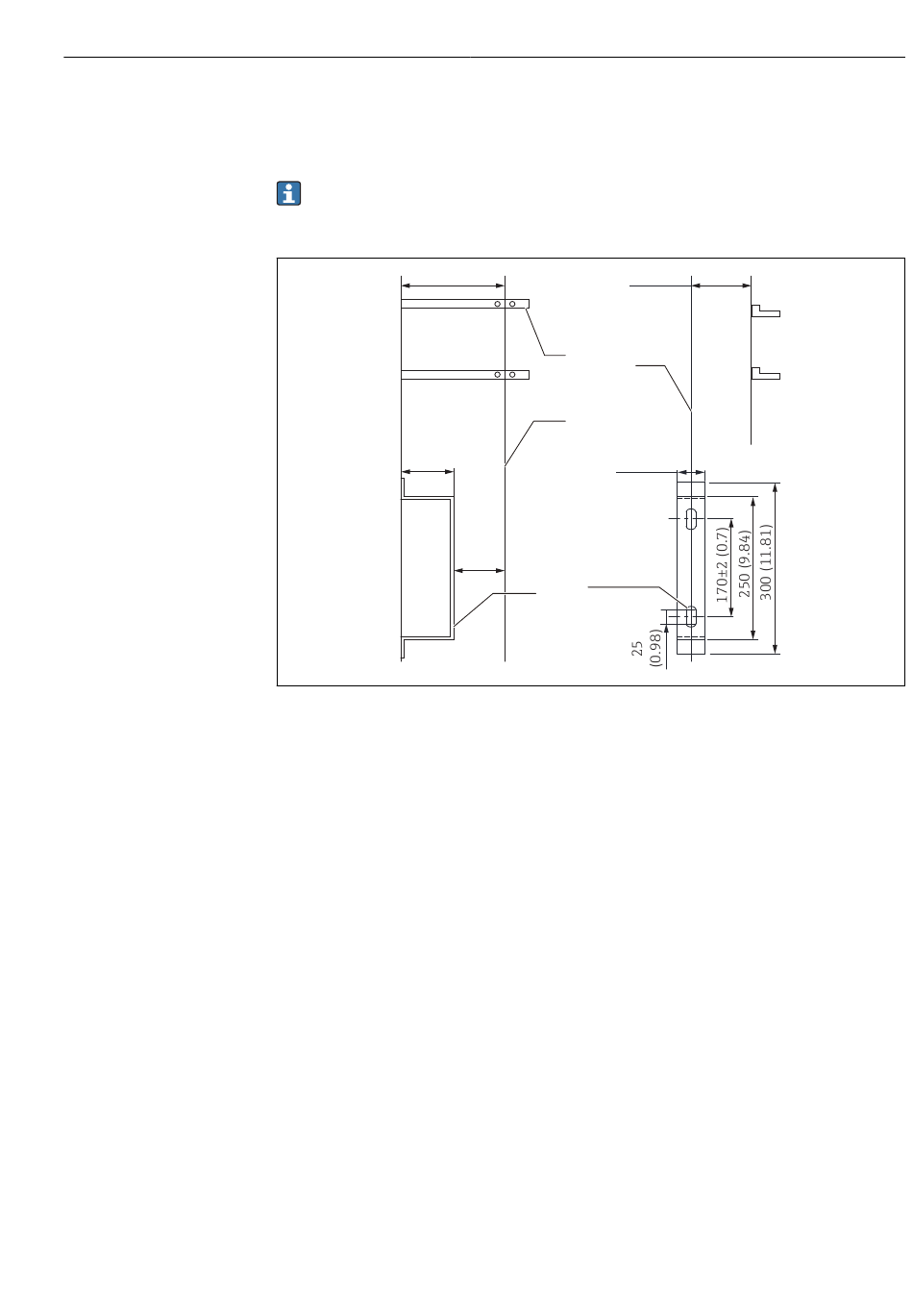

 21 Gauge supporter (low/medium pressure). Unit of measurement mm (in)
1 Pipe supporter (not supplied)
2 Center line of the mounting position
3 Gauge supporter (based on the selected option SS400: t = 4.5 / SUS304: t = 4.0), mounting bolt
4 Center line of the gauge supporter
25 (0.98)
1
4
2
32(1.26)
160
(6.3)
R5.5 (0.22)
3
Installation
