Float level gauge LT5

Endress+Hauser

5.5

Guide pipes

5.5.1

Selecting and mounting guide pipes

Guide pipes are required for most installations, except for tank top and underground

applications. Guide pipes are usually used in three locations:

• Gauge head to sheave elbow

• Sheave elbow to sheave elbow

• Sheave elbow to tank roof

Precautions regarding installation

• Note that guide pipes and pipe supporters are not supplied by Endress+Hauser.

• Ensure that any bends in guide pipes are 5 mm (0.17 in) or smaller.

• The space (piping distance) between a sheave elbow and a sheave elbow must be no

more than 2.5 m (8.2 ft).

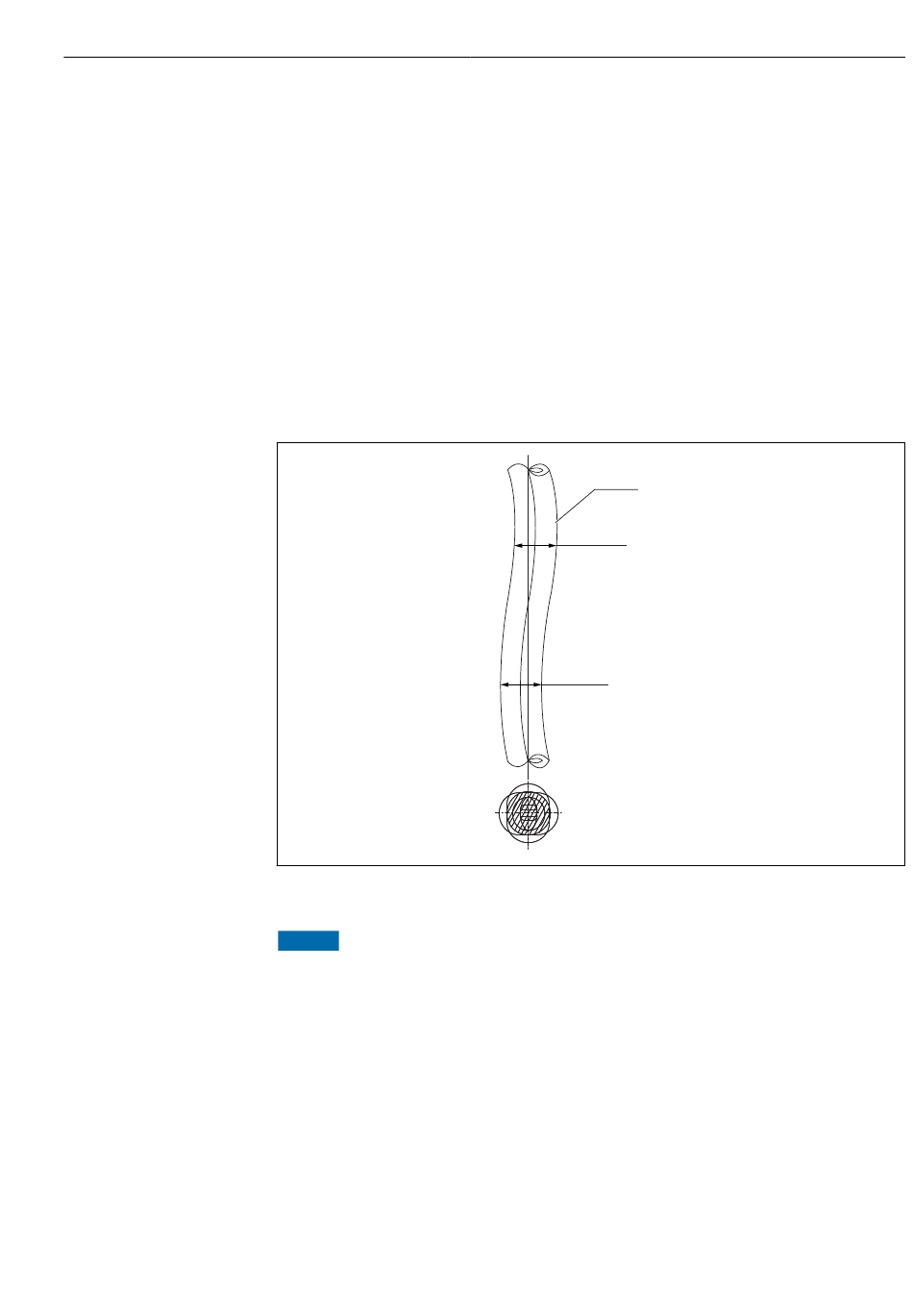

 23

Mounting guide pipes. Unit of measurement mm (in)

NOTICE

Recommended materials for guide pipes

‣

Always use a galvanized carbon steel pipe ("white gas pipe") for guide pipes. When the

application involves use of an extremely corrosive gas, use of rigid PVC pipes, stainless

steel pipes or resin inner lining is recommended.

1-1/2B

± 5 (0.2)

Installation

A0041181
