UG-739

OVERVIEW OF THE MAIN GUI WINDOW

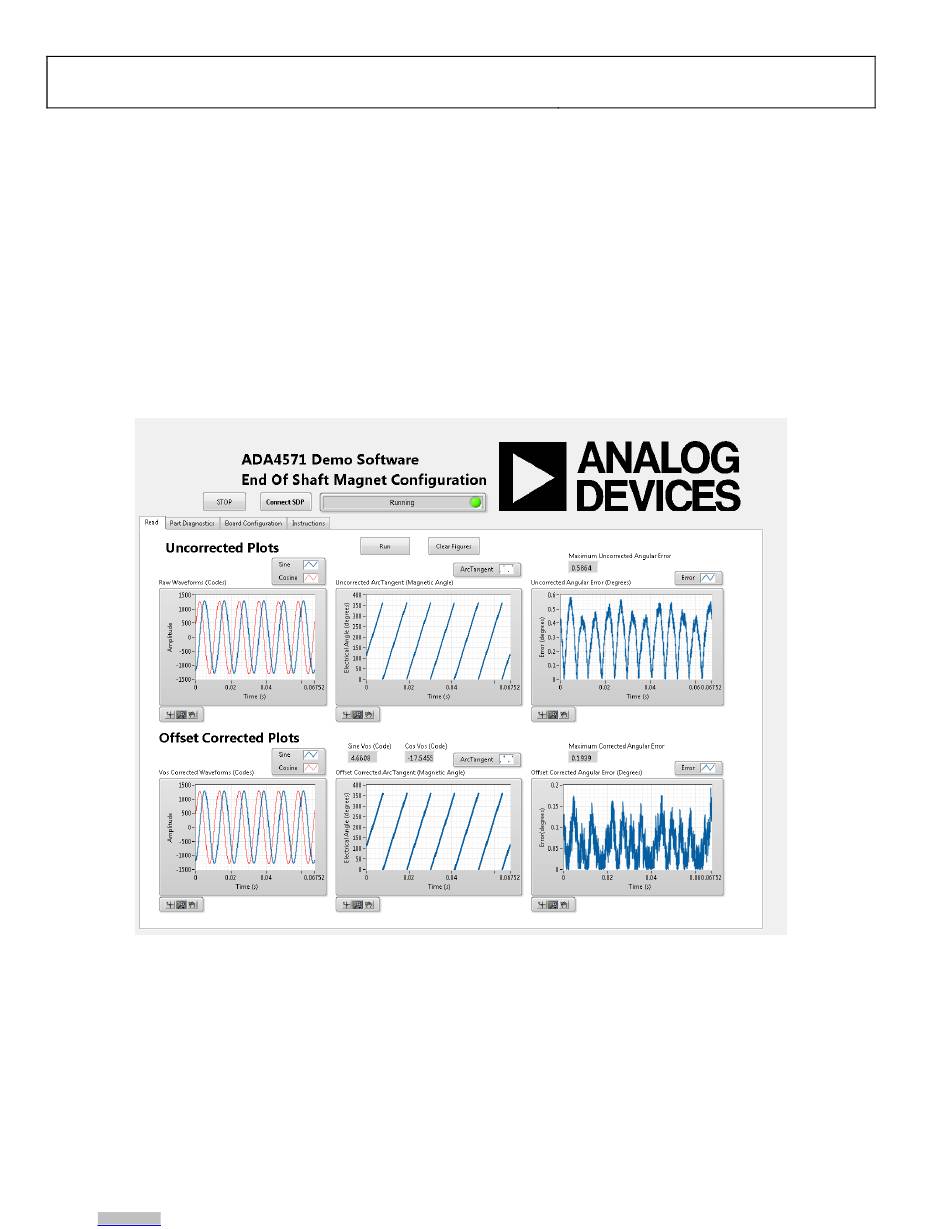

Figure 6 shows the main GUI window, as it appears, after
launching the GUI.
When the program is first launched the SDP controller board
must be recognized by the GUI before proceeding. Pressing
Connect SDP reads the EEPROM ID of the motherboard to
ensure the correct program is being used. If the SDP controller
board is not connected or if the drivers are not installed
correctly an error message will be shown. Ensure that the
drivers are installed correctly if this occurs.
After the SDP control board is properly connected and the
program recognizes the motherboard, the Instructions tab
appears. Click the Read tab to begin.
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
Initially all of the figures will be blank. To begin press Run (see
Figure 6). The various output graphs are explained in detail in
the following sections.
There are two different categories of output waveforms as
indicated by the GUI. The waveforms on the top of each tab,
indicated as Uncorrected Plots, are without any post processing
to correct for output offset before calculations are done on the
raw data. In the case of the bottom waveforms, indicated as
Offset Corrected Plots, the offset of each channel is subtracted
from the raw data before completing any further calculations.
These differences are discussed in further detail for each
waveform in the Raw Waveforms section.
Figure 6. ADA4571 Main Window
Rev. 0 | Page 6 of 13
