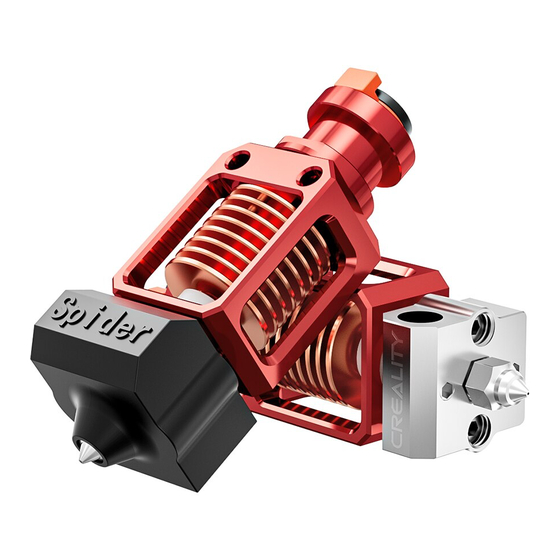

- Page 1 Spider 高温高流量喷头说明书 Spider High-temperature and High-speed Hotend Manual 深 圳 市 创 想 三 维 科 技 股 份 有 限 公 司...
- Page 2 产品清单 Product List 全套喷头 热敏电阻 M3螺母 Hotend Thermistor 1Pcs 1Pcs M2 hex key 2Pcs 0.6mm喷嘴 M3六角扳手 转接头 0.6mm nozzle M3 hex key 1Pcs 1Pcs Open end wrench 1Pcs M2六角扳手 M3*20螺丝 M2 hex key M3*20 screw 1Pcs 4Pcs 开口扳手 扎带 Open end wrenchs Cable Ties 1Pcs 5Pcs...
- Page 4 2.将风扇安装到与Spider 高温高流量喷头适配的风扇罩上，风扇罩打印模型下载地址：https://vip.creali- ty.com/en/goods-detail/1195 Download，或者联系经销商； 2. Install the fan on the fan cover that is compatible with the Spider's high temperature and high flow nozzle. The download address of the fan cover printing model is: https://vip.crea- ity.com/en/goods-detail/1195 Download, or contact the dealer;...
- Page 5 量喷头套件附带； 4. Install the heating tube and thermistor to the Spider high temperature and high flow nozzle (it needs to be fixed with M3 screws), the thermistor is attached to the Spider high temperature and high flow nozzle kit; 5.取下喷头套件顶部转接头，用螺丝固定Spider高温高流量喷头到3D打印机上（根据3D打印机具体结构方...
- Page 6 7.取下蓝色线夹，插入铁氟龙管，再次装上线夹固定； 7. Remove the blue wire clip, insert the Teflon tube, and install the wire clip again to fix it; 8.将热敏电阻线与主板端连接——如果热敏电阻线长不够，或者端子不匹配，可以利用原装的热敏电阻线或 者端子改装，如Ender-5系列机型； 8. Connect the thermistor wire to the motherboard end - if the thermistor wire is not long enough or the terminals do not match, you can use the original thermistor wire or terminal to modify, such as Ender-5 series models;...
- Page 7 9.调整喷嘴与打印平台之间的距离，使喷嘴尖头与平台距离0.1mm。可以通过调节Z轴限位开关位置与调平 螺母实现，调平后开始打印; 9.Adjust the distance between the nozzle and the printing platform so that the distance between the nozzle tip and the platform is 0.1mm. It can be achieved by adjusting the position of the Z-axis limit switch and the leveling nut. After leveling, start printing;...
- Page 8 1.由于Spider 高温高流量喷头整体产品长度大于原装喷头，为了达到更好的散热效果，需要安装与之匹配 的风扇罩，该风扇罩可以安装BLTouch 或者CR Touch，风扇罩模型下载地址如下。 Since the overall product length of the Spider High-temperature and High-speed Hotend is longer than the original nozzle, in order to achieve better heat dissipation, it is necessary to install a matching fan cover. The fan cover can be installed with BLTouch or CR Touch. The download address of the fan cover model is as follows: https://vip.creality.com/en/goods-de-...
- Page 9 For specific replacement steps, please refer to the video, the video link address: https://vip.creality.com/en/goods-detail/1195. Video Creality Vip Mall 官网二维码 Creality Vip Mall Official Website QR Code...
