Mount-It! MI-5761 Installation Manual

Use with products heavier than the rated weights indicated may result in instability causing possible injury.
Please closely follow the assembly instructions. Improper installation may result in damage or serious personal injury.
Safety gear and proper tools must be used. This product should only be installed by professionals.
Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.
Use the mounting screws provided and DO NOT OVER TIGHTEN mounting screws.
This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.
This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.
Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, contact your place of
purchase for a replacement.
Check that the product is secure and safe to use at regular intervals (at least every three months).
6

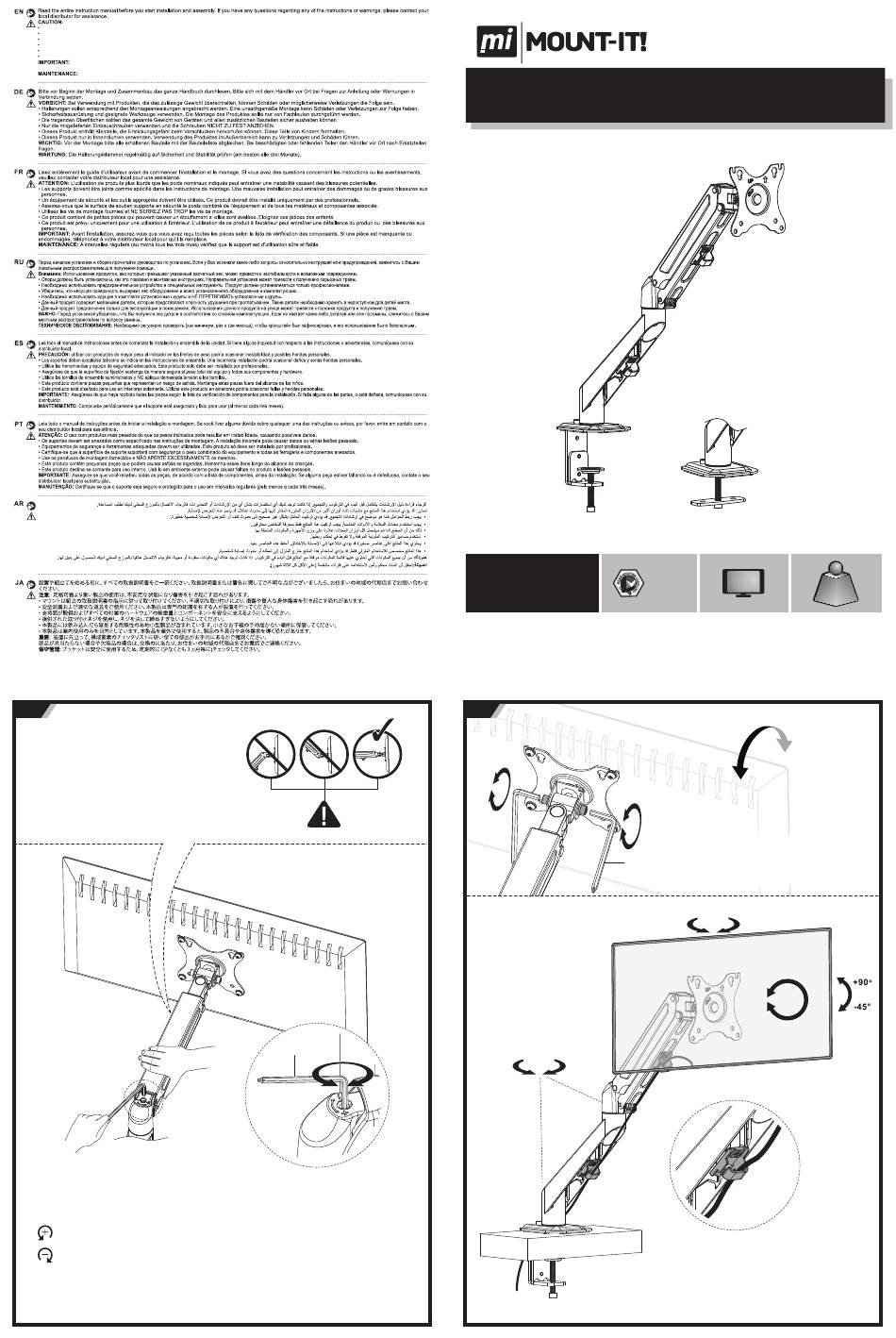

Be sure to keep the arm in horizontal position during
adjustment. Or else, it would be difficult to adjust the
mount or damage the mount.
Once the monitor is attached to the arm, use the supplied Allen Key and turn in the appropriate
direction to increase or decrease tension as necessary.
Heavier display turns counter-clockwise.
Lighter display turns clockwise.
Adjust the tension of the gas spring until the display holds its position when you let it go.
(Note: DO NOT over tighten screw.)
H
Counterbalance Monitor Arm
MI-5761
VISIT US AT MOUNT-IT.COM FOR PRODUCT REGISTRATION AND WARRANTY INFORMATION.
CONTACT US AT SUPPORT@MOUNT-IT.COM OR 855-925-5668 FOR QUESTIONS OR COMMENTS.
7
H
±180° ±180°
INSTALLATION MANUAL
27"
75x75
100x100
MAX
(4.4-14.3lbs)
-45°
+90°
Adjust to the desired angle then tighten
the screws using the Allen key as shown,
alternating from each screw as you
tighten them.
±90° ±90°
±180° ±180°
2-6.5kg
RATED
