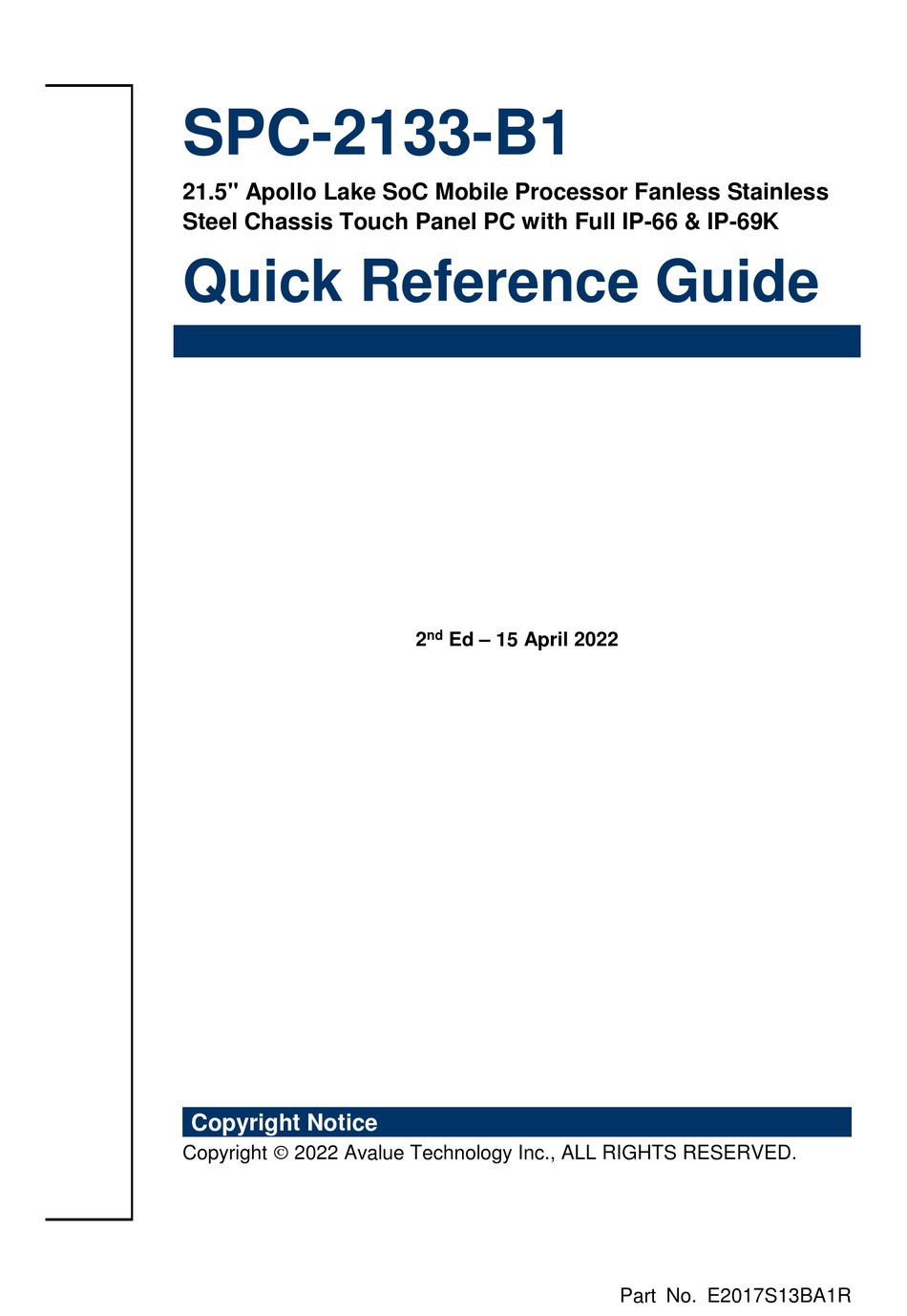

- Page 1 21.5" Apollo Lake SoC Mobile Processor Fanless Stainless Steel Chassis Touch Panel PC with Full IP-66 & IP-69K Quick Reference Guide Ed – 15 April 2022 Copyright Notice Copyright 2022 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017S13BA1R...
- Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 SPC-2133-B1 Quick Reference Guide...
-
Page 3: Table Of Contents
1.4.1 Bottom View ........................... 10 1.5 System Dimensions ....................11 Hardware Configuration ..................12 2.1 SPC-2133-B1 connector mapping ................13 2.1.1 Waterproof M12 8-pin (male) for 2 x USB 2.0 (USB) ............13 2.1.2 Waterproof M12 8-pin (male) COM1(RS-232(default)/422/485) (COM) ....... 13 2.1.3... - Page 4 Serial Port Console Redirection ..................48 3.6.2.7 CPU Configuration ......................48 3.6.2.7.1 Socket 0 CPU Information ....................49 3.6.2.7.2 CPU Power Management Configuration ................50 3.6.2.8 Network Stack Configuration ..................... 51 3.6.2.9 CSM Configuration ......................52 4 SPC-2133-B1 Quick Reference Guide...
- Page 5 4.2 Install VGA Driver ....................72 4.3 Install Serial IO Driver ..................... 73 4.4 Install TXE Driver ....................74 4.5 Install Audio Driver (For Realtek ALC662 HD Audio) ..........75 4.6 Install LAN Driver (For Intel I211AT) ............... 76 SPC-2133-B1 Quick Reference Guide...
-
Page 6: Getting Started
1.2 Packing List 1 x SPC-2133-B1 Stainless Steel Panel PC (without adapter) * Note(Suggestion accessory when adapter needed): ACC-ADP-060N-09R (AC/DC adapter 24V/2.5A 90 Plug Type) E170W050030R (Waterproof M12 DC Cable (M12/3Pin- D2.5DC-Plug 200cm)) -
Page 7: System Specifications
USB device, it will cause USB +5V to drop under 4.75V) LAN Port 1 x M12 8-pin (male) for LAN with waterproof cover and chain Wireless LAN Antenna Optional Wi-Fi with PCB type antenna with waterproof cover Others 1 x IP66 Air pressure relief valve SPC-2133-B1 Quick Reference Guide... - Page 8 2 Test frequency : 5~500 Hz 3 Test axis : X,Y and Z axis 4 Test time : 30 minutes per each axis 5 IEC 60068-2-64 Test Fh Mechanical Shock 1 Wave from : Half Sine wave 8 SPC-2133-B1 Quick Reference Guide...
- Page 9 Operating -10°C ~ 45°C (14°F ~ 113°F), by flow = 0.5 Temperature Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F) Note: Specifications are subject to change without notice. SPC-2133-B1 Quick Reference Guide...
-
Page 10: System Overview
Waterproof M12 8-pin (male) COM1(RS-232(default)/422/485) Waterproof M12 8-pin (male) for 2 x USB 2.0 Waterproof M12 8-pin (male) for LAN DC IN Waterproof M12 3-pin (male) for DC power POWER System power indicator ALTW Air Vent Value 10 SPC-2133-B1 Quick Reference Guide... -
Page 11: System Dimensions
Quick Reference Guide 1.5 System Dimensions (Unit: mm) SPC-2133-B1 Quick Reference Guide 11... -
Page 12: Hardware Configuration
SPC-2133-B1 2. Hardware Configuration For advanced information, please refer to: 1- EMX-APLP included in this manual. Note: If you need more information, please visit our website: http://www.avalue.com.tw 12 SPC-2133-B1 Quick Reference Guide... -
Page 13: Spc-2133-B1 Connector Mapping
USB1 5V USB2 5V 2.1.2 Waterproof M12 8-pin (male) COM1(RS-232(default)/422/485) (COM) M12 I/O (8-pin) Front View Pin Assignments RS-232/422/485 DCD / 422R+ RXD / 422R- TXD / 422T- / 485- DTR / 422T+ / 485+ SPC-2133-B1 Quick Reference Guide 13... -
Page 14: Waterproof M12 8-Pin (Male) For Lan (Lan)
M12 I/O (8-pin) Front View Pin Assignments Pin Define LAN1_0+ LAN1_0- LAN1_1+ LAN1_1- LAN1_2+ LAN1_2- LAN1_3+ LAN1_3- 2.1.4 Waterproof M12 3-pin (male) for DC power (DC IN) M12 DC-in(3-pin) Front View Pin Assignments Pin Define 14 SPC-2133-B1 Quick Reference Guide... -
Page 15: Emx-Aplp Product Overview
Quick Reference Guide 2.2 EMX-APLP Product Overview SPC-2133-B1 Quick Reference Guide 15... - Page 16 SPC-2133-B1 16 SPC-2133-B1 Quick Reference Guide...
-
Page 17: Emx-Aplp Jumper And Connector List
Label Function Note FAN1 CPU fan connector 4 x 1 wafer, pitch 2.54mm FPT1 Front Panel connector 1 5 x 2 header, pitch 2.54mm FPT2 Front Panel connector 2 5 x 2 header, pitch 2.54mm SPC-2133-B1 Quick Reference Guide 17... - Page 18 Mini-PCIe connector 1 5 x 2 header, pitch 2.00mm JLPC1 LPC connector PWR1 Power connector 2 x 2 wafer, pitch 4.20mm SATA1/2 Serial ATA connector 1/2 SPWR1/2 SATA Power connector 1/2 4 x 1 wafer, pitch 2.54mm 18 SPC-2133-B1 Quick Reference Guide...
- Page 19 DCIN1 I2C1 I2C connector 5 x 1 header, pitch 2.00mm HDMI1 HDMI connector LOUT1 Line-out audio jack MIC1 Mic-in audio jack DMIC1 Digital Microphone connector 5 x 1 header, pitch 2.54mm SIM1 SIM card slot SPC-2133-B1 Quick Reference Guide 19...
-
Page 20: Emx-Aplp Setting Jumpers & Connectors
2.4.2 SATA2/MSATA1 mPCIe slot selector (JMSW1) SATA2 Connector* (SATA2 Connector enabled, MSATA1 slot Disabled) MSATA1 mPCIe slot (MSATA1 slot enabled, SATA2 Connector Disabled) * Default Note: SATA2/MSATA1 shared SATA signal, can not be used simultaneously. 20 SPC-2133-B1 Quick Reference Guide... -
Page 21: Lvds Back Light Power Selection (Jsbkl1)
Quick Reference Guide 2.4.3 LVDS Back Light power selection (JSBKL1) PWM Mode*(Max current: 2A) DC Mode(Max current: 2A) * Default 2.4.4 AT/ATX Power Mode Select (JSATX1) ATX* * Default SPC-2133-B1 Quick Reference Guide 21... -
Page 22: Clear Cmos (Cmos1)
SPC-2133-B1 2.4.5 Clear CMOS (CMOS1) Protect* Clear CMOS * Default 2.4.6 LCD Inverter connector (JBKL1) Signal +12V LVDS_BKLTEN LVDS_BKLADJ 22 SPC-2133-B1 Quick Reference Guide... -
Page 23: Serial Port 1/2 Connector (Com1/2)
Quick Reference Guide 2.4.7 Serial port 1/2 connector (COM1/2) COM1 COM2 Signal PIN PIN Signal 2.4.8 Serial port 3/4/6 connector (COM3/4/6) Signal PIN PIN Signal SPC-2133-B1 Quick Reference Guide 23... -
Page 24: Serial Port 5 Connector (Com5)
SPC-2133-B1 2.4.9 Serial port 5 connector (COM5) Signal PIN PIN Signal NDCD# NRXD NTXD NDTR# NDSR# NRTS# NCTS# NRI# 2.4.10 Serial Port 1 RS485/422 Mode connector (JRS485) Signal PIN PIN Signal 485TX- 422RX- 485TX+ 422RX+ 24 SPC-2133-B1 Quick Reference Guide... -
Page 25: General Purpose I/O Connector (Dio1)
Quick Reference Guide 2.4.11 General purpose I/O connector (DIO1) Signal PIN PIN Signal SMB_CLK SMB_DATA 2.4.12 SATA Power connector 1/2 (SPWR1/2) SPWR1 SPWR2 Signal +V5S_SATA +V12S_SATA SPC-2133-B1 Quick Reference Guide 25... -
Page 26: Power Connector (Pwr1)
SPC-2133-B1 2.4.13 Power connector (PWR1) Signal Signal +V12-24_DCIN +V12-24_DCIN 2.4.14 USB2.0 connector (USB3) Signal Signal +5VSB +5VSB USBDN4 USBDN5 USBDP4 USBDP5 26 SPC-2133-B1 Quick Reference Guide... -
Page 27: Usb2.0 Connector (Usbh1)
Quick Reference Guide 2.4.15 USB2.0 connector (USBH1) Signal Signal +5VSB +5VSB USB_HDN1 USB_HDN2 USB_ HDP1 USB_ HDP2 2.4.16 USB2.0 connector (USBH2) Signal USB_ HDP4 USB_HDN4 +5VSB SPC-2133-B1 Quick Reference Guide 27... -
Page 28: Lvds Connector (Lvds1)
LVDS_DATAN1 11 12 LVDS_DATAN0 LVDS_DATAP3 15 16 LVDS_DATAP2 LVDS_DATAN3 17 18 LVDS_DATAN2 LVDS_DATAP5 21 22 LVDS_DATAP4 LVDS_DATAN5 23 24 LVDS_DATAN4 LVDS_DATAP7 27 28 LVDS_DATAP6 LVDS_DATAN7 29 30 LVDS_DATAN6 LVDS_CLK2P LVDS_CLK1P LVDS_ CLK2N LVDS_ CLK1N +12V +12V 28 SPC-2133-B1 Quick Reference Guide... -
Page 29: Battery Connector (Bt1)
Front Audio connector (FAUD1) Signal PIN PIN Signal LINE2_JD LINE2_L SENSE_B MIC2_JD LINE2_R AUD_FRONT_DET MIC2_R MIC2_L 2.4.19.1 Signal Description –Front Audio connector (FAUD1) Signal Signal Description LINE2_JD AUDIO IN (LINE_RIN/LIN)sense pin MIC2_JD MIC IN (MIC_RIN/LIN) sense pin SPC-2133-B1 Quick Reference Guide 29... -
Page 30: Lpc Connector (Jlpc1)
SPC-2133-B1 2.4.20 LPC connector (JLPC1) Signal PIN PIN Signal LPC_AD0 +3.3V LPC_AD1 PLT_RST# LPC_AD2 LPC_FRAME# LPC_AD3 LPC_CLK_DEB LPC_SERIRQ 2.4.21 EC_Program (EC1) Signal PIN PIN Signal +3.3A_ECSPI EC_FSCE# EC_FSCK EC_FSMIOSO EC_FSMOSI EC_HOLD# EC_SMBCLK EC_SMBDATA 30 SPC-2133-B1 Quick Reference Guide... -
Page 31: Spi Connector (Spi1)
Quick Reference Guide 2.4.22 SPI connector (SPI1) Signal PIN PIN Signal +1.8VSB SPI_CS0# SPI_CLK SPI_MISO SPI_MOSI SPI_HOLD# 2.4.23 Sony/Philips Digital Interface (SPDIF1) Signal SPDIF_OUT SPC-2133-B1 Quick Reference Guide 31... -
Page 32: Speaker Connector (Spk1)
SPC-2133-B1 2.4.24 Speaker connector (SPK1) Signal RSPK- RSPK+ LSPK- LSPK+ 2.4.25 Front Panel connector 1 (FPT1) Signal PIN PIN Signal +HD_LED +PWR_LED -HD_LED -PWE_LED +Reset +PWR_BNT -Reset -PWR_BNT 32 SPC-2133-B1 Quick Reference Guide... -
Page 33: Front Panel Connector 2 (Fpt2)
2. BLK_UP with GND/BLK_DN with GND: Step control LVDS Backlight by use button and BIOS must to be set “BR Button”. (Please refer to page.58) 2.4.27 LED indicator connector 1 (LED1) Signal L1_1000#_LED L1_100#_LED L1_ACT_N L1_ACT_P SPC-2133-B1 Quick Reference Guide 33... -
Page 34: Led Indicator Connector 2 (Led2)
SPC-2133-B1 2.4.28 LED indicator connector 2 (LED2) Signal L2_1000#_LED L2_100#_LED L2_ACT_N L2_ACT_P 2.4.29 CPU fan connector (FAN1) Signal +12V CPU_FANIN CPU_FANOUT 34 SPC-2133-B1 Quick Reference Guide... -
Page 35: Digital Microphone Connector (Dmic1)
Quick Reference Guide 2.4.30 Digital Microphone connector (DMIC1) Signal DMIC_CLK DMIC_DAT +3.3VSB 2.4.31 eDP connector (EDP1) Signal PIN PIN Signal EDP_TXN0 EDP_TXN3 EDP_TXP0 EDP_TXP3 EDP_TXN1 EDP_TXP1 EDP_AUXN EDP_AUXP EDP_TXN2 EDP_TXP2 EDP_C_HPD EDP_VCC_PAL 19 20 EDP_VCC_PAL SPC-2133-B1 Quick Reference Guide 35... -
Page 36: I2C Connector (I2C1)
SPC-2133-B1 2.4.32 I2C connector (I2C1) Signal +3.3V I2C5_INT# I2C5_LS_CLK I2C5_LS_DATA 36 SPC-2133-B1 Quick Reference Guide... -
Page 37: Bios Setup
Quick Reference Guide 3.BIOS Setup SPC-2133-B1 Quick Reference Guide 37... -
Page 38: Introduction
If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to. Press F1 to Continue, DEL to enter SETUP 38 SPC-2133-B1 Quick Reference Guide... -
Page 39: Using Setup
Note: Some of the navigation keys differ from one screen to another. To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. SPC-2133-B1 Quick Reference Guide 39... -
Page 40: Getting Help
BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. 40 SPC-2133-B1 Quick Reference Guide... -
Page 41: Bios Setup
<Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. SPC-2133-B1 Quick Reference Guide 41... -
Page 42: System Language
Visit the Avalue website (www.avalue.com.tw) to download the latest product and BIOS information. 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. 42 SPC-2133-B1 Quick Reference Guide... -
Page 43: Trusted Computing
INT1Ainterface will not be available. 3.6.2.2 ACPI Settings Item Options Description Enables or Disables System ability to Disabled Enable Hibernation Hibernate (OS/S4 Sleep State). This Enabled[Default], option may be not effective with some SPC-2133-B1 Quick Reference Guide 43... -
Page 44: It8528 Super Io Configuration
You can use this item to set up or change the IT8528 Super IO configuration for serial ports. Please refer to 3.6.2.3.1 for more information. Item Description Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA). 44 SPC-2133-B1 Quick Reference Guide... -
Page 45: Serial Port 1 Configuration
Enable or Disable Serial Port (COM). Disabled UART 232[Default], UART 232 422 485 UART 422, Change the Serial Port as RS232/422/485. UART 485 3.6.2.4 H/W Monitor Item Options Description Enabled, Smart Fan Function Enable or Disable Smart Fan. Disabled[Default] SPC-2133-B1 Quick Reference Guide 45... -
Page 46: Smart Fan Mode Configuration
02/Mode 03/Mode 04/Mode 05/Mode 06/Mode CPU Smart Fan Mode 07/Mode 08/Mode 09/Mode 10/Mode 11/Mode CPU Smart Fan Mode Select. 12/Mode 13/Mode 14/Mode 15/Mode 16/Mode 17/Mode 18/Mode 19/Mode 20 Fan PWM 0-255 Fan PWM duty. 3.6.2.5 S5 RTC Wake Settings 46 SPC-2133-B1 Quick Reference Guide... - Page 47 15 for 3pm. Select 0-23 For example enter 3 for 3am and Wake up minute 0-23 15 for 3pm. Select 0-23 For example enter 3 for 3am and Wake up second 0-23 15 for 3pm. SPC-2133-B1 Quick Reference Guide 47...
-
Page 48: Serial Port Console Redirection
SPC-2133-B1 3.6.2.6 Serial Port Console Redirection Item Options Description Disabled[Default], Console Redirection Console Redirection Enable or Disable. Enabled 3.6.2.7 CPU Configuration Use the CPU configuration menu to view detailed CPU specification and configure the CPU. 48 SPC-2133-B1 Quick Reference Guide... -
Page 49: Socket 0 Cpu Information
Disabled, Thermal Monitor Enable/Disable Thermal Monitor. Enabled[Default] Disabled, Monitor Mwait Enabled Enable/Disable Monitor Mwait. Auto[Default] HW_ALL[Default] P-STATE Coordination SW_ALL Change P-STATE Coordination type. SW_ANY Disabled[Default], Enable/Disable Digital Thermal Sensor. Enabled 3.6.2.7.1 Socket 0 CPU Information SPC-2133-B1 Quick Reference Guide 49... -
Page 50: Cpu Power Management Configuration
This option controls the Max Core C State that Max Core C State Core C7 cores will support. Core C6 Core C1 Unlimited Disabled C-State Auto Demotion Configure C-State Auto Demotion. C1[Default] Disabled C-State Un-demotion Configure C-State Un-demotion. C1[Default] 50 SPC-2133-B1 Quick Reference Guide... -
Page 51: Network Stack Configuration
IPV6 HTTP boot option will not be created. Wait time to press ESC key to abort the PXE PXE boot wait time boot. Number of times presence of media will be Media detect count checked. SPC-2133-B1 Quick Reference Guide 51... -
Page 52: Csm Configuration
Network UEFI PXE OpROM. Legacy Do not launch[Default] Controls the execution of UEFI and Legacy Storage UEFI Storage OpROM. Legacy Do not launch Controls the execution of UEFI and Legacy Video UEFI Video OpROM. Legacy[Default] 52 SPC-2133-B1 Quick Reference Guide... -
Page 53: Nvme Configuration
Determines OpROM execution policy for Other PCI devices UEFI devices other than Network, Storage, or Legacy[Default] Video. 3.6.2.10 NVMe Configuration 3.6.2.11 USB Configuration The USB Configuration menu helps read USB information and configures USB settings. SPC-2133-B1 Quick Reference Guide 53... -
Page 54: Security Configuration
Root port it is 100ms, for a Hub port the delay is taken form Hub descriptor. 3.6.2.12 Security Configuration Item Options Description Enabled, TXE HMRFPO TXE HMRFPO. Disabled[Default] Enabled[Default], TXE EOP Message Send EOP Message Before Enter OS. Disabled 54 SPC-2133-B1 Quick Reference Guide... -
Page 55: System Component
Quick Reference Guide 3.6.2.13 System Component Item Options Description Warm Reset OS Reset Select Select the reset type in FACP table. Cold Reset[Default] 3.6.3 Chipset SPC-2133-B1 Quick Reference Guide 55... -
Page 56: North Bridge
2.25 GB Max TOLUD Maximum Value of TOLUD. 2.5 GB 2.75 GB Enable/Disable above 4GB MemoryMappedIO Above 4GB MMIO BIOS Enabled, BIOS assignment. This is disabled assignment Disabled[Default] automatically when Aperture Size is set to 2048MB. 56 SPC-2133-B1 Quick Reference Guide... -
Page 57: South Bridge
Quick Reference Guide 3.6.3.2 South Bridge Item Option Description Quiet Serial IRQ Mode Configure Serial IRQ Mode. Continuous[Default] Windows[Default] OS Selection Android Select the target OS. Intel Linux 3.6.3.3 Uncore Configuration SPC-2133-B1 Quick Reference Guide 57... - Page 58 BR Button Brightness Control Method 2.Brightness Button 3.Variable Resistor 4.OS Driver. OS Driver LVDS Back Light PWM Select LVDS back light PWM duty. 100%[Default] 200[Default] LVDS Back Light PWM Select LVDS back light PWM Frequency. Frequency 58 SPC-2133-B1 Quick Reference Guide...
-
Page 59: South Cluster Configuration
Quick Reference Guide 3.6.3.4 South Cluster Configuration 3.6.3.4.1 HD-Audio Configuration Item Option Description Disable[Default] HD-Audio Support Enable/Disable HD-Audio Support. Enable 11db 14db[Default] AMP Gain Setting Select AMP Gain db. 19db 25db SPC-2133-B1 Quick Reference Guide 59... -
Page 60: Pci Express Configuration
SPC-2133-B1 3.6.3.4.2 PCI Express Configuration Item Option Description Disable[Default] Compliance Mode Compliance Mode Enable/Disable. Enable PCIe slot PCIe port5-Slot or M.2 select PCIe port5 mapping to PCIe slot or M.2. M.2[Default], 60 SPC-2133-B1 Quick Reference Guide... -
Page 61: Pci Express Root Port 3(I210/211)
Disable[Default] PCI Express Active State Power ASPM Management settings. L0sL1 Auto Disabled[Default] L1.1 L1 Substates PCI Express L1 Substates settings. L1.2 L1.1 & L1.2 Auto[Default] PCIe Speed Gen 1 Configure PCIe Speed. Gen 2 SPC-2133-B1 Quick Reference Guide 61... -
Page 62: Pci Express Root Port 5(M.2/Pcie Slot)
Disable[Default] PCI Express Active State Power ASPM Management settings. L0sL1 Auto Disabled[Default] L1.1 L1 Substates PCI Express L1 Substates settings. L1.2 L1.1 & L1.2 Auto[Default] PCIe Speed Gen 1 Configure PCIe Speed. Gen 2 62 SPC-2133-B1 Quick Reference Guide... -
Page 63: Pci Express Root Port 6(Mpcie)
Disable[Default] PCI Express Active State Power ASPM Management settings. L0sL1 Auto Disabled[Default] L1.1 L1 Substates PCI Express L1 Substates settings. L1.2 L1.1 & L1.2 Auto[Default] PCIe Speed Gen 1 Configure PCIe Speed. Gen 2 SPC-2133-B1 Quick Reference Guide 63... -
Page 64: Sata Drives
Identify the SATA port is connected to Solid SATA Device Type Solid State Drive State Driver or Hard Disk Drive. Disabled[Default] Enable/Disable SATA Port 0/1 DevSlp. Board SATA Port 0/1 DevSlp Enabled rework for LP needed before enable. 64 SPC-2133-B1 Quick Reference Guide... -
Page 65: Scc Configuration
Quick Reference Guide 3.6.3.4.4 SCC Configuration Item Option Description Disable[Default], SCC eMMC Support (D28:F0) Enable/Disable SCC eMMC Support. Enable 3.6.3.4.5 USB Configuration Item Option Description Disable[Default], Enable/Disable XHCI Pre-Boot Driver XHCI Pre-Boot Driver Enable Support. SPC-2133-B1 Quick Reference Guide 65... -
Page 66: Dmi
SPC-2133-B1 3.6.3.6 DMI Item Option Description Disable[Default], SHOW DMI INF0 SHOW DMI INF0 Enable 3.6.4 Security 66 SPC-2133-B1 Quick Reference Guide... -
Page 67: Secure Boot
Secure Boot Mode –Custom_Standard, Set UEFI Secure Secure Boot Standard Boot Mode to STANDARD mode or CUSTOM mode or Customization Custom[Default] CUSTOM mode, this change is effect after save. And after reset, the mode will return to STANDARD mode. SPC-2133-B1 Quick Reference Guide 67... -
Page 68: Boot
1~ 65535 activation key. 65535(0xFFFF) means indefinite waiting. On[Default] Bootup NumLock State Select the Keyboard NumLock state Disabled[Default] Quiet Boot Enables or disables Quiet Boot option Enabled Boot Option #1 Set the system boot order. 68 SPC-2133-B1 Quick Reference Guide... -
Page 69: Save And Exit
This option restores all BIOS settings to the factory default. This option is useful if the controller exhibits unpredictable behavior due to an incorrect or inappropriate BIOS setting. 3.6.6.4 Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shellx64.efi) from one of the available filesystem devices. SPC-2133-B1 Quick Reference Guide 69... -
Page 70: Drivers Installation
SPC-2133-B1 4. Drivers Installation Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. 70 SPC-2133-B1 Quick Reference Guide... -
Page 71: Install Chipset Driver
Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step 3. Click Install. Step 4. Click Finish to complete setup. Step1. Click Next. Step 2. Click Accept. SPC-2133-B1 Quick Reference Guide 71... -
Page 72: Install Vga Driver
Continue to go on. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Next. Step 5. Click Finish to complete setup. Step 2. Click Yes to accept license agreement. 72 SPC-2133-B1 Quick Reference Guide... -
Page 73: Install Serial Io Driver
Continue to go on. Step 3. Click Next. Step 4. Click Next. Step 1. Click Next to continue setup. Step 5. Click Finish to complete the Step 2. Click Next. setup. SPC-2133-B1 Quick Reference Guide 73... -
Page 74: Install Txe Driver
If the warning message appears while the installation process, click Continue to go on. Step 3. Click Next. Step 4. Click Finish to complete the Step 1. Click Next to continue setup. setup. Step 2. Click Next. 74 SPC-2133-B1 Quick Reference Guide... -
Page 75: Install Audio Driver (For Realtek Alc662 Hd Audio)
Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step1. Click Next to Install. Step 2. Select Finish to complete Installation. SPC-2133-B1 Quick Reference Guide 75... -
Page 76: Install Lan Driver (For Intel I211At)
If the warning message appears while the installation process, click Continue to go on. Step 3. Click Next. Step 4. Click Next. Step 1. Click Install Drivers and Software. Step 5. Click Yes. Step 2. Click Next. 76 SPC-2133-B1 Quick Reference Guide... - Page 77 Quick Reference Guide Step 6. Click Install. Step 7. Click Finish to complete setup. SPC-2133-B1 Quick Reference Guide 77...
