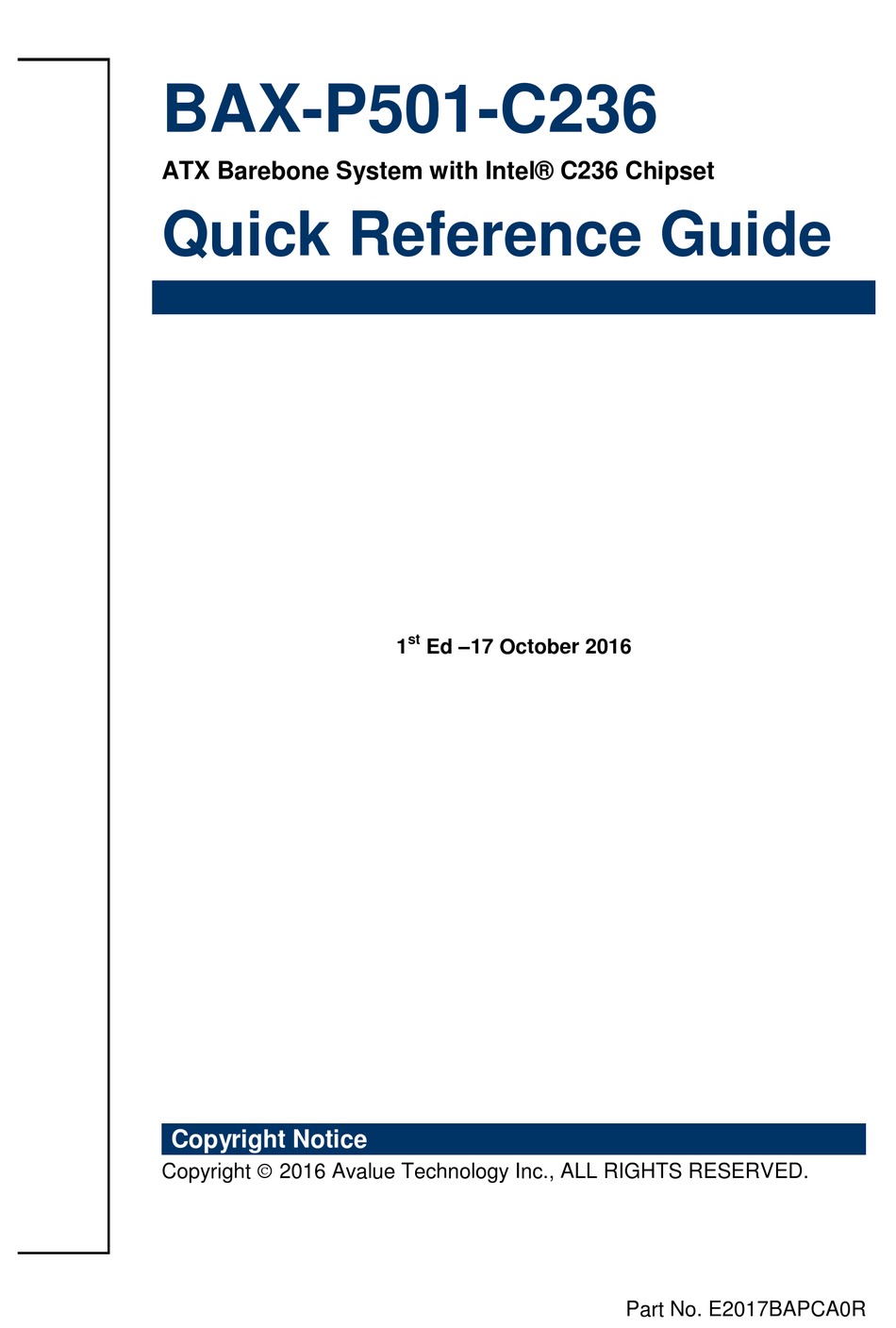

- Page 1 BAX-P501-C236 ATX Barebone System with Intel® C236 Chipset Quick Reference Guide Ed –17 October 2016 Copyright Notice Copyright 2016 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017BAPCA0R...
- Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
-
Page 3: Table Of Contents
System Specifications ................... 5 System Overview ....................8 1.4.1 Front/Rear View ........................... 8 System Dimensions ..................... 10 Hardware Configuration ................... 11 BAX-P501-C236 connector mapping ..............12 2.1.1 Serial port 1/3/4/5/6 connector (COM1/3/4/5/6) ................. 12 2.1.2 Serial port 2 connector (COM2) ....................12 2.1.3 VGA connector (VGA) ........................ -
Page 4: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x BAX-P501-C236 ATX Barebone System with Intel® C236 Chipset Other major components include the followings: ... -
Page 5: System Specifications
Power on/off button, Reset button Mechanical Power Type Power Connector Type AC power socket 7.7” (W) x 17.7” (D) x 13” (H) Dimension (196mm x 450mm x 330mm) Weight 30.8 lb/14 kg BAX-P501-C236 Quick Reference Guide... - Page 6 Mechanical Shock Test Duration Time：11ms No. of Shock：Z axis 300 times Test Axis: Z axis System condition : operation (running burn in test program ) Drop Test Packing Drop 6 BAX-P501-C236 Quick Reference Guide...
- Page 7 Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F) Note: Specifications are subject to change without notice. BAX-P501-C236 Quick Reference Guide...
-
Page 8: System Overview
BAX-P501-C236 1.4 System Overview 1.4.1 Front/Rear View Connectors Label Function Note RESET Reset button HDD Indicator 8 BAX-P501-C236 Quick Reference Guide... - Page 9 LAN1/2 RJ-45 Ethernet 1/2 COM1~6 Serial port 1~6 connector PS/2 COMBO JACK PS/2 keyboard & mouse connector HDMI connector HDMI Line-out audio jack LINE-OUT LINE-IN Line-in audio jack MIC-IN Mic-in audio jack VGA connector DP connector BAX-P501-C236 Quick Reference Guide...
-
Page 10: System Dimensions
BAX-P501-C236 1.5 System Dimensions (Unit: mm) 10 BAX-P501-C236 Quick Reference Guide... -
Page 11: Hardware Configuration
Quick Reference Guide 2. Hardware Configuration For advanced information, please refer to: 1- EAX-C236P User’s Manual Note: If you need more information, please visit our website: http://www.avalue.com.tw BAX-P501-C236 Quick Reference Guide 11... -
Page 12: Bax-P501-C236 Connector Mapping
Serial port 2 connector (COM2) RS-232 Mode Signal PIN PIN Signal NDCD# NDSR# NRXD NRTS# NTXD NCTS# NDTR# JNRI# RS-485 Mode Signal PIN PIN Signal 485TX- RS-422 Mode Signal PIN PIN Signal 485TX+ 485TX- 422RX- 485TX+ 422RX+ 12 BAX-P501-C236 Quick Reference Guide... -
Page 13: Vga Connector (Vga)
Quick Reference Guide 2.1.3 VGA connector (VGA) Signal PIN Signal PIN Signal GREEN 12 DDCDAT BLUE HSYNC VSYNS DDCCLK BAX-P501-C236 Quick Reference Guide 13...
