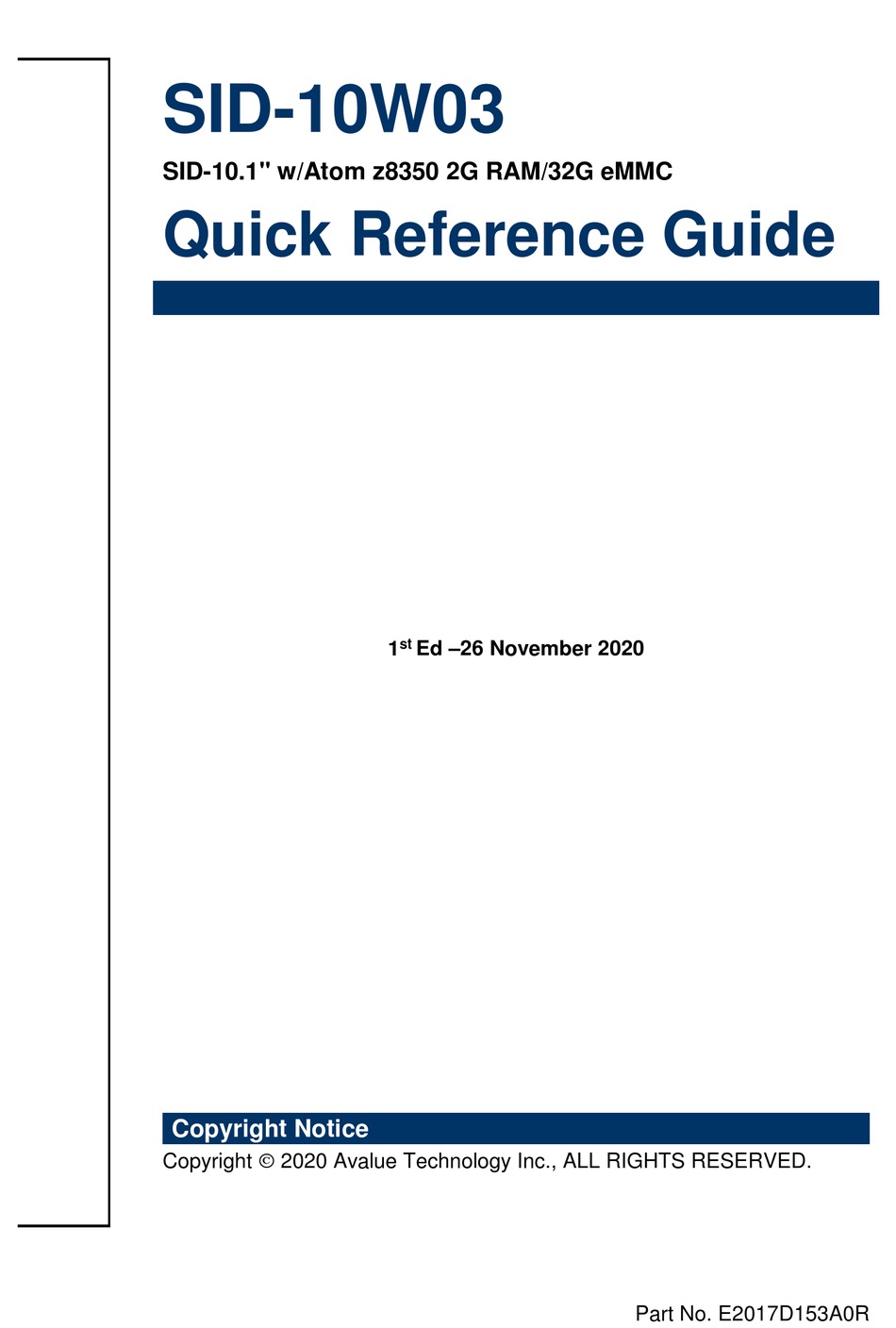

- Page 1 SID-10W03 SID-10.1" w/Atom z8350 2G RAM/32G eMMC Quick Reference Guide Ed –26 November 2020 Copyright Notice Copyright 2020 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017D153A0R...
- Page 2 (2) Use only shielded cables to connect I/O devices to this equipment. (3) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 SID-10W03 Quick Reference Guide...
- Page 3 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 4 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
-
Page 5: Table Of Contents
System Specifications ................... 7 System Overview ....................10 1.4.1 I/O View ............................10 System Dimensions ..................... 11 Hardware Configuration ................... 12 SID-10W03 connector mapping................13 2.1.1 Serial port connector (COM) ...................... 13 2.1.2 RJ-45 Ethernet connector (LAN) ....................13 2.1.3 HDMI connector (HDMI) ...................... -
Page 6: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x SID-10W03 Panel PC 1 x AC/DC adapter 12V/5A 90 Screw Type ... -
Page 7: System Specifications
1 x SMA type connector for dipole antenna Power Requirement/Mechanical Power Type 12V~24V DC-Input Power Connector 2.5mm DC-in jack Type Construction Metal Color Black Dimension 255.2 x 169.4 x 40.7mm Weight 1.36 kg Fanless IP Rating Front IP65 Reliability SID-10W03 Quick Reference Guide... - Page 8 2. Packing weight: around 1.5kg 3. Test high: 96.5cm (Based on product weight Operating 0°C ~ 40°C (32°F ~ 104°F) Temperature Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F) 8 SID-10W03 Quick Reference Guide...
- Page 9 Quick Reference Guide Note: Specifications are subject to change without notice. SID-10W03 Quick Reference Guide...
-
Page 10: System Overview
Audio line-out connector Head phone jack HDMI HDMI connector HDMI type A USB2.0 2 x USB2.0 connector USB3.0 USB3.0 connector DC power-in connector DC jack DCIN RJ-45 Ethernet connector Serial port connector DB-9 male connector 10 SID-10W03 Quick Reference Guide... -
Page 11: System Dimensions
Quick Reference Guide 1.5 System Dimensions (Unit: mm) SID-10W03 Quick Reference Guide 11... -
Page 12: Hardware Configuration
SID-10W03 2. Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw 12 SID-10W03 Quick Reference Guide... -
Page 13: Sid-10W03 Connector Mapping
Quick Reference Guide 2.1 SID-10W03 connector mapping 2.1.1 Serial port connector (COM) Signal PIN PIN Signal 2.1.2 RJ-45 Ethernet connector (LAN) Signal SID-10W03 Quick Reference Guide 13... -
Page 14: Hdmi Connector (Hdmi)
SID-10W03 2.1.3 HDMI connector (HDMI) Signal PIN PIN Signal HDMI_P2 HDMI_N2 HDMI_P1 HDMI_N1 HDMI_P0 HDMI_N0 HDMI_CLKP HDMI_CLKN HDMI_CTRL_CLK 15 16 HDMI_CTRL_DAT 2.1.4 USB2.0 connector (USB2.0) Signal USB_JUSB2_N USB_JUSB2_P 14 SID-10W03 Quick Reference Guide... -
Page 15: Usb3.0 Connector (Usb3.0)
Quick Reference Guide 2.1.5 USB3.0 connector (USB3.0) Signal PIN PIN Signal USB_JUSB1_RX_N USB_JUSB1_N USB_JUSB1_RX_P USB_JUSB1_P USB_JUSB1_TX_N USB_JUSB1_TX_P SID-10W03 Quick Reference Guide 15...
