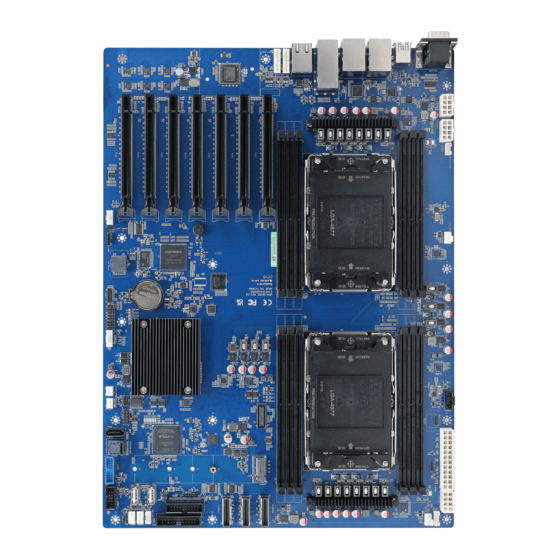

HPM-ERSDE
Dual 4th/5th Generation Intel® Xeon® Scalable Processor
Proprietary Server Board with Intel® C741 Chipset and
IPMI2.0. Processor supports up to 270W TDP
User's Manual
Ed – 11 March 2024
st
1
Copyright Notice
Copyright © 2024 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No: E2047P4S100R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HPM-ERSDE and is the answer not in the manual?

Questions and answers

Related Manuals for Avalue Technology HPM-ERSDE

Summary of Contents for Avalue Technology HPM-ERSDE

  • Page 1 Dual 4th/5th Generation Intel® Xeon® Scalable Processor Proprietary Server Board with Intel® C741 Chipset and IPMI2.0. Processor supports up to 270W TDP User’s Manual Ed – 11 March 2024 Copyright Notice Copyright © 2024 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No: E2047P4S100R...
  • Page 2 HPM-ERSDE User’s Manual Document Amendment History Revision Date Comment March 2024 Avalue Initial Release 2 HPM-ERSDE User’s Manual...
  • Page 3 For detailed information, please always refer to the electronic user's manual. Copyright Notice © 2024 by Avalue Technology Inc. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Avalue Technology Inc.
  • Page 4 ㆍDescription of your software (operating system, version, application software, etc.) ㆍA complete description of the problem ㆍThe exact wording of any error messages To receive the latest version of the user’s manual; please visit our Web site at: www.avalue.com 4 HPM-ERSDE User’s Manual...
  • Page 5 On the other hand, if the new product defect is resulting from incorrect configuration or erroneous use by the user instead of any problem of the hardware itself, the customer will also be requested to pay for relevant handling fees. HPM-ERSDE User’s Manual...
  • Page 6 Lacking detailed statement of fault steps also makes the problem hard to be identified, sometimes resulting in second-time repairs. 6 HPM-ERSDE User’s Manual...
  • Page 7 • Product has been altered or its label of the serial number has been torn off. • Product functionality issues resulting from improper use by the user, unauthorized dismantle or alteration, unfit operation environment, improper maintenance, accident HPM-ERSDE User’s Manual...
  • Page 8 If the customer demands an additional maintenance analysis report, a service fee of various level will be charged depending on the warranty status. In case the analysis result shows that the defect attributes to Avalue’s faulty design or process, the analysis fee will be exempted. 8 HPM-ERSDE User’s Manual...
  • Page 9 CPU, memory, HDD, SSD, storage devices; also replacements motherboards of systems. Please contact Avalue sales for details to evaluate the possibility of system upgrade service and obtain information of lead time and price. HPM-ERSDE User’s Manual...
  • Page 10 A NOTE provides additional information intended to avoid Note inconveniences during operation. Direct current. Alternating current Stand-by, Power on FCC Certification CE Certification Follow the national requirements for disposal of equipment. Stacking layer limit This side up 10 HPM-ERSDE User’s Manual...
  • Page 11 User’s Manual Fragile Packaging Beware of water damage, moisture-proof Carton recyclable Handle with care Follow operating instructions of consult instructions for use. HPM-ERSDE User’s Manual 11...
  • Page 12 EXPLOSION ou une fuite de liquide ou de gaz inflammable. - UNE BATTERIE soumise à une pression d'air extrêmement basse pouvant entraî ner une EXPLOSION ou une fuite de liquide ou de gaz inflammable. 12 HPM-ERSDE User’s Manual...

  • Page 13: Table Of Contents

    ATX power connector (ATXPWR1) ................... 44 2.3.24 Power supply PMBus connector (JPMBUS1) ................44 2.3.25 Front Panel USB2.0 connector (JUSB1) ................... 45 2.3.26 Front Panel USB3.1 connector (JUSB2) ................... 45 2.3.27 Front Panel connector 1 (JFP1) ....................46 HPM-ERSDE User’s Manual 13...
  • Page 14 4.6.2.3.1 Serial Port 1 Configuration ....................75 4.6.2.3.2 Serial Port 2 Configuration ....................76 4.6.2.4 Serial Port Console Redirection .................... 76 4.6.2.5 Option ROM Dispatch Policy ....................77 4.6.2.6 USB Configuration ......................... 78 4.6.2.7 Network Stack Configuration ....................79 14 HPM-ERSDE User’s Manual...
  • Page 15 BMC User Settings ......................117 4.6.5.4.1 BMC Add User Details ......................117 4.6.5.4.2 BMC Delete User Details ....................118 4.6.5.4.3 BMC Change User Settings ....................118 4.6.6 Security ............................119 4.6.6.1 Secure Boot ......................... 119 4.6.7 Boot ............................120 HPM-ERSDE User’s Manual 15...
  • Page 16 Save Changes ........................122 4.6.8.6 Discard Changes ......................... 122 4.6.8.7 Restore Defaults ........................122 4.6.8.8 Save as User Defaults ......................122 4.6.8.9 Restore User Defaults ......................122 5. Mechanical Drawing ....................123 6. Maintenance & Troubleshooting ................125 16 HPM-ERSDE User’s Manual...

  • Page 17: Getting Started

    électrostatique. Placez tous les composants électroniques sur une surface antistatique ou dans un sac antistatique quand ils ne sont pas dans le châssis. Risque d'explosion si la batterie est remplacée par un type incorrect. Jetez les piles usagées selon les instructions HPM-ERSDE User’s Manual 17...

  • Page 18: Packing List

    1.2 Packing List Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty HPM-ERSDE motherboard I/O Shield LGA4677 CPU carrier-E1B 18 HPM-ERSDE User’s Manual...

  • Page 19: Manual Objectives

    We strongly recommend that you study this manual carefully before attempting to set up HPM-ERSDE or change the standard configurations. Whilst all the necessary information is available in this manual we would recommend that unless you are confident, you contact your supplier for guidance.

  • Page 20: System Specifications

    Other 3 x Slim SAS 8i (SFF-8654) connector (from 1st CPU) Edge I/O 1 x DB-9 male connector (Connector: DB-9(male) and DB-15(female) dual port right angle) 5 x RJ45 (Including MGMT, LAN1, 2, 3, and 4) 20 HPM-ERSDE User’s Manual...
  • Page 21 Pin 6 USB1+ Pin 7 Pin 8 Pin 9 Pin 10 No Connection 2 x USB 3.1 Gen1 ports (1 x USB 3.1 Gen1 2.0mm pitch Box Header (Pinrex 52X-8020GB52 or equivalent) +5VSB/0.9A Pin definition : HPM-ERSDE User’s Manual 21...
  • Page 22 1 x Avalue HD audio interface (1 x 6x2 2.0mm pitch wafer connector) Signal Signal ACZ_VCC3 ACZ_SYNC ACZ_BITCLK Audio ACZ_SDOUT ACZ_SDIN0 ACZ_SDIN1 ACZ_RST# ACZ_5VSB GND-Chassis Display 1 x VGA port (DB15 on edge I/O) Graphic Chipset AST2600 BMC controller Spec. & Resolution VGA:1920x1200@60Hz 32bpp 22 HPM-ERSDE User’s Manual...
  • Page 23 1 x 2.5G Base-T Ethernet controller 1 x Dual 10G Base-T Ethernet controller 1G LAN: 2.5G LAN: LED Indicator 10G LAN: Mechanical & Environmental 1 x Std. 24 pin ATX Connector Power Requirement 3 x 8 Pin SSI 12V Connectors HPM-ERSDE User’s Manual 23...
  • Page 24 System condition : Operation mode IEC60068-2-64 Test Fh Storage : mSATA Random vibration test (Non-operation) Reference IEC60068-2-64 Testing procedures PSD: 0.00808G²/Hz , 2.0 Grms Non-Operation mode Test Frequency : 5-500Hz Test Axis : X,Y and Z axis 24 HPM-ERSDE User’s Manual...
  • Page 25 Windows Server IoT 2019 with VT-d disabled. OS Information Windows Server IoT 2022. Linux : Ubuntu 21.10, 22.04 LTS or later Red Hat Enterprise Linux (RHEL) 8.4 LTS/8.5 or later Note: Specifications are subject to change without notice. HPM-ERSDE User’s Manual 25...
  • Page 26 HPM-ERSDE User’s Manual *Only Install CPU1 *Install CPU1 and CPU2 DIMM No. DIMM Qty DIMM1 DIMM2 DIMM3 DIMM4 DIMM5 DIMM6 DIMM7 DIMM8 DIMM9 DIMM10 DIMM11 DIMM12 26 HPM-ERSDE User’s Manual...

  • Page 27: Architecture Overview-Block Diagram

    User’s Manual 1.5 Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of HPM-ERSDE. HPM-ERSDE User’s Manual 27...

  • Page 28: Hardware Configuration

    HPM-ERSDE User’s Manual 2. Hardware Configuration 28 HPM-ERSDE User’s Manual...

  • Page 29: Product Overview

    User’s Manual 2.1 Product Overview HPM-ERSDE User’s Manual 29...

  • Page 30: Jumper And Connector List

    3 x 1 header, pitch 2.00mm Connectors Label Function Note SYS_FAN1-6 System fan connector 1-6 4 x 1 wafer, pitch 2.54mm CPU_FAN1-2 CPU fan connector 1-2 4 x 1 wafer, pitch 2.54mm VGA_COM1 Serial port 1 connector 30 HPM-ERSDE User’s Manual...
  • Page 31 NVMe JRAID_KEY1 VROC Header 4 x 1 header, pitch 2.00mm DIMM1-12 12 x DDR5 RDIMM socket JVR_PRG1 SMBUS VR connector 3 x 1 header, pitch 2.54mm JCASE_OPEN1 CASE OPEN connector 2 x 1 wafer, pitch 2.50mm HPM-ERSDE User’s Manual 31...
  • Page 32 AZALIA connector 6 x 2 header, pitch 2.00mm M2(NGFF)1 M.2 M-Key PCIe 5.0 x4 NVMe SSD JCPLD_JTAG1 CPLD JTAG header 5 x 2 header, pitch 2.54mm JCPLD_SMB CPLD SMBUS connector 3 x 1 header, pitch 2.54mm 32 HPM-ERSDE User’s Manual...

  • Page 33: Setting Jumpers & Connectors

    User’s Manual 2.3 Setting Jumpers & Connectors 2.3.1 Flash Security Override (JPFLASHSEC) Disable* Enable * Default 2.3.2 ME FW update (JPME1) Normal* ME Force Update * Default HPM-ERSDE User’s Manual 33...

  • Page 34: Force Pwron Setting (Jpallpwron1)

    HPM-ERSDE User’s Manual 2.3.3 Force PWRON setting (JPALLPWRON1) Normal Operation* Enable Force PWR-ON * Default 2.3.4 Clear CMOS (JPBAT1) Normal RTC Reset* Clear RTC REGISTERS * Default 34 HPM-ERSDE User’s Manual...

  • Page 35: Boot Uart5 Setting (Jpboot_Uart5)

    User’s Manual 2.3.5 Boot UART5 setting (JPBOOT_UART5) Disable* Enable BOOT FROM UART5 * Default 2.3.6 SATA or PCIE select (JPSATASEL) PCIE* SATA * Default HPM-ERSDE User’s Manual 35...

  • Page 36: Cpld Jtag Header (Jcpld_Jtag1)

    HPM-ERSDE User’s Manual 2.3.7 CPLD JTAG header (JCPLD_JTAG1) Signal PIN PIN Signal JTAG_TCK JTAG_TDO +3.3VSB JTAG_TMS JTAG_TDI 2.3.8 System fan connector 1 (SYS_FAN1) Signal SYS_PWM1 FAN_TACH1 +12V 36 HPM-ERSDE User’s Manual...

  • Page 37: System Fan Connector 2 (Sys_Fan2)

    User’s Manual 2.3.9 System fan connector 2 (SYS_FAN2) Signal SYS_PWM2 FAN_TACH2 +12V 2.3.10 System fan connector 3 (SYS_FAN3) Signal SYS_PWM3 FAN_TACH3 +12V HPM-ERSDE User’s Manual 37...

  • Page 38: System Fan Connector 4 (Sys_Fan4)

    HPM-ERSDE User’s Manual 2.3.11 System fan connector 4 (SYS_FAN4) Signal SYS_PWM4 FAN_TACH4 +12V 2.3.12 System fan connector 5 (SYS_FAN5) Signal +12V FAN_TACH5 SYS_PWM5 38 HPM-ERSDE User’s Manual...

  • Page 39: System Fan Connector 6 (Sys_Fan6)

    User’s Manual 2.3.13 System fan connector 6 (SYS_FAN6) Signal +12V FAN_TACH6 SYS_PWM6 2.3.14 CPU fan connector 1 (CPU_FAN1) Signal +12V FAN_TACH0 CPU0_PWM HPM-ERSDE User’s Manual 39...

  • Page 40: Cpu Fan Connector 2 (Cpu_Fan2)

    HPM-ERSDE User’s Manual 2.3.15 CPU fan connector 2 (CPU_FAN2) Signal +12V FAN_TACH7 CPU1_PWM 2.3.16 SPI connector (JSPI1) Signal PIN PIN Signal SPI_IO2 SPI_IO3 SPI_MOSI SPI_MISO SPI_CLK SPI_CS# +3.3VSB 40 HPM-ERSDE User’s Manual...

  • Page 41: Serial Port 2 Connector (Jcom2)

    User’s Manual 2.3.17 Serial port 2 connector (JCOM2) Signal PIN PIN Signal COM_RXD2 COM_DCD#2 COM_DTR#2 COM_TXD2 COM_DSR#2 COM_CTS#2 COM_RTS#2 COM_RI#2 2.3.18 BMC_UART5 debug connector (JCOM5) Signal +3.3VSB UART5_RX UART5_TX HPM-ERSDE User’s Manual 41...

  • Page 42: Serial General Purpose I/O Connector (Jsgpio1)

    HPM-ERSDE User’s Manual 2.3.19 Serial General Purpose I/O connector (JSGPIO1) Signal PIN PIN Signal SGPIO_DATAOUT SGPIO_LOAD SGPIO_CLOCK 2.3.20 ATX 12V power connector 1 (ATX12V1) Signal Signal +12V +12V +12V +12V 42 HPM-ERSDE User’s Manual...

  • Page 43: Atx 12V Power Connector 2 (Atx12V2)

    User’s Manual 2.3.21 ATX 12V power connector 2 (ATX12V2) Signal Signal +12V +12V +12V +12V 2.3.22 ATX 12V power connector 3 (ATX12V3) Signal Signal +12V +12V +12V +12V HPM-ERSDE User’s Manual 43...

  • Page 44: Atx Power Connector (Atxpwr1)

    HPM-ERSDE User’s Manual 2.3.23 ATX power connector (ATXPWR1) Signal PIN PIN Signal +3.3V +3.3V -12V +3.3V PSON# PSU_PWRGD +V5SB +12V +12V +3.3V 2.3.24 Power supply PMBus connector (JPMBUS1) Signal SMB_PSU_SCL SMB_PSU_SDA SMB_PSU_ALERT# 44 HPM-ERSDE User’s Manual...

  • Page 45: Front Panel Usb2.0 Connector (Jusb1)

    Front Panel USB2.0 connector (JUSB1) Signal PIN PIN Signal USB_PP8 USB_PP9 USB_PN8 USB_PN9 2.3.26 Front Panel USB3.1 connector (JUSB2) Signal PIN PIN Signal USB3_RN6 USB3_RN7 USB3_RP6 USB3_RP7 USB3_TN6 USB_TN7 USB3_TP6 USB_TP7 USB3_PN11 USB_PN13 USB3_PP11 USB_PP13 USB_OC2# HPM-ERSDE User’s Manual 45...

  • Page 46: Front Panel Connector 1 (Jfp1)

    SBPWRLED_P UID_LED# UID_LED_P LAN2-X_LED_P UID_BUTTON# LAN2-X_LED# 2.3.28 Front Panel connector 2 (JFP2) Signal PIN PIN Signal +3.3VSB +3.3VSB UID_LED_P UID_LED# PWR_LED# STATUS_LED# HDD_LED_P STATUS_LED_P HDD_LED# LAN1_LED_P PWRON_BUTTON# LAN1_LED# SMBus_SDA RESET_BUTTON# SMBus_SCL INTRUSION# UID_BUTTON# LAN2-X_LED_P LAN2-X_LED# NMI_BUTTON# 46 HPM-ERSDE User’s Manual...

  • Page 47: Inlet Thermal Sensor (Jinlet_Ser1)

    User’s Manual 2.3.29 Inlet Thermal Sensor (JINLET_SER1) Signal +3.3VSB SMB_INLET_TEMPSENSOR_SDA SMB_INLET_TEMPSENSOR_SCL 2.3.30 Outlet Thermal Sensor (JOUTLET_SER1) Signal SMB_OUTLET_TEMPSENSOR_SCL SMB_OUTLET_TEMPSENSOR_SDA +3.3VSB HPM-ERSDE User’s Manual 47...

  • Page 48: Hdd Backplane Thermal Sensor (Jhdd_Ser1)

    HPM-ERSDE User’s Manual 2.3.31 HDD Backplane thermal Sensor (JHDD_SER1) Signal SSD_LED_N SMB_HDBP_TEMPSENSOR_SCL SMB_HDBP_TEMPSENSOR_SDA +3.3VSB 2.3.32 CASE OPEN connector (JCASE_OPEN1) Signal CHASSIS_INTRUSION 48 HPM-ERSDE User’s Manual...

  • Page 49: Vroc Header (Jraid_Key1)

    User’s Manual 2.3.33 VROC Header (JRAID_KEY1) Signal PCH_SATA_RAIDKEY PU_LEY_CONN 2.3.34 CPU PCIE HP SMB connector (JPEHPSMB1) Signal SMB_CPUHP_SCL SMB_CPUHP_SDA SMB_CPUHP_ALERT# HPM-ERSDE User’s Manual 49...

  • Page 50: Azalia Connector (Jaudio1)

    HPM-ERSDE User’s Manual 2.3.35 AZALIA connector (JAUDIO1) Signal PIN PIN Signal +3.3V AUD_AZA_BCLK AUD_AZA_SYNC AUD_AZA_SDI0 AUD_AZA_SDO AUD_AZA_RST# AUD_AZA_SDI1 +5VSB 2.3.36 SMBUS VR connector (JVR_PRG1) Signal SMB_VR_SDA SMB_VR_SCL 50 HPM-ERSDE User’s Manual...

  • Page 51: Espi Connector (Jespi1)

    User’s Manual 2.3.37 ESPI connector (JESPI1) Signal PIN PIN Signal ESPI_ALERT# ESPI_RESET# ESPI_CLK ESPI_D3 ESPI_CS# ESPI_D2 PLTRST# ESPI_D1 +3.3VSB ESPI_D0 2.3.38 CPLD SMBUS connector (JCPLD_SMB) Signal SMB_DEBUG_PLD_R_SDA SMB_DEBUG_PLD_R_SCL HPM-ERSDE User’s Manual 51...

  • Page 52: Processor Installation Sop

    The processor assembly contains the Intel Xeon SP with carrier and CPU cooler. -1x Intel 4th /5th Xeon SP(MCC & LCC SKU) -1x E1B CPU Carrier (In the HPM-ERSDE package) -1x Cooler module (Avalue P/N:BCC-FAN-467-01R) Please ensure the carrier model on the CPU is consistent with the carrier silkscreen.
  • Page 53 CPU1: Make sure the lever on the carrier is on the same side as the fan. CPU2: Make sure the lever on the carrier is on a different side than the fan. (Only applicable to HPM-ERSDE and Avalue Cooler BCC-FAN-467-01R.) Note: The Thermal grease must be pre-applied on the heatsink before installation.
  • Page 54 HPM-ERSDE User’s Manual Press down to fix. Press down to fix. Here is the lever CPU1 54 HPM-ERSDE User’s Manual...
  • Page 55 ★ The cooler module with CPU pin1 must be aligned with the CPU socket pin1 mark, and the direction cannot be changed at will, or it may cause the CPU to damage after pressing. CPU Socket Cooler Module with CPU Upside down Pin1 HPM-ERSDE User’s Manual 55...
  • Page 56 HPM-ERSDE User’s Manual Pin 1 ▲Figure A ▲Figure B ▲Figure C 56 HPM-ERSDE User’s Manual...
  • Page 57 Install the cooling fan and holder on the cooler module and tighten two locking screws (T30) on the top of the fan holder. Note: The 4U cooler’s fan for Xeon SP dual sockets is facing the opposite side of Edge I/O. HPM-ERSDE User’s Manual 57...
  • Page 58 HPM-ERSDE User’s Manual Connect the cooling fan connector to the fan header labeled for the CPU on the motherboard. 58 HPM-ERSDE User’s Manual...

  • Page 59: Drivers Installation

    Enter to find all the relevant software, utilities, and documentation. Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. HPM-ERSDE User’s Manual 59...

  • Page 60: Install Chipset Driver

    Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step 3. Click Install. Step1. Click Next. Step 4. Setup completed. Step 2. Click Accept. 60 HPM-ERSDE User’s Manual...

  • Page 61: Install Vga Driver

    Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Next. Step 2. Click Next. Step 5. Click Install. HPM-ERSDE User’s Manual 61...
  • Page 62 HPM-ERSDE User’s Manual Step 6. Click Finish to complete setup. 62 HPM-ERSDE User’s Manual...

  • Page 63: Install Audio Driver

    All drivers can be found on the Avalue Official Website: www.avalue.com. Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 1. Click Yes to continue installation. Step 2. Setup completed. HPM-ERSDE User’s Manual 63...

  • Page 64: Install Ethernet Driver

    All drivers can be found on the Avalue Official Website: www.avalue.com. Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 1. Click OK to continue installation. Step 2. Setup completed. 64 HPM-ERSDE User’s Manual...

  • Page 65: Install Quickassist Technology Driver

    Windows 10 operation system. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Install. Step 2. Click Next. Step 5. Click Finish to complete setup. HPM-ERSDE User’s Manual 65...

  • Page 66: Install Vroc Driver

    Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Accept. Step 1. Click Install to continue installation. Step 4. Click Next. Step 2. Click Next. Step 5. Click Install. 66 HPM-ERSDE User’s Manual...
  • Page 67 User’s Manual Step 6. Setup completed. HPM-ERSDE User’s Manual 67...

  • Page 68: Bios Setup

    HPM-ERSDE User’s Manual 4.BIOS Setup 68 HPM-ERSDE User’s Manual...

  • Page 69: Introduction

    If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. HPM-ERSDE User’s Manual 69...

  • Page 70: Using Setup

    Note: Some of the navigation keys differ from one screen to another. • To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “➢” pointer marks all sub menus. 70 HPM-ERSDE User’s Manual...

  • Page 71: Getting Help

    BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. HPM-ERSDE User’s Manual 71...

  • Page 72: Bios Setup

    Note: The BIOS setup screens shown in this chapter are for reference purposes only, and may not exactly match what you see on your screen. Visit the Avalue website (www.avalue.com) to download the latest product and BIOS information. 72 HPM-ERSDE User’s Manual...

  • Page 73: Advanced Menu

    4.6.2.1 Trusted Computing Item Options Description Enables or Disables BIOS support for security device. Disable, Security Device Support O.S. will not show Security Device. TCG EFI protocol Enable[Default] and INT1A interface will not be available. HPM-ERSDE User’s Manual 73...

  • Page 74: Acpi Settings

    Enable ACPI Auto Disabled[Default] Enables or Disables BIOS ACPI Auto Configuration. Configuration Enabled Enables or Disables System ability to Hibernate Disabled Enable Hibernation (OS/S4 Sleep State). This option may not be effective Enabled[Default] with some operating systems. 74 HPM-ERSDE User’s Manual...

  • Page 75: Ast2600 Super Io Configuration

    User’s Manual 4.6.2.3 AST2600 Super IO Configuration Item Description Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA). Serial Port 2 Configuration Set Parameters of Serial Port 2 (COMB). 4.6.2.3.1 Serial Port 1 Configuration HPM-ERSDE User’s Manual 75...

  • Page 76: Serial Port 2 Configuration

    Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 4.6.2.3.2 Serial Port 2 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 4.6.2.4 Serial Port Console Redirection 76 HPM-ERSDE User’s Manual...

  • Page 77: Option Rom Dispatch Policy

    Enabled[Default], Legacy [X] Onboard Mass Storage Controller Disabled Embedded ROM(s). VIDx8086; DIDxA1D2 @ s0|Bx0 |Dx11 |Fx5 Onboard Device has: UEFI [X] Enabled[Default], Legacy [X] Onboard Display Controller Disabled Embedded ROM(s). VIDx1A03; DIDx2000 @ s0|BxA |Dx0 |Fx0 HPM-ERSDE User’s Manual 77...

  • Page 78: Usb Configuration

    USB devices are Legacy USB Support Disabled connected. DISABLE option will keep USB Auto devices available only for EFI applications. XHCI Hand-off Enabled[Default], This is a workaround for OSes without XHCI 78 HPM-ERSDE User’s Manual...

  • Page 79: Network Stack Configuration

    Mass Storage Devices Forced FDD format. Optical drives are emulated as ‘CDROM’, drives with no media will be Hard Disk CD-ROM emulated according to a drive type. 4.6.2.7 Network Stack Configuration HPM-ERSDE User’s Manual 79...
  • Page 80 If disabled, IPv4/6 HTTP boot Disabled[Default] support will not be available. Wait time to press ESC key to abort the PXE boot wait time PXE boot. Number of times presence of media will Media detect count be checked. 80 HPM-ERSDE User’s Manual...

  • Page 81: Nvme Configuration

    User’s Manual 4.6.2.8 NVMe Configuration 4.6.3 Platform Config HPM-ERSDE User’s Manual 81...

  • Page 82: Pch-Io Configuration

    PSFx). The option is invalid if POSTBOOT SAI is set. Flash Protection Range Disabled[Default] Enable Flash Protection Range Registers. Registers(FRRR) Enabled Enable/Disable setting SPD Write Disable Disabled SPD Write Disable bit. For sucurity recommendations, SPD Enabled[Default] write disable bit must be set. 82 HPM-ERSDE User’s Manual...

  • Page 83: Pci Express Configuration

    User’s Manual 4.6.3.1.1 PCI Express Configuration Item Option Description Disabled[Default] PCI Express Port8xh Decode Port8xh Decode Enabled Enable/Disable. Disabled[Default] Enable when using Compliance Load Compliance Test Mode Enabled Board. 4.6.3.1.1.1 PCI Express Root Port 5(Mini SAS) HPM-ERSDE User’s Manual 83...
  • Page 84 PCI Express Root Port 9(BMC. 2600) Control the PCI Express Root Port. Disabled Disabled[Default], PCI Express Active State Power ASPM Management settings. Disabled[Default] L1.1 L1 Substates PCI Express L1 Substates settings. L1.2 L1.1 & L1.2 Enabled[Default], Enable/Disable Precision Time Disabled Measurement. 84 HPM-ERSDE User’s Manual...
  • Page 85 PCI Express Active State Power ASPM Management settings. Disabled[Default] L1.1 L1 Substates PCI Express L1 Substates settings. L1.2 L1.1 & L1.2 Enabled[Default], Enable/Disable Precision Time Disabled Measurement. Auto[Default] Gen1 PCIe Speed Configure PCIe Speed. Gen2 Gen3 HPM-ERSDE User’s Manual 85...
  • Page 86 PCI Express Active State Power ASPM Management settings. Disabled[Default] L1.1 L1 Substates PCI Express L1 Substates settings. L1.2 L1.1 & L1.2 Enabled[Default], Enable/Disable Precision Time Disabled Measurement. Auto[Default] Gen1 PCIe Speed Configure PCIe Speed. Gen2 Gen3 86 HPM-ERSDE User’s Manual...

  • Page 87: Sata And Rst Configuration

    User’s Manual 4.6.3.1.2 SATA And RST Configuration 4.6.3.1.2.1 Controller 2 SATA And RST Configuration HPM-ERSDE User’s Manual 87...
  • Page 88 SATA Port 2(Mini SAS SATA 3) Enable or Disable SATA Port. Enabled[Default] If enabled for any of ports Staggerred Disabled[Default] Spin Up Device Spin Up will be performed and only the Enabled drives which have this option enabled will 88 HPM-ERSDE User’s Manual...
  • Page 89 Otherwise all drives spin up at boot. Hard Disk Drive[Default] Identify the SATA port is connected to SATA Device Type Solid State Drive Solid State Drive or Hard Disk Drive. 4.6.3.1.2.2 Software Feature Mask Configuration for Controller 2 HPM-ERSDE User’s Manual 89...

  • Page 90: Usb Configuration

    USB overcurrent is not Enabled[Default] disabled, USB DbC does not work. Selectively Enable/Disable the corresponding USB Disable[Default] USB Port Disable Override port from reporting a Device Connection to the Select Per-Pin controller. 90 HPM-ERSDE User’s Manual...

  • Page 91: Hd Audio Configuration

    Server ME Configuration Item Option Description The altitude of the platform location above the sea level, expressed in meters. The hex number is decoded as 2’s Altitude 8000 complement signed integer. Provide the 8000h value if the HPM-ERSDE User’s Manual 91...

  • Page 92: Socket Config

    MCTP Bus Owner device, [2:0] function. If all zeros sending bus owner is disabled. 4.6.4 Socket Config Item Options Description DQV mode[Default] Expert Mode (Socket config) Switch Expert mode or DQV mode. Expert mode 4.6.4.1 Processor Configuration 92 HPM-ERSDE User’s Manual...

  • Page 93: Per-Socket Configuration

    User’s Manual Item Option Description Enable/disable extended APIC support. Disable Extended APIC Note: When enabled, VT-d_Interrupt Enable[Default] Remapping will be automatically enabled. 4.6.4.1.1 Per-Socket Configuration 4.6.4.1.1.1 CPU Socket 0 Configuration HPM-ERSDE User’s Manual 93...

  • Page 94: Cpu Socket 1 Configuration

    4.6.4.1.1.2 CPU Socket 1 Configuration Item Option Description 0: Enable all cores. FFFFFFFFFFFFFFFF: Disable all cores. NOTE: AT least one core per CPU must be Disable Bitmap: enabled. Disabling all cores is an invalid configuration. 94 HPM-ERSDE User’s Manual...

  • Page 95: Memory Configuration

    MT/s. If Enforce POR is disabled, user will 4000 Memory Frequency be able to run at higher frequencies than 4400 the memory suppot (limited by processor 4800 support). Do not select Reserved. 5200 5600 4.6.4.2.1 Memory Topology HPM-ERSDE User’s Manual 95...

  • Page 96: Iio Configuration

    HPM-ERSDE User’s Manual 4.6.4.3 IIO Configuration 4.6.4.3.1 Socket0 Configuration Item Options Description Auto Selects PCIe port Bifurcation for selected IOU0 PCIe Slot6 x16 x4x4x4x4 slot(s) Port Format: xDxCxBxA The port x4x4x_x8 96 HPM-ERSDE User’s Manual...
  • Page 97 Auto x4x4x4x4 x4x4x_x8 Selects PCIe port Bifurcation for selected x_x8x4x4 IOU2 PCIe Slot2 x16 x_x8x_x8 slot(s) Port Format: xDxCxBxA The port x_x_x_x16[Default] can further be x2x2. x2x2x4x_x8 x4x2x2x_x8 x_x8x2x2x4 HPM-ERSDE User’s Manual 97...
  • Page 98 Auto x4x4x4x4[Default] x4x4x_x8 x_x8x4x4 x_x8x_x8 x_x_x_x16 Selects PCIe port Bifurcation for selected x2x2x4x_x8 IOU4 PCIe SAS2/SAS3 x4x2x2x_x8 slot(s) Port Format: xDxCxBxA The port x_x8x2x2x4 can further be x2x2. x2x2x4x4x4 x4x2x2x4x4 x4x4x2x2x4 x2x2x2x2x_x8 x2x2x2x2x4x4 x2x2x4x2x2x4 98 HPM-ERSDE User’s Manual...
  • Page 99 Auto: Auto select Force CXL: There is no training discovery, the attached device must also supports this mode. Enable/Disable PCIe Port VC1 support. IIO PCIe VC1 Port Bitmap Port 0 is allocated to DMI or DMI as PCIe. HPM-ERSDE User’s Manual 99...

  • Page 100: Port Dmi

    Gen 5 (32 GT/s) -6.0 dB[Default] De-Emphais control (LNKCON2[6]) for this PCIe PCI-E Port DeEmphasis -3.5 dB port. Disabled[Default] This option can disable ASPM support in a PCIe PCI-E ASPM Support root port. ‘Auto’ keeps hardware default. Auto 100 HPM-ERSDE User’s Manual...

  • Page 101: Port 4E(Sas1), Port 4G(Sas1), Port 5A(Sas2), Port 5C(Sas2), Port 5E(Sas3), Port 5G(Sas3)

    Enable/Disable data link feature negotiation in the Data Link Feature Exchange Enable[Default] Data Link Feature Capabilities (DLFCAP) register. 128B Configure Max Payload Size Supported in PCIe PCI-E Port MPSS Device Capabilities register. ‘Auto’ keeps hardware 256B HPM-ERSDE User’s Manual 101...

  • Page 102: Socket1 Configuration

    Item Options Description Auto x4x4x4x4 x4x4x_x8 x_x8x4x4 x_x8x_x8 Selects PCIe port Bifurcation for selected x_x_x_x16[Default] IOU0 PCIe Slot7 x16 x2x2x4x_x8 slot(s) Port Format: xDxCxBxA The port x4x2x2x_x8 can further be x2x2. x_x8x2x2x4 x2x2x4x4x4 x4x2x2x4x4 x4x4x2x2x4 x2x2x2x2x_x8 102 HPM-ERSDE User’s Manual...
  • Page 103 Selects PCIe port Bifurcation for selected x_x8x2x2x4 IOU2 PCIe Slot3 x16 x2x2x4x4x4 slot(s) Port Format: xDxCxBxA The port x4x2x2x4x4 can further be x2x2. x4x4x2x2x4 x2x2x2x2x_x8 x2x2x2x2x4x4 x2x2x4x2x2x4 x4x2x2x2x2x4 x2x2x2x2x2x2x4 x_x8x4x2x2 x4x4x4x2x2 HPM-ERSDE User’s Manual 103...
  • Page 104 Select PCIe Subsystem Mode for selected slot(s) Gen4: Gen4 controller Gen5 Port 3 Subsystem Mode Protocol Auto Negotiation[Default] only Gen5: Gen5 with or without mix mode Auto: Auto select Force CXL: There 104 HPM-ERSDE User’s Manual...

  • Page 105: Port 1A(Pcie Slot7), Port 2A(Pcie Slot5), Port 3A(Pcie Slot3), Port 5A(Pcie Slot1)

    Uncorrectable Err interrupt on a non-fatal error. Applies to root ports only. Enabled Sck1 RP Fatal No[Default] Uncorrectable Err MSI/INTx interrupt on fatal errors. 4.6.4.3.2.1 Port 1A(PCIe Slot7), Port 2A(PCIe Slot5), Port 3A(PCIe Slot3), Port 5A(PCIe Slot1) HPM-ERSDE User’s Manual 105...
  • Page 106 Compliance Mode port. MCTP Enable/Disable MCTP. Yes[Default] Equalization Bypass To Disable Equalization Bypass To Highest Rate Support Highest Rate Enable[Default] Enable/Disable. Disable[Default] Enable/Disable CXL Drift Buffer if there is a CXL Drift Buffer Enable common reference clock. 106 HPM-ERSDE User’s Manual...

  • Page 107: Intel Vt For Directed I/O (Vt-D)

    Eneble/Disable Intel Virtualization Technology for Directed I/O (VT-d) by reporting the I/O device Enable[Default] Intel VT for Directed I/O Disable assignment to VMM through DMAR ACPI Tables. To disable VT-d, X2APIC must also be disabled. 4.6.4.3.4 Intel VMD technology HPM-ERSDE User’s Manual 107...

  • Page 108: Intel Vmd For Volume Management Device On Socket 0

    Intel VMD for Volume Management Device on Socket 0 Item Option Description Disable[Default] Enable/Disable VMD Enable/Disable VMD in this Stack. Enable 4.6.4.3.4.2 Intel VMD for Volume Management Device on Socket 1 Item Option Description Disable[Default] Enable/Disable VMD Enable/Disable VMD in this Stack. Enable 108 HPM-ERSDE User’s Manual...

  • Page 109: Advanced Power Management Configuration

    This Option allows SST-BF to be enabled. NOTE: HWP Native Mode is a pre-requisite Disable[Default] Activate SST-BF for enabling SST-BF; HWP Native Mode Enable with No Legacy is a pre-requisite for configuring SST-BF. SpeedStep (Pstates) Disable Enable/Disable EIST (P-States). HPM-ERSDE User’s Manual 109...

  • Page 110: Cpu C State Control

    Core C1E auto promotion Control. Takes effect Disable Enhanced Halt State (C1E) after reboot. Will be enforced to enable when Enable[Default] Optimized Power Mode is enabled. ACPI C2[Default] OS ACPI Cx Report CC3/CC6 to OS ACPI C2 or ACPI C3. ACPI C3 110 HPM-ERSDE User’s Manual...

  • Page 111: Server Mgmt

    If enabled, starts a BIOS timer which can only be shut off by Management Software after the OS loads. Helps Enabled OS Watchdog Timer Disabled[Default] determine that the OS successfully loaded or follows the OS Boot Watchdog Timer policy. HPM-ERSDE User’s Manual 111...

  • Page 112: System Event Log

    Choose options for reactions to a full SEL. Delete Oldest Record Disabled Both Disable the logging of EFI Status Codes or log Log EFI Status Codes Error code[Default] only error code or only progress code or both. Progress code 112 HPM-ERSDE User’s Manual...

  • Page 113: Bmc Self Test Log

    Bmc self test log Item Option Description Yes, On every reset[Default] Erase Log Erase Log Options. Clear Log[Default] When log is full Select the action to be taken when log is full. Do not log any more HPM-ERSDE User’s Manual 113...

  • Page 114: Bmc Network Configuration

    HPM-ERSDE User’s Manual 4.6.5.3 BMC network configuration 114 HPM-ERSDE User’s Manual...
  • Page 115 User’s Manual HPM-ERSDE User’s Manual 115...
  • Page 116 BIOS or BMC). Static Address source Unspecified option will not modify any BMC DynamicBmcDhcp network parameters during BIOS phase. Enabled Enable VLAN Support to specify the 802. 1q VLAN Support Disabled VLAN ID. Unspecified[Default] 116 HPM-ERSDE User’s Manual...

  • Page 117: Bmc User Settings

    User’s Manual 4.6.5.4 BMC User Settings 4.6.5.4.1 BMC Add User Details Item Description User Name Enter BMC User Name. HPM-ERSDE User’s Manual 117...

  • Page 118: Bmc Delete User Details

    HPM-ERSDE User’s Manual 4.6.5.4.2 BMC Delete User Details Item Description User Name Enter BMC User Name. 4.6.5.4.3 BMC Change User Settings Item Description User Name Enter BMC User Name. 118 HPM-ERSDE User’s Manual...

  • Page 119: Security

    User’s Manual 4.6.6 Security ⚫ Administrator Password Set setup Administrator Password ⚫ User Password Set User Password 4.6.6.1 Secure Boot HPM-ERSDE User’s Manual 119...

  • Page 120: Boot

    Enables or disables Quiet Boot option Enabled Hard Disk[Default] NVME CD/DVD Boot Option #1 Set the system boot order. USB Device Network Hard Disk NVME[Default] CD/DVD Boot Option #2 Set the system boot order. USB Device Network 120 HPM-ERSDE User’s Manual...

  • Page 121: Save And Exit

    Optimized Boot will disable Csm support and Disabled[Default] disable connecting Network devices to decrease Optimized Boot Enabled boot time. While disabling Optimized Boot, make sure to restore Csm Support option to previous value before enabling Optimized Boot. 4.6.8 Save and exit HPM-ERSDE User’s Manual 121...

  • Page 122: Save Changes And Exit

    This option saves a copy of the current BIOS settings as the User Defaults. This option is useful for preserving custom BIOS setup configurations. 4.6.8.9 Restore User Defaults This option restores all BIOS settings to the user defaults. This option is useful for restoring previously preserved custom BIOS setup configurations. 122 HPM-ERSDE User’s Manual...

  • Page 123: Mechanical Drawing

    User’s Manual 5. Mechanical Drawing HPM-ERSDE User’s Manual 123...
  • Page 124 HPM-ERSDE User’s Manual Unit: mm 124 HPM-ERSDE User’s Manual...

  • Page 125: Maintenance & Troubleshooting

    System Maintenance Introduction If the components of the product fail they must be replaced. Please contact the system reseller or vendor to purchase the replacement parts. Please follow the safety precautions outlined in the sections that follow HPM-ERSDE User’s Manual 125...
  • Page 126 This equipment is not suitable for use in locations where children are likely to be present. DO NOT: ⚫ Drop the device. ⚫ In a site where the ambient temperature exceeds the rated temperature. 126 HPM-ERSDE User’s Manual...
  • Page 127 This reduces the possibility of ESD damage. ⚫ Only handle the edges of the electrical component. When handling the electrical component, hold the electrical component by its edges. Please ensure the following safety precautions are adhered to at all times. HPM-ERSDE User’s Manual 127...
  • Page 128 Never drop any objects or liquids through the openings of the device. ⚫ Be cautious of any possible allergic reactions to solvents or chemicals used when cleaning the device. ⚫ Avoid eating, drinking and smoking within vicinity of the device. 128 HPM-ERSDE User’s Manual...
  • Page 129 No Console Input Devices are found Flash update is failed Typically for development use. The beep code is generated when platform cannot be reset because reset protocol is not available. Platform PCI resource requirements cannot be met HPM-ERSDE User’s Manual 129...

Table of Contents
