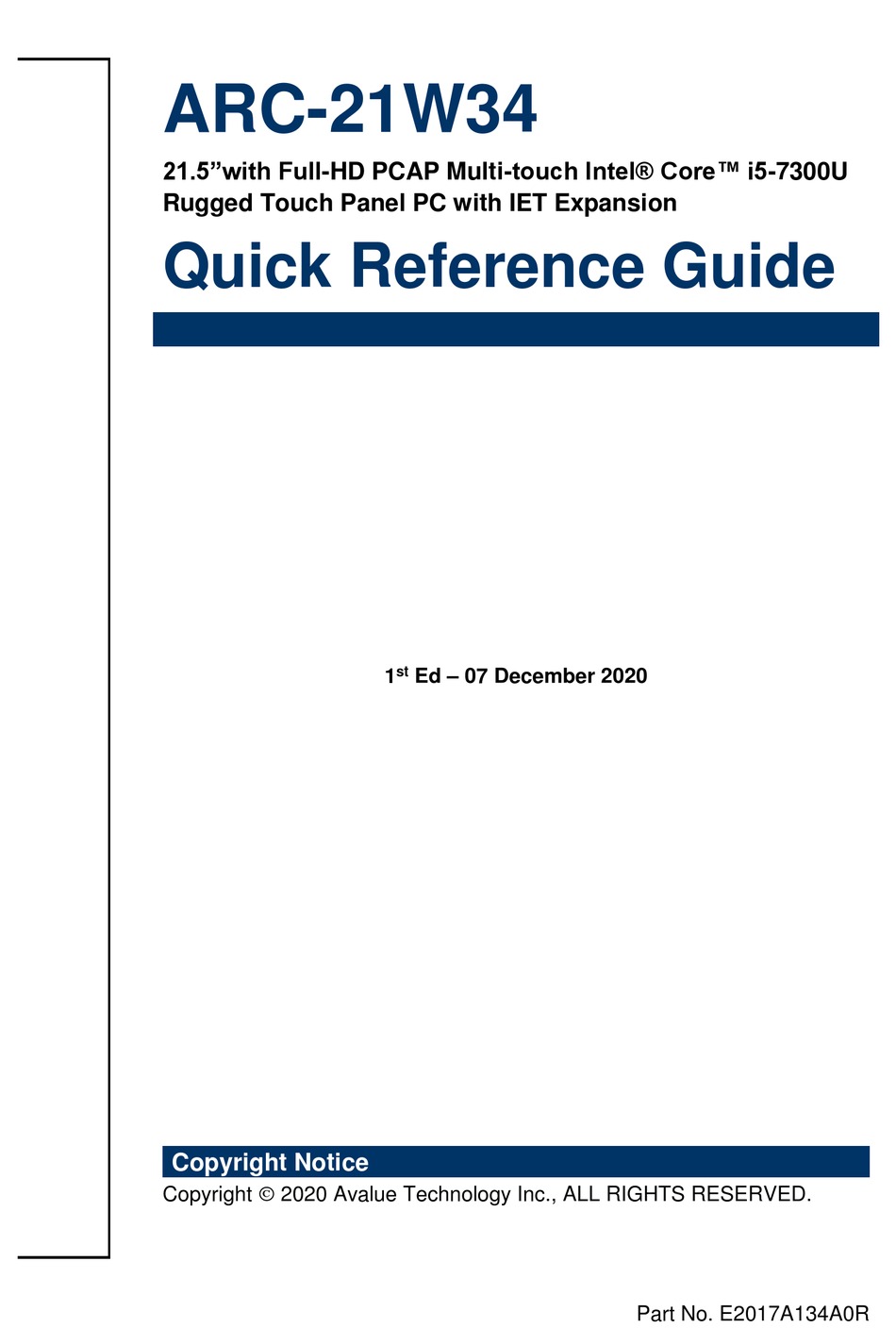

- Page 1 ARC-21W34 21.5”with Full-HD PCAP Multi-touch Intel® Core™ i5-7300U Rugged Touch Panel PC with IET Expansion Quick Reference Guide Ed – 07 December 2020 Copyright Notice Copyright 2020 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017A134A0R...
- Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 ARC-21W34 Quick Reference Guide...
-
Page 3: Table Of Contents
1.4 System Overview ....................12 1.4.1 I/O View ..........................12 1.5 System Dimensions ....................13 Hardware Configuration ..................14 2.1 ARC-21W34 connector mapping................15 2.1.1 Serial port 1 connector (COM1) ..................... 15 2.1.2 Serial port 2 connector (COM2) ..................... 15 2.2 Installing Hard Disk &... - Page 4 2.13.1 USB Power selector (H_USB_PWR_SEL1) ................45 2.14 ARC-BYT DB-H Connectors settings ..............46 2.14.1 Serial Port 1 connector (H_COM1)..................46 2.14.2 Serial Port 2 connector (H_COM2)..................46 2.15 ARC-BYT DB-K Connectors settings ..............47 4 ARC-21W34 Quick Reference Guide...
- Page 5 Serial Port Console Redirection ....................... 66 3.6.2.11.1 Legacy Console Redirection Settings ....................66 3.6.2.12 Intel TXT Configuration ........................67 3.6.2.13 USB Configuration ........................... 68 3.6.2.14 CSM Configuration........................... 69 3.6.2.15 NVMe Configuration ......................... 70 3.6.3 Chipset ..........................70 ARC-21W34 Quick Reference Guide...
- Page 6 Save and exit ........................84 3.6.6.1 Save Changes and Reset ........................ 85 3.6.6.2 Discard Changes and Reset ......................85 3.6.6.3 Restore Defaults ..........................85 3.6.6.4 Expert mode ............................ 85 3.6.6.5 Launch EFI Shell from filesystem device ..................85 6 ARC-21W34 Quick Reference Guide...
-
Page 7: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x ARC-21W34 Panel PC 1 x Power Adapter ... -
Page 8: System Specifications
1 x I219LM PHY, 1 x Intel I211AT GbE controller Wireless LAN Antenna 3 x Antenna Indicator Light HDD LED, Power LED (Green for Power, Yellow for HDD) Expansion Slots 1* mini PCIe full size (support half size) 8 ARC-21W34 Quick Reference Guide... - Page 9 2.5mm Lockable DC Jack, co-lay with phoenix connector Type Dimension 538.05 x 341.05 x 60.5mm Weight 7.1 Kgs Color Front: Die-Casting with Cover lens; Rear: Black Casting-Aluminum Fanless OS Support Linux, Ubuntu, Windows 10 Reliability EMI Test CE/ FCC class B ARC-21W34 Quick Reference Guide...
- Page 10 1 One corner , three edges, six faces 2 ISTA 2A, IEC-60068-2-32 Test:Ed Operating -10~+50 degree C SSD Temperature 0~40 degree C HDD Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing Storage Temperature -20 ~ 60 degree 10 ARC-21W34 Quick Reference Guide...
- Page 11 ARC-BYT DB-F CAN Bus for OBDII ARC-BYT DB-G 3 x COM (w/o isolation, RS-232 only) ARC-BYT DB-H 2COM (RS-232) + 1USB 2.0 ARC-BYT DB-K 2COM (RS-232) + 1LAN Note: Specifications are subject to change without notice. ARC-21W34 Quick Reference Guide 11...
-
Page 12: System Overview
Default: Lockable DC Jack DC-IN DC Power-in connector Option: Phoenix Connector(MOQ apply) COM1/2 Serial port 1/2 connector DB-9 male connector 4 x USB 3.0 connector LAN1/2 RJ-45 Ethernet 1/2 HDD/Power LED indicator Power Switch Power on button 12 ARC-21W34 Quick Reference Guide... -
Page 13: System Dimensions
Quick Reference Guide 1.5 System Dimensions (Unit: mm) ARC-21W34 Quick Reference Guide 13... -
Page 14: Hardware Configuration
ARC-21W34 2. Hardware Configuration For advanced information, please refer to: 1- ARC-KBLU, ARC-BYT DB-A/B/C/D/E/F/G/H/K included in this manual. Note: If you need more information, please visit our website: http://www.avalue.com.tw 14 ARC-21W34 Quick Reference Guide... -
Page 15: Arc-21W34 Connector Mapping
PIN PIN Signal Please set BIOS & JCOM1_SEL1 TxD- TxD+ RxD+ RxD- Please set BIOS & JCOM1_SEL1 2.1.2 Serial port 2 connector (COM2) Signal PIN PIN Signal NDCDB# NDSRB# NRXDB NRTSB# NTXDB NCTSB# NDTRB# NRIB# ARC-21W34 Quick Reference Guide 15... -
Page 16: Installing Hard Disk & Memory
Memory Installation: Remove 3 screws to release the chassis cover, and remove it. Step 2.1 Insert the SODIMM into the memory socket. Step 2.2 Re-assemble your system back through previous steps to complete the installation. 16 ARC-21W34 Quick Reference Guide... - Page 17 Quick Reference Guide Step 3. HDD Installation: Insert the HDD into the Drive Bay and fasten 2 screws. ARC-21W34 Quick Reference Guide 17...
-
Page 18: Installing Arc-Byt Db
ARC-21W34 2.3 Installing ARC-BYT DB Step 1. Unfasten 2 screws of the HDD bracket and take it off. Step 2. Remove 4 screws to release the chassis cover, and remove it. 18 ARC-21W34 Quick Reference Guide... - Page 19 Quick Reference Guide Step 2.1 Insert the ARC-BYT DB into the socket and fasten 3 screws. Step 2.2 Re-assemble your system back through previous steps to complete the installation ARC-21W34 Quick Reference Guide 19...
-
Page 20: Arc-Kblu Overviews
ARC-21W34 2.4 ARC-KBLU Overviews 20 ARC-21W34 Quick Reference Guide... -
Page 21: Arc-Kblu Jumper And Connector List
Power connector JSPI1 SPI connector 4 x 2 header, pitch 2.00mm JEC1 EC Debug connector 2 x 1 header, pitch 2.00 mm SATA1 Serial ATA connector 2 x 1 wafer, pitch 2.00mm SATAPW1 SATA Power connector ARC-21W34 Quick Reference Guide 21... -
Page 22: Arc-Kblu Jumpers & Connectors Settings
ARC-21W34 2.6 ARC-KBLU Jumpers & Connectors settings 2.6.1 Clear CMOS (JCOMS1) Protect* Clear CMOS *Default 2.6.2 Serial port 1/2 pin9 signal select (JRI1/JRI2) Ring* +12V JRI2 JRI1 * Default 22 ARC-21W34 Quick Reference Guide... -
Page 23: Lcd Backlight Brightness Adjustment (Jbklsel1)
Quick Reference Guide 2.6.3 LCD backlight brightness adjustment (JBKLSEL1) PWM Mode* DC Mode * Default 2.6.4 AT/ATX Input power select (JAT1) ATX* * Default ARC-21W34 Quick Reference Guide 23... -
Page 24: Serial Port 1 In Rs-232/422/485 Mode (Jcom1_Sel1)
NDTRA# 485_422TX1+ COM1-2 NRXDA 422RX1+ COM1-3 NTXDA 485_422TX1- COM1-1 NDCDA# Note: This connector is available after modify the mode of COM1 in * Default BIOS setting. 2.6.6 LCD Inverter connector (JBKL1) Signal LVDS_BKLT_CTL LVDS_BKLT_EN +12V 24 ARC-21W34 Quick Reference Guide... -
Page 25: On-Board Header For Usb2.0 (Jusb1)
Quick Reference Guide 2.6.7 On-board header for USB2.0 (JUSB1) Signal +5VSB USB_z_PN10 USB_z_PP10 2.6.8 On-board header for USB2.0 (JUSB2) Signal PIN PIN Signal +5VSB +5VSB USB_z_PN6 USB_z_PN5 USB_z_PP6 USB_z_PP5 ARC-21W34 Quick Reference Guide 25... -
Page 26: Battery Connector (Jbat1)
ARC-21W34 2.6.9 Battery connector (JBAT1) Signal +RTCBAT 2.6.10 LCD backlight brightness adjustment (JBLK_CTRL1) Signal Note BLK_VR_MOD VR must select 10K/1% Low pulse button for BLK_BRI_UP backlight brighter Low pulse button for BLK_BRI_DN backlight dim 26 ARC-21W34 Quick Reference Guide... -
Page 27: Lvds Connector (Jlvds1)
LVDS_DATA1_P LVDS_DATA0_N 12 11 LVDS_DATA1_N LVDS_DATA2_P 16 15 LVDS_DATA3_P LVDS_DATA2_N 18 17 LVDS_DATA3_N LVDS_DATA4_P 22 21 LVDS_DATA5_P LVDS_DATA4_N 24 23 LVDS_DATA5_N LVDS_DATA6_P 28 27 LVDS_DATA7_P LVDS_DATA6_N 30 29 LVDS_DATA7_N LVDS_CLK1_P LVDS_CLK2_P LVDS_CLK1_N LVDS_CLK2_N +12V +12V ARC-21W34 Quick Reference Guide 27... -
Page 28: Amplifier_R (Jspr1)
ARC-21W34 2.6.12 AMPLIFIER_R (JSPR1) Signal SPK_R- SPK_R+ 2.6.13 AMPLIFIER_L (JSPL1) Signal SPK_L- SPK_L+ 28 ARC-21W34 Quick Reference Guide... -
Page 29: Spi Connector (Jspi1)
Quick Reference Guide 2.6.14 SPI connector (JSPI1) Signal PIN PIN Signal +3.3VSB SPI0_CS0# SPI_CLK SPI_SO SPI_SI HOLD# 2.6.15 EC Debug connector (JEC1) Signal EC_SMCLK_DEBUG EC_SMDAT_DEBUG ARC-21W34 Quick Reference Guide 29... -
Page 30: B2B Connector (Jb2B1)
PCIE_RXP8 HDMI1_CLKN Signal PIN PIN Signal HDMI1_CLKP CLK_B2BPCIE_N2 CLK_B2BPCIE_P2 +12V MIC_RIN +12V MIC_LIN MIC1_JD LPC_SERIRQ 46 +5VSB LINEOUT1_JD LINE1_JD LPC_LFRAME# 47 +5VSB LINEOUT_R LINE1_RIN CLK3_LPC_B2B 48 +5VSB LINEOUT_L LNE1_LIN LPC_AD0 49 +5VSB LPC_AD1 50 +5VSB 30 ARC-21W34 Quick Reference Guide... -
Page 31: Touch Panel Connector (Jtp1)
Quick Reference Guide 2.6.17 Touch panel connector (JTP1) Signal SENSE 2.6.18 General purpose I/O connector (JGPIO1) Signal PIN PIN Signal +3.3V SMB_DATA SMB_CLK DIO_GP23 DIO_GP13 DIO_GP22 DIO_GP12 DIO_GP21 DIO_GP11 DIO_GP20 DIO_GP10 ARC-21W34 Quick Reference Guide 31... -
Page 32: Sata Power Connector (Satapw1)
ARC-21W34 2.6.19 SATA Power connector (SATAPW1) Signal 2.6.20 Power connector (PWR1) *Option: Phoenix Connector Signal +DCIN 32 ARC-21W34 Quick Reference Guide... -
Page 33: Arc-Byt Db-A/B/C/D/E/F/G/H/K Overviews
Quick Reference Guide 2.7 ARC-BYT DB-A/B/C/D/E/F/G/H/K Overviews 2.7.1 ARC-BYT DB-A 2.7.2 ARC-BYT DB-B 2.7.3 ARC-BYT DB-C ARC-21W34 Quick Reference Guide 33... -
Page 34: Arc-Byt Db-D
ARC-21W34 2.7.4 ARC-BYT DB-D 2.7.5 ARC-BYT DB-E 2.7.6 ARC-BYT DB-F 34 ARC-21W34 Quick Reference Guide... -
Page 35: Arc-Byt Db-G
Quick Reference Guide 2.7.7 ARC-BYT DB-G 2.7.8 ARC-BYT DB-H 2.7.9 ARC-BYT DB-K ARC-21W34 Quick Reference Guide 35... -
Page 36: Arc-Byt Db-A/B/C/D/E/F/G/H/K Connector List
Serial Port 1/2 connector DB-9 male connector D_JB2B1 B2B connector 2.8.5 ARC-BYT DB-E Jumpers Label Function Note E_JCAN20 CAN2.0 Switch 3 x 1 header, pitch 2.00mm 3 x 1 header, pitch 2.00mm E_JIAP1 For user update FW 36 ARC-21W34 Quick Reference Guide... -
Page 37: Arc-Byt Db-F
H_USB_PWR_SEL1 USB Power selector 3 x 1 header, pitch 2.00mm Connectors Label Function Note H_JUSB1 USB3.0 connector H_COM1/2 Serial Port 1/2 connector DB-9 male connector H_JB2B1 B2B connector 2.8.9 ARC-BYT DB-K Connectors Label Function Note ARC-21W34 Quick Reference Guide 37... - Page 38 ARC-21W34 I_JLAN1 RJ-45 Ethernet I_COM1/2 Serial Port 1/2 connector DB-9 male connector B2B connector I_JB2B1 38 ARC-21W34 Quick Reference Guide...
-
Page 39: Arc-Byt Db-D Connectors Settings
Serial Port 1 connector (D_COM1) Signal PIN PIN Signal NDCD#_3_D NDSR#_3_D NRXD_3_D NRTS#_3_D NTXD_3_D NCTS#_3_D NDTR#_3_D NRI#_3_D 2.9.2 Serial Port 2 connector (D_COM2) Signal PIN PIN Signal NDCD#_2_D NDSR#_2_D NRXD_2_D NRTS#_2_D NTXD_2_D NCTS#_2_D NDTR#_2_D NRI#_2_D ARC-21W34 Quick Reference Guide 39... -
Page 40: Arc-Byt Db-E Jumpers & Connectors Settings
ARC-21W34 2.10 ARC-BYT DB-E Jumpers & Connectors settings 2.10.1 CAN2.0 Switch (E_JCAN20) CAN2.0A (11-bit)* CAN2.0B (29-bit) *Default 2.10.2 For user update FW (E_JBOOT0) Default* For user update FW *Default 40 ARC-21W34 Quick Reference Guide... -
Page 41: For User Update Fw (E_Jiap1)
Quick Reference Guide 2.10.3 For user update FW (E_JIAP1) Default* For user update FW *Default 2.10.4 For user update FW (E_CN1) Signal +3.3V SWDIO SWCLK CAN_BUS_RESET# ARC-21W34 Quick Reference Guide 41... - Page 42 ARC-21W34 2.10.5 General purpose I/O connector (E_GPIO1) Signal +3.3V 2.10.6 CAN Bus connector (E_CAN1) Signal CANH CANL 42 ARC-21W34 Quick Reference Guide...
-
Page 43: Arc-Byt Db-F Connectors Settings
CAN Bus connector 1 (F_CAN1) Signal PIN PIN Signal CAN_PWR CAN_8 CAN_IND CAN_9 BAT_GND CAN_WAKE CAN_11 UART_RXD_1_F CAN_12 UART_TXD_1_F CAN_13 CAN_14 2.11.2 CAN Bus connector 2 (F_CAN2) Signal PIN PIN Signal BAT_PWR CAN_12 CAN_8 CAN_13 CAN_9 CAN_14 BAT_GND CAN_11 ARC-21W34 Quick Reference Guide 43... -
Page 44: Arc-Byt Db-G Connectors Settings
Serial Port 1 connector (G_COM1) Signal PIN PIN Signal NDCD#_3_G NDSR#_3_G NRXD_3_G NRTS#_3_G NTXD_3_G NCTS#_3_G NDTR#_3_G NRI#_3_G 2.12.2 Serial Port 2 connector (G_COM2) Signal PIN PIN Signal NDCD#_2_G NDSR#_2_G NRXD_2_G NRTS#_2_G NTXD_2_G NCTS#_2_G NDTR#_2_G NRI#_2_G 44 ARC-21W34 Quick Reference Guide... -
Page 45: Serial Port 3 Connector (G_Com3)
Quick Reference Guide 2.12.3 Serial Port 3 connector (G_COM3) Signal PIN PIN Signal NDCD#_1_G NDSR#_1_G NRXD_1_G NRTS#_1_G NTXD_1_G NCTS#_1_G NDTR#_1_G NRI#_1_G 2.13 ARC-BYT DB-H Jumpers settings 2.13.1 USB Power selector (H_USB_PWR_SEL1) +5VSB* *Default ARC-21W34 Quick Reference Guide 45... -
Page 46: Arc-Byt Db-H Connectors Settings
Serial Port 1 connector (H_COM1) Signal PIN PIN Signal NDCD#_1_H NDSR#_1_H NRXD_1_H NRTS#_1_H NTXD_1_H NCTS#_1_H NDTR#_1_H NRI#_1_H 2.14.2 Serial Port 2 connector (H_COM2) Signal PIN PIN Signal NDCD#_2_H NDSR#_2_H NRXD_2_H NRTS#_2_H NTXD_2_H NCTS#_2_H NDTR#_2_H NRI#_2_H 46 ARC-21W34 Quick Reference Guide... -
Page 47: Arc-Byt Db-K Connectors Settings
Serial Port 1 connector (I_COM1) Signal PIN PIN Signal NDCD#_1_I NDSR#_1_I NRXD_1_I NRTS#_1_I NTXD_1_I NCTS#_1_I NDTR#_1_I NRI#_1_I 2.15.2 Serial Port 2 connector (I_COM2) Signal PIN PIN Signal NDCD#_2_I NDSR#_2_I NRXD_2_I NRTS#_2_I NTXD_2_I NCTS#_2_I NDTR#_2_I NRI#_2_I ARC-21W34 Quick Reference Guide 47... -
Page 48: Bios Setup
ARC-21W34 3.BIOS Setup 48 ARC-21W34 Quick Reference Guide... -
Page 49: Introduction
If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to. Press F1 to Continue, DEL to enter SETUP ARC-21W34 Quick Reference Guide 49... -
Page 50: Using Setup
Note: Some of the navigation keys differ from one screen to another. To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. 50 ARC-21W34 Quick Reference Guide... -
Page 51: Getting Help
BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. ARC-21W34 Quick Reference Guide 51... -
Page 52: Bios Setup
<Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. 52 ARC-21W34 Quick Reference Guide... -
Page 53: System Language
Visit the Avalue website (www.avalue.com.tw) to download the latest product and BIOS information. 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. ARC-21W34 Quick Reference Guide 53... -
Page 54: Cpu Configuration
Active Processor Cores Number of cores to enable in each processor package. Enabled for Windows XP and Linux (OS optimized for Disabled Hyper-Threading Technology) and Disabled for other Hyper-Threading Enabled[Default] OS (OS not optimized for Hyper-Threading Technology). 54 ARC-21W34 Quick Reference Guide... -
Page 55: Power & Performance
Allows more than two frequency ranges to be Intel® SpeedSted™ Disabled supported. Enable/Disable processor Turbo Mode (requires Enabled[Default], Turbo Mode EMTTM enabled too). AUTO means enabled, unless Disabled max turbo ratio is bigger than 16 SKL A0 W/A. ARC-21W34 Quick Reference Guide 55... -
Page 56: View/Configure Turbo Options
Non-Turbo Ratio – 255). Min = Max 2-Core Ratio Limit Override Non-Turbo Ratio. Max = fused turbo ratio, or 255 if CPU is unlocked for overclocking. This 2-Core Ratio Limit Must be <= to 1-Core 56 ARC-21W34 Quick Reference Guide... -
Page 57: Gt-Power Management Control
3.6.2.2.2 GT-Power Management Control Item Option Description Enabled[Default], Check to enable render standby RC6 (Render Standby) Disabled support. Default Max Frequency[Default], 100Mhz/150Mhz/200Mhz/ 250Mhz/300Mhz/350Mhz/ 400Mhz/450Mhz/500Mhz/ Maximum GT frequency 550Mhz/600Mhz/650Mhz/ Auto Updated. 700Mhz/750Mhz/800Mhz/ 850Mhz/900Mhz/950Mhz/ 1000Mhz/1050Mhz/1100Mhz/ 1150Mhz/1200Mhz ARC-21W34 Quick Reference Guide 57... -
Page 58: Pch-Fw Configuration
When Disabled ME will not be ME Unconfig on RTC Clear Disabled unconfigured on RTC Clear. 3.6.2.3.1 Firmware Update Configuration Item Option Description Enabled[Default], Check to enable render standby Me FW Image Re-Flash Disabled support. 58 ARC-21W34 Quick Reference Guide... -
Page 59: Ptt Configuration
PTT in SkuMgr dTPM 1.2-Disables PTT in TPM Device Selection PTT[Default], SkuMgr Warning! PTT/dTPM will be disabled and all data saved on it will be lost. 3.6.2.5 Network Stack Configuration Item Options Description Enabled Network Stack Enable/Disable UEFI Network Stack. Disabled[Default] ARC-21W34 Quick Reference Guide 59... -
Page 60: Trusted Computing
Item Options Description Enables or Disables BIOS support for Disable, security device. O.S. will not show Security Device Support Enable[Default] Security Device. TCG EFI protocol and INT1A interface will not be available. 3.6.2.7 APCI Settings 60 ARC-21W34 Quick Reference Guide... -
Page 61: It8528 Super Io Configuration
USB Standby Power Setting Enabled[Default], during S3/S4/S5. 3.6.2.8 IT8528 Super IO Configuration You can use this item to set up or change the IT8528 Super IO configuration for serial ports. Please refer to 3.6.2.8.1~ 3.6.2.8.5 for more information. ARC-21W34 Quick Reference Guide 61... -
Page 62: Serial Port 1 Configuration
Set Parameters of Serial Port 5 (COME). 3.6.2.8.1 Serial Port 1 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled UART 232[Default] UART 232 422 485 UART 422 Change the Serial Port UART 485 62 ARC-21W34 Quick Reference Guide... -
Page 63: Serial Port 2 Configuration
Quick Reference Guide 3.6.2.8.2 Serial Port 2 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.8.3 Serial Port 3 Configuration ARC-21W34 Quick Reference Guide 63... -
Page 64: Serial Port 4 Configuration
Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.8.4 Serial Port 4 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.8.5 Serial Port 5 Configuration 64 ARC-21W34 Quick Reference Guide... -
Page 65: H/W Monitor
Quick Reference Guide Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.9 H/W Monitor 3.6.2.10 S5 RTC Wake Settings ARC-21W34 Quick Reference Guide 65... -
Page 66: Serial Port Console Redirection
Select Dynamic Time, System will wake on Dynamic Time the current time + Increase minute(s). 3.6.2.11 Serial Port Console Redirection Item Options Description Disabled[Default], Console Redirection Console Redirection Enable or Disable. Enabled 3.6.2.11.1 Legacy Console Redirection Settings 66 ARC-21W34 Quick Reference Guide... -
Page 67: Intel Txt Configuration
OS. When Always Enable Always Enable[Default] Redirect After POST is selected, then Legacy Console BootLoader Redirection is enabled for legacy OS. Default setting for this option is set to Always Enable. 3.6.2.12 Intel TXT Configuration ARC-21W34 Quick Reference Guide 67... -
Page 68: Usb Configuration
30 sec time-out. 40 sec Maximum time the device will take before it Auto[Default] Device power-up delay properly reports itself to the Host Controller. Manual ‘Auto’ uses default value: for a Root port it is 68 ARC-21W34 Quick Reference Guide... -
Page 69: Csm Configuration
Optical drives are emulated as ‘CDROM’, drives with no media will be Hard Disk CD-ROM emulated according to a drive type. 3.6.2.14 CSM Configuration Item Options Description Enabled CSM Support Enable/Disable CSM Support. Disabled[Default] ARC-21W34 Quick Reference Guide 69... -
Page 70: Nvme Configuration
ARC-21W34 3.6.2.15 NVMe Configuration 3.6.3 Chipset 70 ARC-21W34 Quick Reference Guide... -
Page 71: System Agent (Sa) Configuration
Quick Reference Guide 3.6.3.1 System Agent (SA) Configuration Item Option Description Enabled[Default] VT-d VT-d capability. Disabled 3.6.3.1.1 Memory Configuration ARC-21W34 Quick Reference Guide 71... -
Page 72: Graphics Configuration
1024x768 24/1 800x600 18/1 1024x768 18/1 1366x768 18/1 1024x600 18/1 Port1-EDP to LVDS (Chrontel 7511) CH7511 EDID Panel Option 1280x800 18/1 Panel EDID Option. 1920x1200 24/2 1920x1080 18/2 1280x1024 24/2 1440x900 18/2 1600x1200 24/2 72 ARC-21W34 Quick Reference Guide... -
Page 73: Pch-Io Configuration
200[Default] LVDS Back Light PWM Select LVDS back light PWM Frequency Frequency. Onboard Disabled[Default] Enabled/Disabled USB Touch. Enabled Touch(PenMount_6000) 3.6.3.2 PCH-IO Configuration Item Option Description Disabled PCH LAN Controller Enable or disable onboard NIC. Enabled[Default] ARC-21W34 Quick Reference Guide 73... -
Page 74: Pci Express Configuration
PCI Express Clock Gating Enabled[Default] each root port. The control of Active State Power Disabled DMI Link ASPM Control Management of the DMI Link. Auto is equal Enabled[Default] to POR setting. 3.6.3.2.1.1 PCI Express Root Port5 (i210/211) 74 ARC-21W34 Quick Reference Guide... -
Page 75: Pci Express Root Port8 (B2B Mpcie)
Item Option Description Enabled[Default], PCI Express Root Port 8 Control the PCI Express Root Port. Disabled Unknown Identify the SATA Topology if it is Default or Topology x1[Default], ISATA or Flex or DirectConnect or M2. ARC-21W34 Quick Reference Guide 75... -
Page 76: Pci Express Root Port12 (Mpcie)
Identify the SATA Topology if it is Default or Topology ISATA or Flex or DirectConnect or M2. Sata Express Set the ASPM Level: Force L0s – Force all Auto[Default] ASPM links to L0s State AUTO – BIOS auto L0sL1 76 ARC-21W34 Quick Reference Guide... -
Page 77: Sata And Rst Configuration
Identify the SATA port is connected to Solid SATA Device Type Solid State Drive State Drive or Hard Disk Drive. Unknown Identify the SATA Topology if it is Default or Topology ISATA[Default] ISATA or Flex or DirectConnect or M2. ARC-21W34 Quick Reference Guide 77... -
Page 78: Usb Configuration
ISATA or Flex or DirectConnect or M2. Flex 3.6.3.2.3 USB Configuration Item Option Description Option to disable Compliance Mode. Default FALSE[Default], XHCI Disable Compliance Mode is FALSE to not disable Compliance Mode. TRUE Set TRUE to disable Compliance Mode. 78 ARC-21W34 Quick Reference Guide... -
Page 79: Hd Audio Configuration
Disable = HDA will be unconditionally HD Audio Enabled disabled Enabled = HDA will be Auto[Default], unconditionally enabled Auto = HDA will be enabled if present, disabled otherwise. 20db[Default], 26db Amplifier Gain Amplifier Gain. 32db 36db ARC-21W34 Quick Reference Guide 79... -
Page 80: Security
ARC-21W34 3.6.4 Security Administrator Password Set setup Administrator Password User Password Set User Password 80 ARC-21W34 Quick Reference Guide... -
Page 81: Secure Boot Menu
Quick Reference Guide 3.6.4.1 Secure Boot menu Item Option Description Secure Boot can be enabled if 1.System running in Disabled[Default] Secure Boot User mode with enrolled Platform Key(PK) 2.CSM Enabled function is disabled. ARC-21W34 Quick Reference Guide 81... -
Page 82: Key Management
Secure Boot Policy variables can be configured by a Customization Custom[Default] physically present user without full authentication. 3.6.4.1.1 Key Management Item Option Description Disabled[Default] Provision factory default keys on next re-boot Factory Key Provision Enabled, only when System in Setup Mode. 82 ARC-21W34 Quick Reference Guide... -
Page 83: Boot
Enables or disables boot with Disabled[Default] initialization of a minimal set of devices Fast Boot Enabled required to launch active boot option. Has no effect for BBS boot options. Boot Option #1 Set the system boot order. ARC-21W34 Quick Reference Guide 83... -
Page 84: Save And Exit
ARC-21W34 3.6.6 Save and exit 84 ARC-21W34 Quick Reference Guide... -
Page 85: Save Changes And Reset
3.6.6.4 Expert mode Switch Expert mode or DQV mode. Option: DQV mode [Default]/Expert mode 3.6.6.5 Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shellx64.efi) from one of the available filesystem devices. ARC-21W34 Quick Reference Guide 85...
