CATSKILL 1471 Assembly Instructions Manual

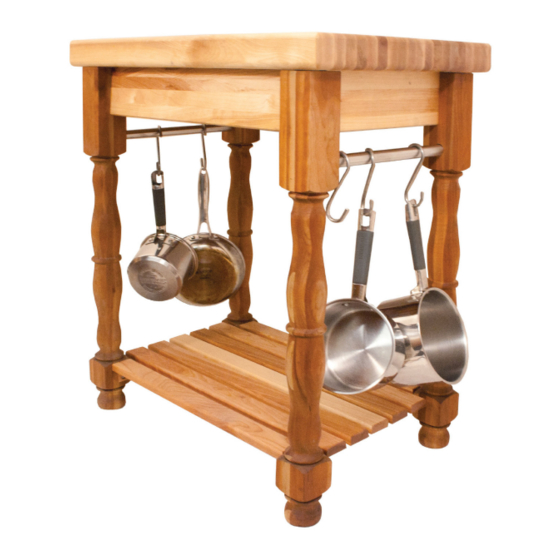

Butcher block island with turned legs

Assembly Instructions

Model 1471

Butcher Block Island with Turned Legs

GENERAL:

1. You have purchased model 1471.

2. Should you need assistance or need to replace a damaged or missing part simply give us a call M-F at

607-652-7321 from 7:30 am - 4:30 pm EST and we'll send you the prepaid part via UPS usually that same day!

You may also email us info@catskillcraftsmen.com.

3. These units are ready-to-assemble. Catskill uses positive fastening methods such as wood screws and in

some places hidden Bastion Fasteners. You will need some standard household tools: hammer and screwdriver

(power screwdriver is recommended). Where possible, we have packaged some of the screws in separate la-

beled packages. To keep hardware separate after packets are open, we suggest you place each type of screw

into separate containers. Note labels for screws and when they are to be used in assembly in the instructions.

4. Directions (left/right, front/back) are given as facing the front of an assembled upright unit.

Table of Contents

Do you have a question about the 1471 and is the answer not in the manual?

Page 1 607-652-7321 from 7:30 am - 4:30 pm EST and we’ll send you the prepaid part via UPS usually that same day! You may also email us info@catskillcraftsmen.com. 3. These units are ready-to-assemble. Catskill uses positive fastening methods such as wood screws and in some places hidden Bastion Fasteners. You will need some standard household tools: hammer and screwdriver (power screwdriver is recommended).
Page 2 PARTS AND HARDWARE 1 1/4” Phillips Flat Head #8 Screw (4) Slatted Shelf (1)
Page 3 STEP 1 Fit legs into Table Top Assembly according to the diagram and also fit towel bars into the holes on the legs.
Page 4 STEP 2 Secure legs to Table Top with flange nuts, tighten with pliers or with a 7/16” wrench.
Page 5 STEP 3 A. Attach the Slatted Shelf using 1 1/4” #8 screws. You may need someone to help hold the shelf in place while you attach it. B. Hang S Hooks on Towel Bar for Pots and Pans storage.
