PRODUCT PARTS

Battery compartment (1)
Base (2)
Load leg (3)
Newborn inlay (4)
ISOFIX-Release buttons (5)
ISOFIX-Locking arms (6)
ISOFIX-Anchorage points (7)
ISOFIX-Indicators (8)
Load leg adjustment button (9)
Load leg indicator (10)
Carrying handle (11)
Carrying handle release buttons (12)
Seat locking indicator (13)
Linear side-impact protection
(L.S.P.) (14)
Tilt angle indicator (15)
3-point automatic belt (16)
Lap belt guide (17)

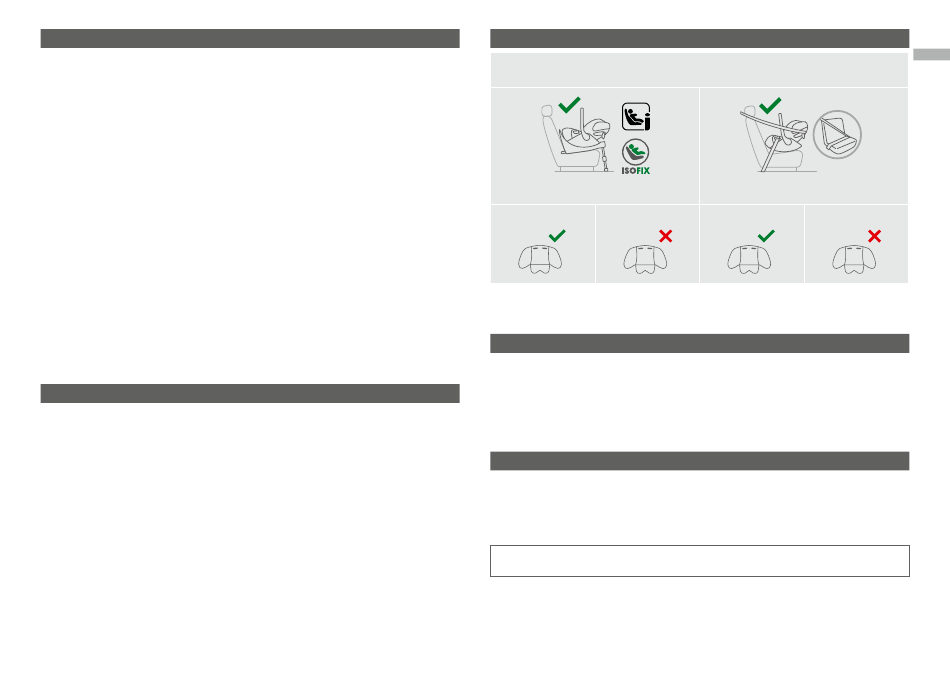

THE CORRECT POSITION IN THE VEHICLE

This is an i-Size Enhanced Child Restraint System. It is approved according
to UN Regulation No. R129/03, for use in i-Size compatible vehicle seating
positions as indicated by vehicle manufacturers in their vehicle user manuals. If
your vehicle does not have an i-Size seating position, please check the enclosed
vehicle Type List. You can obtain the most up-to-date version of the Type List from
www.cybex-online.com.
Alternatively, the car seat may be installed on forward-facing vehicle seats
equipped with a 3-point automatic belt system.
Diagonal belt guide (18)
Seat release handle (19)
Load leg parking position (20)
Headrest (21)
Headrest adjustment handle (22)
Belt adjustment button (23)
Shoulder belt (24)
Belt buckle (25)
Buckle tongue (26)
Central adjustment belt (27)
Seat rotation handle (28)
Driving direction indicator (29)
Driving Direction Control (D.D.C.) (30)
Sun canopy (31)
Release handle for lie-flat position (32)
Release button for stroller adapter (33)
User guide compartment (34)

DIFFERENT USES OF THE SEAT

45 – 87 cm, max. 13 kg
45 – 60 cm > 60 cm
The Newborn inlay (4) integrated at purchase should be removed if your child is
taller than 60 cm. To remove the Newborn inlay (4) open the belt buckle (25), pull
off the shoulder pads and then remove the inlay.

PREPARING TO INSTALL THE BASE Z2

Before using the base for the first time, the plastic strip must be removed from the
Battery compartment (1) on the Load leg (3). The Base (2) will emit an audible
warning signal until it has been correctly installed. If the Load leg (3) is folded
out and there is no sound, the battery must be checked. To check the battery,
the Battery compartment (1) on the back of the load leg can be opened with a
screwdriver. The battery may only be replaced with a CR2032 size battery.
INSTALLATION IN THE VEHICLE
Always ensure that...
• the backrests in the vehicle are locked in their upright position.
• when installing the car seat on the front passenger seat, adjust the vehicle
seat as far back as possible.
The infant car seat is exclusively made for forward facing car seats, which are
��
equipped with ISOFIX or with a 3-point belt system.
45 – 60 cm > 60 cm
