SImx LHT 0271 Installation Instructions

PRODUCT COMPLIANCE
Product tested and complies to:
EN55015:2006/A1:2007 EN61000-3-2:2006 EN61003-3:2008
EN 61547:1995/A1:2000 IEC 61000-4-2:2008 IEC 61000-4-3:2006/A1:2007
IEC 61000-4-4:2004 IEC 61000-4-5:2005 IEC 61000-4-6:2008
IEC 61000-4-8:1993/A1:2000 IEC 61000-4-11:2004 EN 60598-1:2008
EN60598-2-5:1989 EN61347-2-13:2006 AS/NZ 60598-2-1
EN62493:2010 EN62031 IEC/EN 62471 IEC/TR62471-2
and relevant amendments.
MANUFACTURERS EXTENDED WARRANTY
This product is guaranteed by SIMX Ltd for 36 MONTHS from the date of purchase against faulty materials or
workmanship which affects its designed ability to operate. During this period if the product has a defect of this
nature it will be repaired or replaced free of charge by SIMX with the same item, or a similar item, or a similar
one of higher specification. ON CONDITION THAT:
The buyer returns it to the seller from whom it was bought, freight paid.
The product has been bought by the user. ie a receipt/sales invoice is produced as proof of purchase.
The product has not been misused or handled carelessly, installed in anyway contrary to the installation
instructions, or installed in any unusually exposed or harsh environmental conditions.
This guarantee excludes liability for discolouration of paint or plastic, or any user replaceable parts. It also
excludes any liability for labour cost claims associated with repair or replacement of the affected product.
It does not confer any rights other than those expressly set out above and does not cover any claims for
consequential loss or damage.
Our Goods come with guarantees that cannot be excluded under the Australian and New Zealand Consumer
law. You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the Goods repaired or replaced if the
Goods fail to be of acceptable quality and the failure does not amount to a major failure.
Product Name Product Weight (KG)
LHT 0271
0.48KG 98(L) X 122(W) X 111(D)mm
LHT 0272
LHT 0273
0.67KG 170(L) X 122(W) X 111(D)mm
LHT 0274
LHT 0275
0.93KG 222(L) X 141(W) X 111(D)mm
LHT 0276
Product Dimension (mm) Maximum Projection Area
80mm X 60mm
152mm X 60mm
201mm X 79mm
Distributed by: Simx Limited
Ph: +64 9 259 1660 | Technical Support Ph: +64 9 259 1662
Email: sales@simx.co.nz | www.simx.co.nz
Simx reserves the right to alter technical speci cations with prior warning
PUB1300 iss01

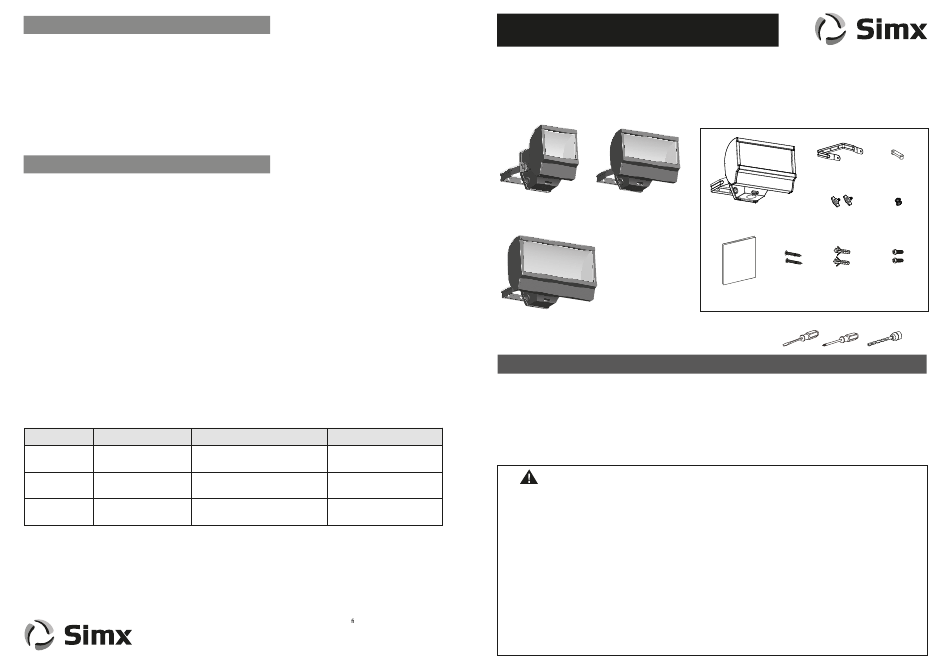

INSTALLATION INSTRUCTIONS
Thank you for purchasing this SIMX REFLECT LED Floodlight.
This light is suitable for outdoor use and requires a 220 - 240V AC power supply.
Please read this manual thoroughly before installation and retain for future reference.
12W 20W
LHT 0271 Black LHT 0273 Black
LHT 0272 White LHT 0274 White
26W LHT 0275 Black
White
LHT 0276
TECHNICAL SPECIFICATIONS
Supply Voltage: 220 - 240V AC 50Hz
Power Factor: >0.92
Working Temperature: -20°C to +40°C
Environmental Protection: IP55 (suitable for indoor
and outdoor use)
Protection Class: Class II
IMPORTANT
This product is suitable for use only with a supply voltage of 220-240V AC 50Hz.
All electrical work must be carried out in accordance with local and national electrical codes as
applicable. We strongly recommend that this light fitting is installed by a registered electrician.
Always switch power off prior to installation. A means of mains power isolation must be installed on the
circuit for the purpose of safe access for any internal cleaning, recalibration, or maintenance.
This light fitting is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety. Young children
should be supervised to ensure that they do not play with the appliance.
Any changes or modifications made or attempted to this product, without the prior written approval of
the manufacturer, will void any and all stated warranties.
Contents:
U bracket Cable clamp
X 1
X 1 Hand screw Star washer
X 2
N S
U C TI O
IN S TR
A L
M A N U
Screw: Screw peg:
Manual M4x32mm 6x30mm M3x12mm
X 1 X 2 X 2
Tools required: Tools / Equipment need for installation.
Construction: Alloy Housing.
Stainless Steel 304 Bracket + Screws,
UV Stabilised Polycarbonate
12W 20W 26W
Luminous Flux: 500lm 1000lm 1500lm
X 1
X 2
Screw:
X 2
