SImx Mightylite LHT0237 Installation Manual

CALIBRATION
This light fitting only operates when the PIR sensor is activated by heat movement within its detection zone.
Once power is connected, the unit requires approx. 60 sec to warmup. During this time the light will turn on
for approx. 5 sec then turn itself off. Do not commence any walk tests until this time has elapsed.
The TIME adjustment (marked "T") has a minimum setting of approx. 15sec (counter clockwise rotation
to the end) which it should be set to for walk testing the unit. Adjust this setting clockwise to the preferred
duration the light activates for when it last detects movement. The maximum clockwise setting is approx. 5
mins. The timer will restart each time the sensor detects any new movement.
The LUX adjustment (marked "F") sets the acceptable amount of light present before the unit will activate.
Rotating the dial to position "5" sets the light to activate during daylight and position "1" sets the light to
activate only at night. Set to desired activation point depending on the needs of the installation.
The RANGE adjustment (marked "R) alters the range of detection and the amount of infra-red radiation (heat)
required to trigger the sensor. To be effective but keep nuisance tripping to a minimum, it is advised to turn
the RANGE control to the middle position where the ambient temperature is between 15°-20°C. This range
sensitivity adjustment can also be used to compensate for the changes in outside air temperature in Winter
(set lower) and Summer (set higher).
AIMING
To aim the Mightylite, simply hold the connection box firmly whilst pivoting the head of the floodlight to the
required location.
NOTE: That this LED light has very intensive light output, which if incorrectly used could cause
eye damage. Care and consideration should be taken when the unit is located close to property
boundaries, to avoid unnecessary spill light or glare to neighbours, and to avoid unwanted
activation of the PIR by passing pedestrians or vehicles.
PRODUCT COMPLIANCES
AS/NZS60598.1:2003 AS/NZS60598.2.5:2002
EN61000.3.2:2006 EN61000.3.3:2008
IEC61347.1:2002 IEC61347.2.13
MANUFACTURERS EXTENDED WARRANTY
This product is guaranteed by SIMX Ltd for 5 years from the date of purchase against faulty materials or
workmanship which affects its designed ability to detect or switch. During this period if the product has a
defect of this nature it will be repaired or replaced free of charge by SIMX with the same item, or a similar
one of higher specification. ON CONDITION THAT:
The buyer returns it to the seller from whom it was bought, freight paid.
The product has been bought by the user. ie a receipt/sales invoice is produced as proof of purchase.
The product has not been misused or handled carelessly, installed in anyway contrary to the installation
instructions, used on a supply voltage other than that indicated in the product specifications, or installed in
any unusually exposed or harsh environmental conditions.
This guarantee excludes liability for discolouration of paint or plastic, or any user serviceable parts. It
does not confer any rights other than those expressly set out above and does not cover any claims for
consequential loss or damage.
Our Goods come with guarantees that cannot be excluded under the New Zealand Consumer Law. You
are entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the Goods repaired or replaced if the Goods fail
to be of acceptable quality and the failure does not amount to a major failure.
Ph: +64 9 259 1660 | Technical Support Ph: +64 9 259 1662
Email: sales@simx.co.nz | www.simx.co.nz
EN55015:2006
EN61000.4 (various clauses)
EN61547:2009
Pub1245 iss02 08/14
Simx reserves the right to alter technical specifications without prior warning
INSTALLATION INSTRUCTIONS

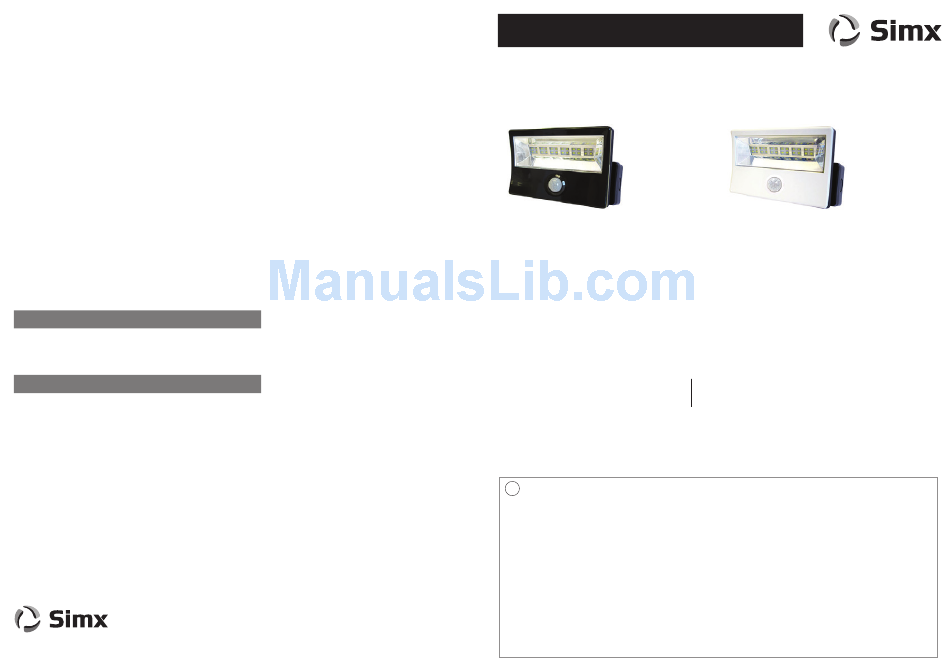

Model: Mightylite 15 Watt and 24 Watt PIR Floodlight
Thank you for purchasing this SIMX floodlight. This light is suitable for outdoor use and requires
a 220 – 240V AC power supply. Please read this manual thoroughly before use and retain for
future reference.
MIGHTYLITE 15W Black
PIR LED Floodlight: LHT0234
MIGHTYLITE 15W White
PIR LED Floodlight: LHT0235
TECHNICAL SPECIFICATIONS
Voltage: 220 - 240V AC
Detection Range: 10 metres max
Detection Angle: 120°
Time Setting: min 15 sec
Dusk Control: Day to Night (adjustable)
Rated Load: 15 Watts
Luminous Flux: 930 lumens
Light Beam Angle: 75°V - 99°H
Working Temperature: -30° to +50° C
Ingress Protection: IP65 with gland - IP44 with rear grommet*
Construction: Polycarbonate UV stabilised & Alloy
* See installation of connection box for details
!
IMPORTANT
This product is suitable for use only with a supply voltage of 220-240V AC 50Hz.
All electrical work must be carried out in accordance with local and national electrical codes as applicable.
We strongly recommend that this light fitting is installed by a registered electrician.
Always switch power off prior to installation. A means of mains power isolation must be installed on the
circuit for the purpose of safe access for any internal cleaning, recalibration, or maintenance.
This light fitting is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Young children should
be supervised to ensure that they do not play with the appliance.
There are no user servicable parts in this light fitting.
Any changes or modifications made or attempted to this product, without the prior written approval of the
manufacturer, will void any and all stated warranties.
MIGHTYLITE 24W Black
PIR LED Floodlight: LHT0236
MIGHTYLITE 24W White
PIR LED Floodlight: LHT0237
max 5 min
24 Watts
1530 lumens
74°V - 93°H
