INSTALLATION INSTRUCTIONS
ECO SPOT SELECT
LHT1054 BLACK / LHT1055 WHITE

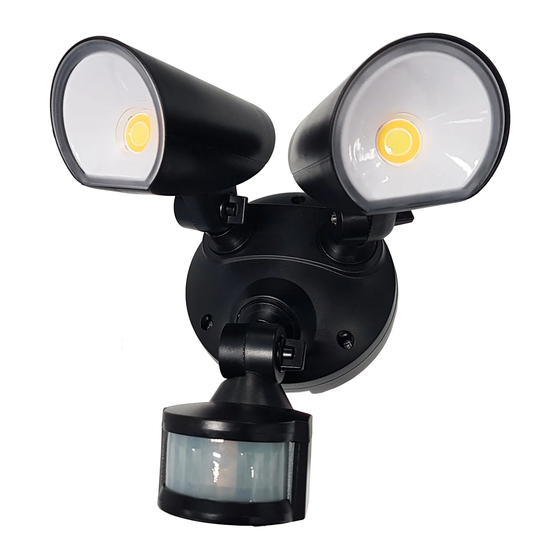

Twin 10W LED Sensor Light
The Simx Eco Spot Select incorporates a PIR (Passive Infra Red) motion sensing device
which continuously scans a preset operating zone and immediately switches the light on
when it detects movement in that area. This product is suitable for sheltered exterior
locations. It requires a 230V AC power supply to operate and should be installed by a
registered electrician.
TECHNICAL SPECIFICATIONS
Power Source
Detection Range
Time Setting
Dusk Control
PIR Aiming adjustment
Sensitivity Control
Manual Override
Standby Power
Rated Load
Lumens
Protection Rating
Mounting
Construction
!
IMPORTANT
This product is suitable for use only with a supply voltage of 220-240V AC 50Hz.
All electrical work must be carried out in accordance with local and national electrical codes as applicable.
We strongly recommend that this light fitting is installed by a registered electrician.
Always switch power off prior to installation. A means of mains power isolation must be installed in the circuit
for the purpose of safe access for any internal cleaning, recalibration, or maintenance.
This light fitting is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Young children should be
supervised to ensure that they do not play with the appliance.
Any changes or modifications made or attempted to this product, without the prior written approval of the
manufacturer, will void any and all stated warranties.
220-240V AC Class II
10 metres max, 150°
Min: 10sec ± 5sec
Max: 4min ± 1min
Day to Night (adjustable)
Pan/Tilt
Yes
Yes
<1W (sensor head only)
20 Watts
3000K, 1800 lumens
4
0
0
0
, K
2
0
0
0
u l
m
e
s n
5
0
0
0
, K
2
0
0
0
u l
m
e
s n
IP54
Ceiling or wall
Polycarbonate UV stabilised
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SImx ECO SPOT SELECT LHT1054
Summary of Contents for SImx ECO SPOT SELECT LHT1054
- Page 1 LHT1054 BLACK / LHT1055 WHITE Twin 10W LED Sensor Light The Simx Eco Spot Select incorporates a PIR (Passive Infra Red) motion sensing device which continuously scans a preset operating zone and immediately switches the light on when it detects movement in that area. This product is suitable for sheltered exterior locations.
- Page 2 BEFORE YOU START Please read all the instructions prior to installation. The Eco Spot Select should be wired to its own light switch. Do not interconnect with other lights on the same switch. An earth connection must be used for electrical safety. To achieve best results, please consider the following points: Eco Spot Select should be mounted 1.8 to 2.5 metres above the ground.
- Page 3 Fig. 2 Night Selecting lamp colour with power supply connected 10 Sec 4 Min 3 mtr 10 mtr may cause irrepairable damage. Always disconnect at mains before making any colour seletion. CALIBRATION...
- Page 4 During this period if the product has a defect of this nature it will be repaired or replaced free of charge by SIMX with the same item, or a similar one of higher specification.
Need help?
Do you have a question about the ECO SPOT SELECT LHT1054 and is the answer not in the manual?
Questions and answers
We have had the sensor light turned off at the wall for some time when we turned it back on the light does not go do i have to reset it some how?
To reset the Simx ECO SPOT SELECT LHT1054 sensor light after turning it off at the wall, turn the wall switch off and on twice within about 3 seconds. This will switch the sensor between Manual Mode and Auto Mode.
