SImx LHT0277 Installation Instructions

Manual Override Mode
The light can be switched on for longer time periods by use of the Manual Override Mode. To activate Manual
Override for continous light at night switch the internal wall switch/circuit breaker (OFF/ON) within 2 seconds.
The unit will now illuminate continuously until dawn or until it is switched back into Automatic Mode.
To cancel Manual Override Mode and switch the unit back into Automatic Mode, flick the internal wall
switch/circuit breaker (OFF/ON) within 1 second. The unit will return to normal motion sensor operation.
The light will flash on once to confirm activation and cancellation of this mode.
WARNING
This product will get warm when in normal use. It can be installed on surfaces of normal flammability e.g.
wood, plasterboard, brickwork and other masonry.
Do not install on flammable surfaces such as plastics.
PRODUCT COMPLIANCE
Product complies with:
EN55015:2006/A1:2007 EN61000-3-2:2006 EN61003-3:2008 EN 61547:1995/A1:2000
IEC 61000-4-2:2008 IEC 61000-4-3:2006/A1:2007 IEC 61000-4-4:2004 IEC 61000-4-5:2005
IEC 61000-4-6:2008 IEC 61000-4-8:1993/A1:2000 IEC 61000-4-11:2004 EN 60598-1:2008
EN60598-2-5:1989 EN61347-2-13:2006 AS/NZ 60598-2-1 EN62493:2010 EN62031
IEC/EN 62471 IEC/TR62471-2 and relevant amendments.
MANUFACTURERS EXTENDED WARRANTY
This product is guaranteed by SIMX Ltd for 36 MONTHS from the date of purchase against faulty materials or workmanship
which affects its designed ability to operate. During this period if the product has a defect of this nature it will be repaired
or replaced free of charge by SIMX with the same item, or a similar item, or a similar one of higher specification.
ON CONDITION THAT:
The buyer returns it to the seller from whom it was bought, freight paid.
The product has been bought by the user i.e. a receipt/sales invoice is produced as proof of purchase.
The product has not been misused or handled carelessly, installed in anyway contrary to the installation instructions, or
installed in any unusually exposed or harsh environmental conditions.
This guarantee excludes liability for discolouration of paint or plastic, or any user replaceable parts.
It does not confer any rights other than those expressly set out above and does not cover any claims for consequential loss
or damage.
Our Goods come with guarantees that cannot be excluded under the Australian and New Zealand Consumer law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the Goods repaired or replaced if the Goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Distributed by: Simx Limited
Ph: +64 9 259 1660 | Technical Support Ph: +64 9 259 1662
Email: sales@simx.co.nz | www.simx.co.nz
Simx reserves the right to alter technical specifications with prior warning
PUB1301 iss01

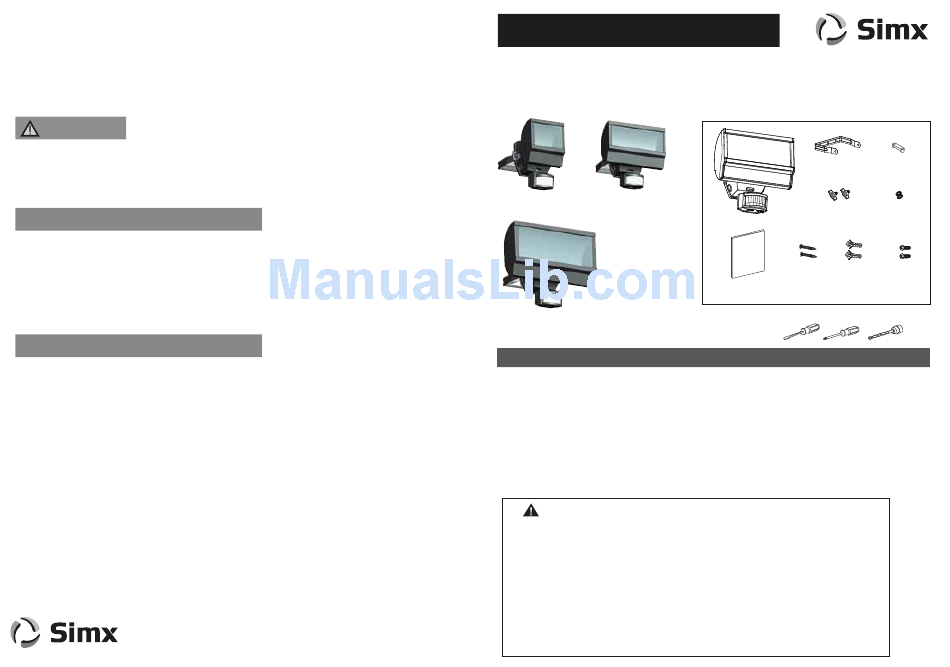

INSTALLATION INSTRUCTIONS
MODEL: LHT0277, LHT0278, LHT0279, LHT0280, LHT0281 and LHT0282
Thank you for purchasing this SIMX Reflect LED PIR Floodlight. This light is suitable for outdoor use
and requires a 220 - 240 V AC power supply. Please read this manual thoroughly before installation
and retain for future reference.
12W 20W
LHT0277 Black LHT0279 Black
LHT0278 White LHT0280 White
26W
LHT0281 Black
LHT0282 White
TECHNICAL SPECIFICATIONS
PIR Operation: Auto / Manual / D-MODE
PIR Detection Range: up to 10 metres
PIR Detection Angle: 120º at 3m; 80º at 10 metres
PIR Time Setting: min 3 - 10 secs
max 9 - 11 mins
PIR Dusk Control: Day to night (adjustable)
PIR Aiming Adjustment: Pan left 90º and right 90º
Tilt down 50º
Construction: Alloy Housing,
Stainless Steel 304 Bracket + Screws,
UV Stabilised Polycarbonate
IMPORTANT
This product is suitable for use only with a supply voltage of 220-240V AC 50Hz.
All electrical work must be carried out in accordance with local and national electrical codes as
applicable. We strongly recommend that this light fitting is installed by a registered electrician.
Always switch power off prior to installation. A means of mains power isolation must be installed on the
circuit for the purpose of safe access for any internal cleaning, recalibration, or maintenance.
This light fitting is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety. Young children
should be supervised to ensure that they do not play with the appliance.
Any changes or modifications made or attempted to this product, without the prior written approval of
the manufacturer, will void any and all stated warranties.
Contents:
U bracket Cable clamp
X 1
Hand screw Star washer
X 2
X 1
N S
U C TI O
IN S TR
A L
M A N U
Screw: Screw peg:
Manual M4x32mm 6x30mm
X 1 X 2 X 2
Tools required: Tools / Equipment need for installation.
Supply Voltage: 220 - 240V AC 50Hz
Power Factor: >0.92
Stand By Load: 0.5W max
Working Temperature: -20°C to +40°C
Ingress Protection: IP55
Protection Class: Class II
Light Beam Angle: 110º
Lamp Data: 5700k, CRI >80
12W 20W 26W
Luminous Flux: 500lm 1000lm 1500lm
X 1
X 2
Screw:
M3x12mm
X 2
