SImx LHT0331 Installation Instructions

Manual Override Mode

The light can be switched on for longer time periods by use of the Manual Override Mode. To activate Manual Override for
continuous light at night, toggle the internal wall switch twice (OFF/ON//OFF/ON) within 1 -2 seconds.
The unit will now illuminate continuously until dawn or until it is switched back into Automatic Mode.
The permanent illumination of the red LED at the top of the sensor head indicates that Manual Mode is activated.
To cancel Manual Override Mode and switch the unit back into Automatic Mode, toggle the internal wall switch once
(OFF/ON) within 1 second. The unit will return to normal motion sensor operation. The light will flash on once to confirm
activation and cancellation of this mode. The red LED's will scroll left and right indicating the unit is in Automatic Mode.

PRODUCT COMPLIANCE

Product complies with:
EN55015:2006/A1:2007 EN61000-3-2:2006 EN61000-3-3:2008 EN 61547:1995/A1:2000
IEC 61000-4-2:2008 IEC 61000-4-3:2006/A1:2007 IEC 61000-4-4:2004 IEC 61000-4-5:2005
IEC 61000-4-6:2008 IEC 61000-4-8:1993/A1:2000 IEC 61000-4-11:2004 EN 60598-1:2008
EN60598-2-5:1989 EN61347-2-13:2006 AS/NZ 60598-2-5 EN62031
IEC/EN 62471 IEC/TR62471-2 and relevant amendments.

MANUFACTURERS EXTENDED WARRANTY

This product is guaranteed by Ventair Pty Ltd for 36 MONTHS from the date of purchase against faulty materials or
workmanship which affects its designed ability to switch or operate. During this period if the product has a defect of this
nature it will be repaired or replaced free of charge by Ventair with the same item, or a similar item, or a similar one of
higher specification.
ON CONDITION THAT:
The buyer returns it to the seller from whom it was bought, freight paid.
The product has been bought by the user i.e. a receipt/sales invoice is produced as proof of purchase.
The product has not been misused or handled carelessly, installed in anyway contrary to the installation instructions, or
installed in any unusually exposed or harsh environmental conditions.
This guarantee excludes liability for discolouration of paint or plastic, or any user replaceable parts.
It does not confer any rights other than those expressly set out above and does not cover any claims for consequential loss
or damage.
Our Goods come with guarantees that cannot be excluded under the Australian Consumer law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the Goods repaired or replaced if the Goods fail to be of acceptable quality and the failure
does not amount to a major failure.
SIMX is proudly distributed by Ventair Pty Ltd
4 Capital Place, Carrum Downs, 3201 VIC, AUSTRALIA.
Technical Support: 1300 665 926
e: info@ventair.com.au | www.ventair.com.au | www.simx.com.au

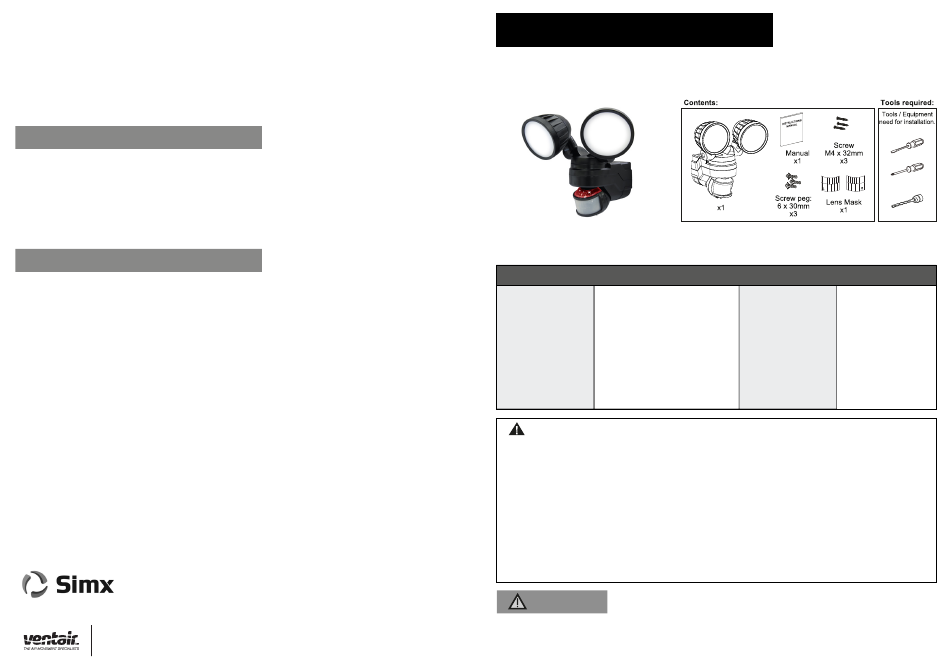

INSTALLATION INSTRUCTIONS
MODEL: LHT0331 and LHT0332

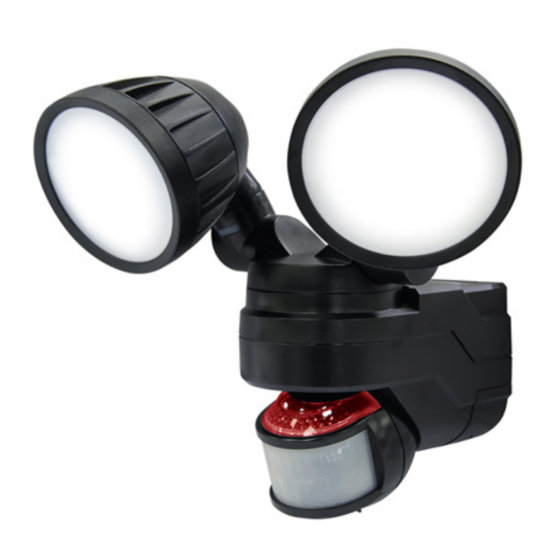

Thank you for purchasing this 12W x2 LED Twinspot Floodlight
This light is suitable for sheltered outdoor use and requires a 230-240V AC power supply.
Please read this manual throughly before installation and retain for future reference.
* This light is designed for wall mount installation only.
Ensure adequate ventilation space is allowed between the unit and any object above, in front or to either side of the unit.

TECHNICAL SPECIFICATIONS

PIR Operation: Auto / Manual / Time Control
PIR Detection Range: Up to 12 metres
PIR Detection Angle: 180º at 3m; 80º at 12 metres
PIR Auto Time Off: Min: 3 secs Max: 7 mins (approx)
PIR Time Control: Approx. 1 - 8 hours (adjustable)
PIR Dusk Control: Day to night (adjustable)
Lamp Adjustment: Pan left 80º and right 80º (+42º)
Tilt down 55º
Construction: Alloy UV Stabilised Polycarbonate,
Stainless Steel 304 Screws
IMPORTANT
This product is suitable for use only with a supply voltage of 230-240V AC 50Hz.
All electrical work must be carried out in accordance with local and national electrical codes as applicable. We
strongly recommend that this light fitting is installed by a registered electrician.
Always switch power off prior to installation. A means of main power isolation must be installed on the circuit for the
purpose of safe access for any internal cleaning, recalibration, or maintenance.
This light fitting is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. Young children should be supervised to
ensure that they do not play with the appliance.
Any changes or modifications made or attempted to this product, without the prior written approval of the
manufacturer, will void any and all stated warranties.

WARNING

This product will get warm when in normal use. It can be installed on surfaces of normal flammability e.g.
wood, plasterboard, brickwork and other masonry.
Do not install on flammable surfaces such as plastics.
260620
Supply Voltage: 230-240V AC 50Hz
Wattage: 24 watts
Power Factor: >0.92
Stand By Load: 0.5W max
Light Beam Angle: 105º-110º
Lamp Data: 5000k, CRI >80
Luminous Flux: Total: 1600lm
Working Temperature: -20°C to +40°C
Ingress Protection: IP44
Protection Class: Class I
