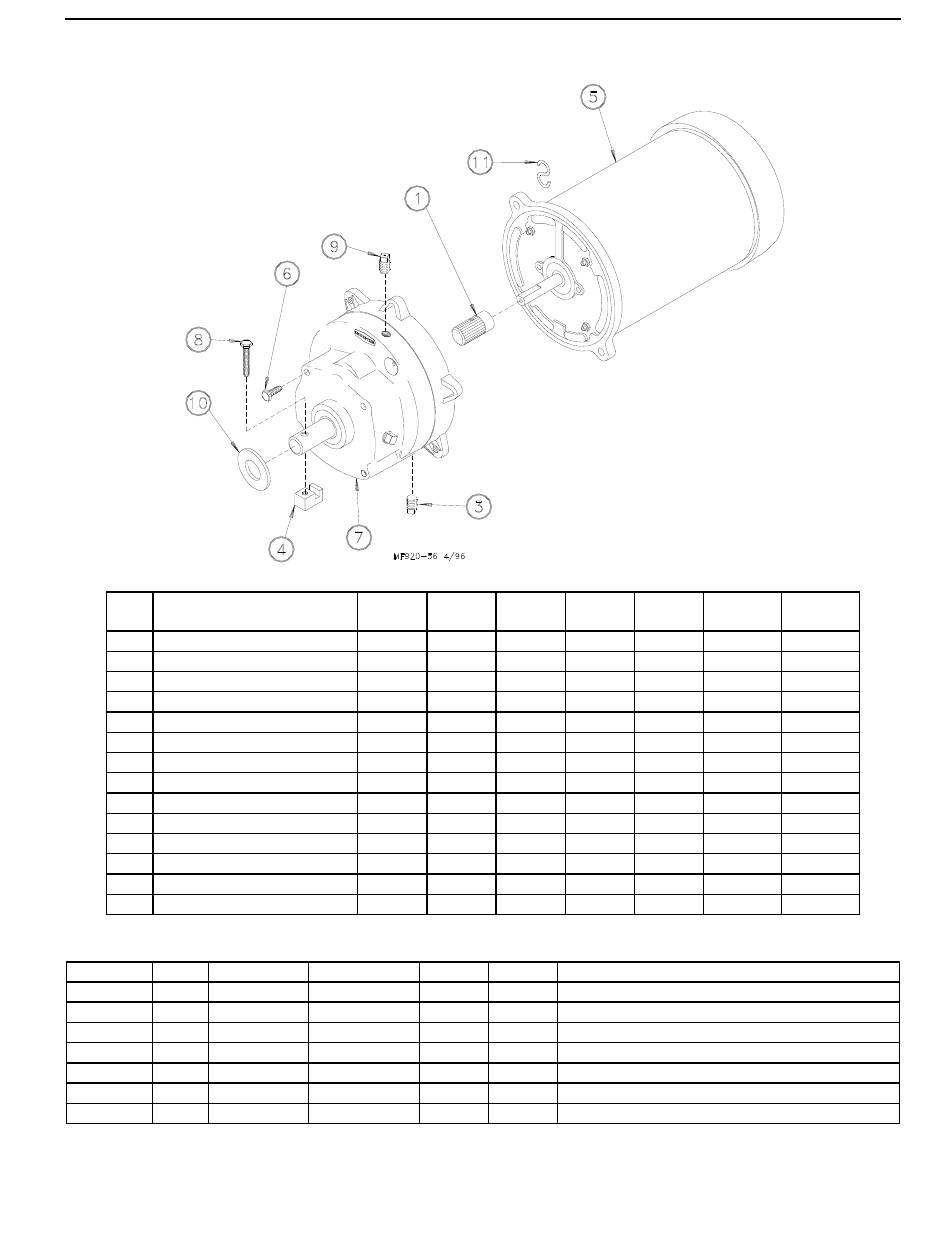

Power Unit Assemblies

Item Description
1 Pinion Assembly
2 - - - -
3 Pipe Plug (magnetic)
4 Driver Block
5 Motor
6 5/16-18x5/8 Hex HD Screw
7 Gearhead
8 1/4-20x1-1/2 Socket Hd Screw
9 Vent Plug
10 Flat Washer
11 "S" Hook
-- Cord Assembly
-- Connector (Romex)
-- Connector (90 Degree)

Power Unit Assembly Part Numbers:

Part No. HP RPM
3259-8 1/3 HP 348 RPM
3259-25 1/2 HP 348 RPM
3259-84 1/3 HP 348 RPM
3259-85 1/2 HP 348 RPM
3259-98 1/2 HP 348 RPM
3259-100 1/2 HP 348 RPM
3259-128 1/2 HP 348 RPM
MF1255C
3259-8 3259-25
Part No. Part No.
5046 5046
- - - - - - - -
30160 30160
4642 4642
4229 5703
4412-1 4412-1
3261-5 3261-5
5083-8 5083-8
3516 3516
1484 1484
2805 2805
4685 8299
1317 1317
- - - - - - - -
Phase Hz
Single Phase 60 Hz
Single Phase 60 Hz
Single Phase 60 Hz
Single Phase 60 Hz
Single Phase 50 Hz
Three Phase 50 Hz
Three Phase 60 Hz
3259-84 3259-85 3259-98
Part No. Part No. Part No.
5046 5046 5046
- - - - - - - - - - - -
30160 30160 30160
4642 4642 4642
4229 5703 5977
4412-1 4412-1 4412-1
3261-5 3261-5 3261-11
5083-8 5083-8 5083-8
3516 3516 3516
1484 1484 1484
2805 2805 2805
- - - - - - - - 28028
- - - - - - - - - - - -
- - - - - - - - 4228
Voltage Usages
230 Use with 1878-8 Control Unit ONLY
230 Use with 1878-8 Control Unit ONLY
230 Use with all Control Units except 1878 Control Units
230 Use with all Control Units except 1878 Control Units
230 Use with all Control Units
220/380 Use with all Control Units
230 Use with all Control Units
Parts Listing
3259-100 3259-128
Part No. Part No.
5046 5046
- - - - - - - -
30160 30160
4642 4642
28031 24624
4412-1 4412-1
3261-11 3261-5
5083-8 5083-8
3516 3516
1484 1484
2805 2805
- - - - - - - -
- - - - - - - -
- - - - - - - -
