MODEL C2® Plus & MODEL G™ Plus Feeding System
Use a hacksaw or bolt cutters to cut the auger at the stretched auger mark.
4) Boot under Feed Hopper
3) Pull an extra 8" [200 mm] of auger (minimum)
to allow for Anchor and Bearing Installation
12. Insert the Anchor Assembly into the auger until it touches
the washer at the back of the anchor. Tighten the setscrews
in the center of the anchor until they touch the auger, then
tighten a maximum of 1/2 turn. See
Figure 35. DO NOT OVERTIGHTEN THE SET
SCREWS.
13. Carefully remove the locking pliers while holding onto the Anchor and Bearing Assembly and
auger securely.
Slowly ease the auger back into the tube. Use caution. If the auger is allowed to spring back, the
bearing race may crack.
Install the Bearing Retainer and fasten with a tube clamp. Keep the Bearing Retainer flush with the
end of the anchor for safety.
14. Place the cannonball in the boot.
MF1255C

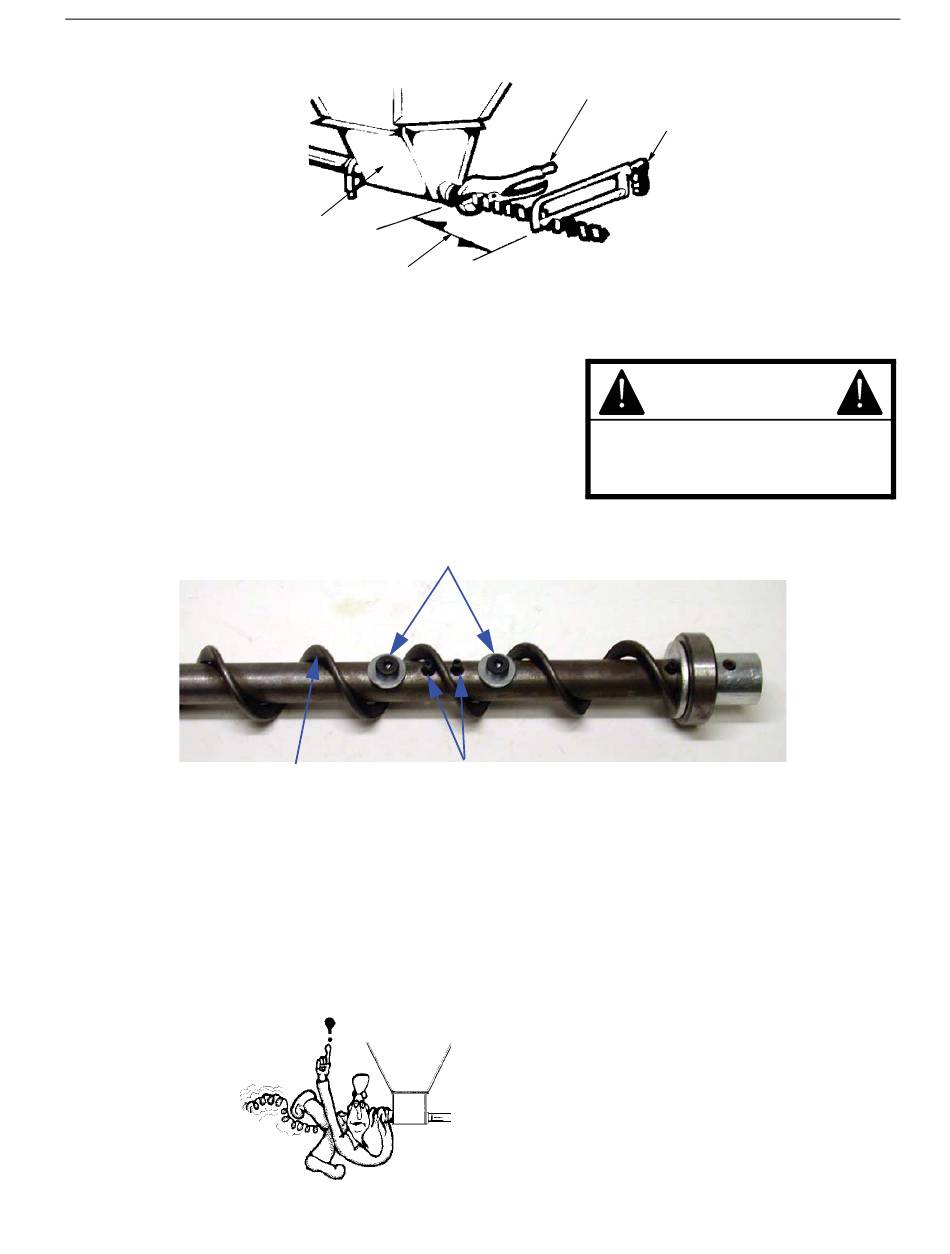

Figure 34. Cut the Auger with required stretch
Set Screws
Alignment Pins
Auger
Figure 35. Auger and Anchor Bearing Connection
Manboot 3/98
Feeder Line Assembly and Suspension
1) Locking Pliers
1255-95 9/2000
KEEP HANDS AWAY FROM PINCH
POINTS WHEN INSTALLING
BE CAREFUL WHEN
WORKING WITH THE
AUGER!
2) Use a hacksaw or bolt
cutters to cut the auger
CAUTION
AUGER.
