MODEL C2® Plus & MODEL G™ Plus Feeding System
The Mid-Line Control makes it possible to operate the feeding system when birds are confined away from the End
Control Unit. Chore-Time recommends placing the Mid-Line Control Feeder at least 2 pans away from the curtain
or partition. See Figure 44.
1. New Feeder Lines: Leave one feeder pan assembly off the feeder control tube at the point where
the Mid-Line Control needs to be placed. The feeder line can be assembled and suspended before
attaching the Mid-Line Control; or the Mid-Line Control may be attached to the feeder tube when
the other pans are installed.
Existing Feeder Lines: Cut the Grill Support and remove the feeder pan at the location where the
Mid-Line Control will be installed.
1) Hopper at end
of the feeder line
4) Control Tube
(new installations)
2. New Feeder Lines: Go to step 3.
Existing Feeder Lines: Enlarge the outlet hole to
approximately 1'' [2.5 cm] diameter for the
Mid-Line Control, plus enlarge (2) outlet holes in
front (to the hopper end) of the Mid-Line Control.
Use unibit to enlarge hole size. Be sure there are no
burrs inside the tube to catch the auger.
3. Install the Mid-Line Control:
Mechanical Switch:
a. Remove the two hex head screws on
the control top.
b. Lift off the control top.
c. Cradle the feeder tube in the control
housing. The feeder tube may have
to be turned slightly to allow the pan
to hang straight.
d. Clamp the control in place by
inserting tabs on the control top into
the slots on the control body. Install
and tighten the two hex head screws
previously removed.
MF1255C
2) Feeder Pan
5) Mid Line Control

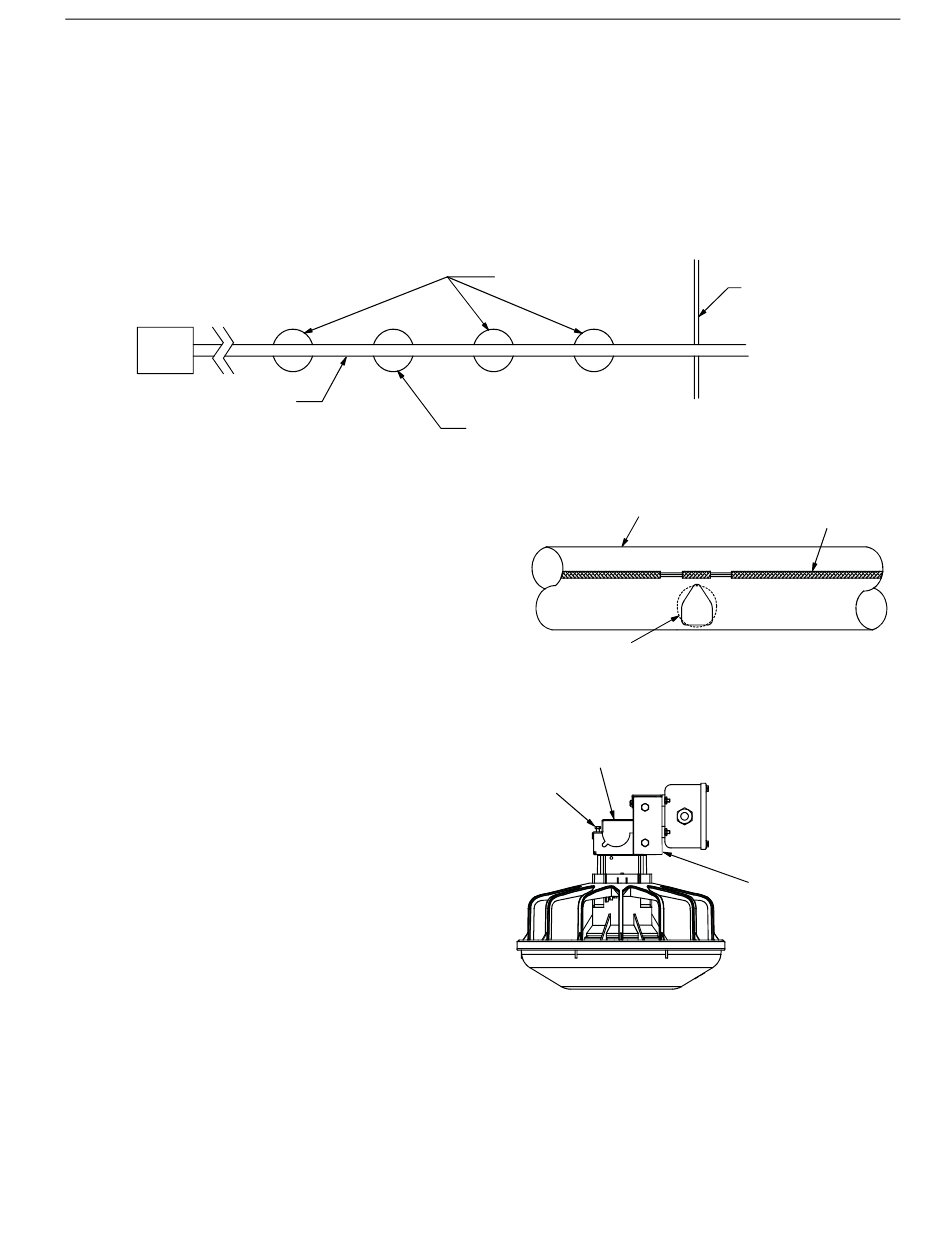

Figure 44. Mid-Line Control Location Diagram
2) Hex Head Scew
1) Auger Tube
3) Use a Unibit to enlarge outlet holes
on existing feeder lines
Figure 45. Enlarging Outlet Holes
3) Control Top
Figure 46. Mid-Line Control Installation
Mid-Line Control
3) Brood Curtain
1255-99 4/2001
2) Seam
1255-100 9/2000
1) Mid Line Control
1255-101 9/2000
