MODEL C2® Plus & MODEL G™ Plus Feeding System
6. After securing the Ceiling Hook to the truss, slide
the hook of a Swivel Pulley into the slot, as shown
in Figure 17.

Drop Installation

Refer to Figure 12 on page 11.
1. Attach a 3004 Pulley to each hook.
2. Thread the end of the 3/32" or 1/8" cable through the pulley toward the winch. Clamp this end to the
3/16" winch cable about 6" [150 mm] from the last pulley, using a 3/16" cable clamp. See
applicable figure; Figure 13 or 17.
3. Allow enough cable length for installation of the Adjustment Leveler.
Sufficient cable is included to provide "throwbacks" on drops located beneath and near the winch.
Figure 18 shows a "throwback" cable arrangement.
4. Begin installing suspension drops at the winch and proceed to the ends of the feeder line.
Keep the main cable tight between drops. It may be necessary to hang a weight on the end of the
cable to maintain tension on the line.
MF1255C

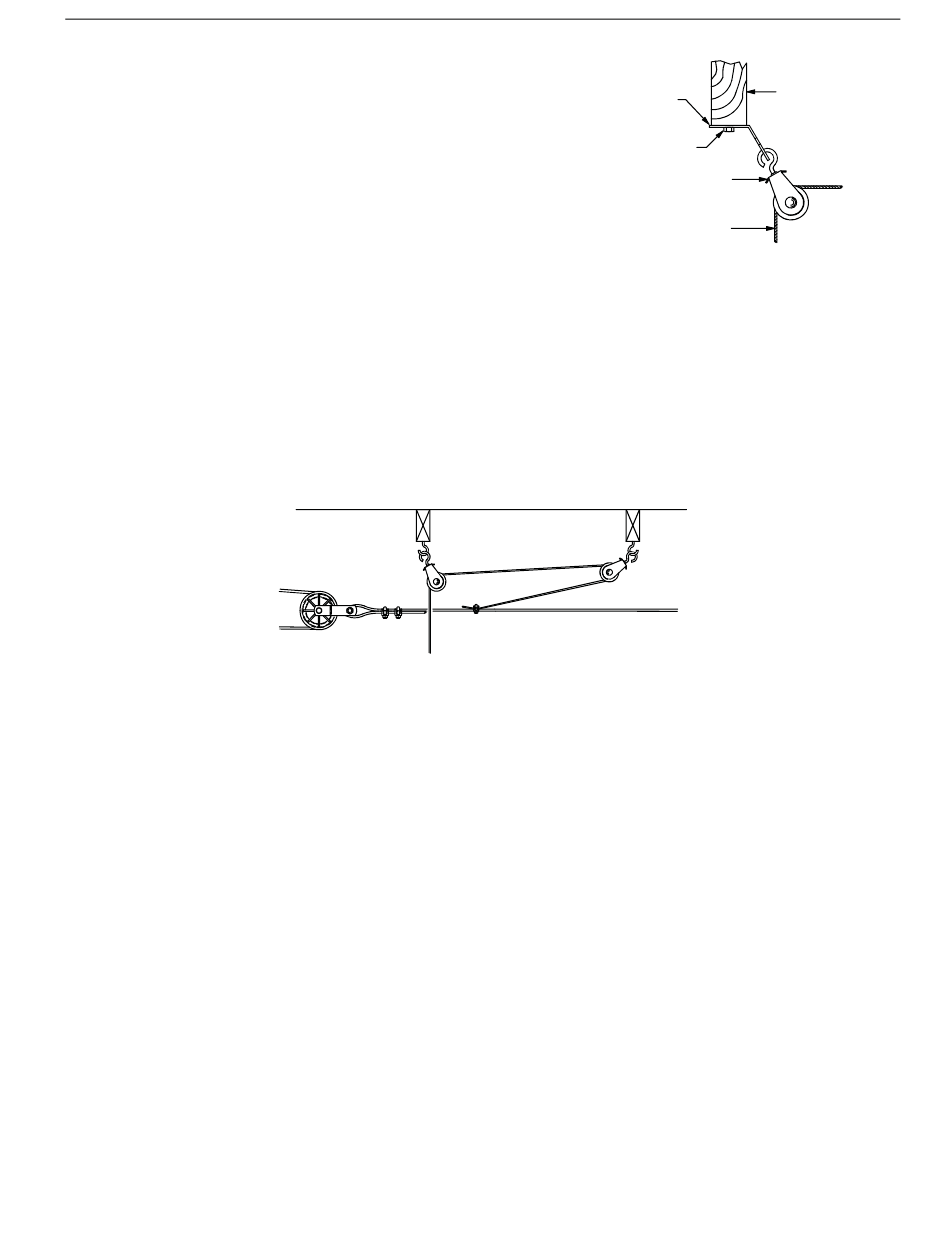

Figure 18. "Throwback" cable arrangement
Installing the Suspension System
2) Ceiling Bracket
3) 1/4" Lag Screw
4) Swivel Pulley
5) 3/32" Drop Cable
Figure 17. Pulley Installation
967-4 2/01
1) Wood Truss
1255-78 1/2001
15
