Mid-Line Control
Sensor Plus Switch:
a. Assemble the Mid-Line Control to the Feeder
Tube as shown in Figure 47.
b. Attach the Switch Box Assembly to the Feeder
Tube with Hose Clamps as shown in Figure 47.
4. Install a toggle switch, out of reach of the birds, to disconnect power to the Mid-Line Control. This
allows the Mid-Line Control to serve as standard feeder when not used as a control feeder.
5. Wire the Mid-Line Control as shown in the wiring diagram section of this manual.
30
MODEL C2® Plus & MODEL G™ Plus Feeding System

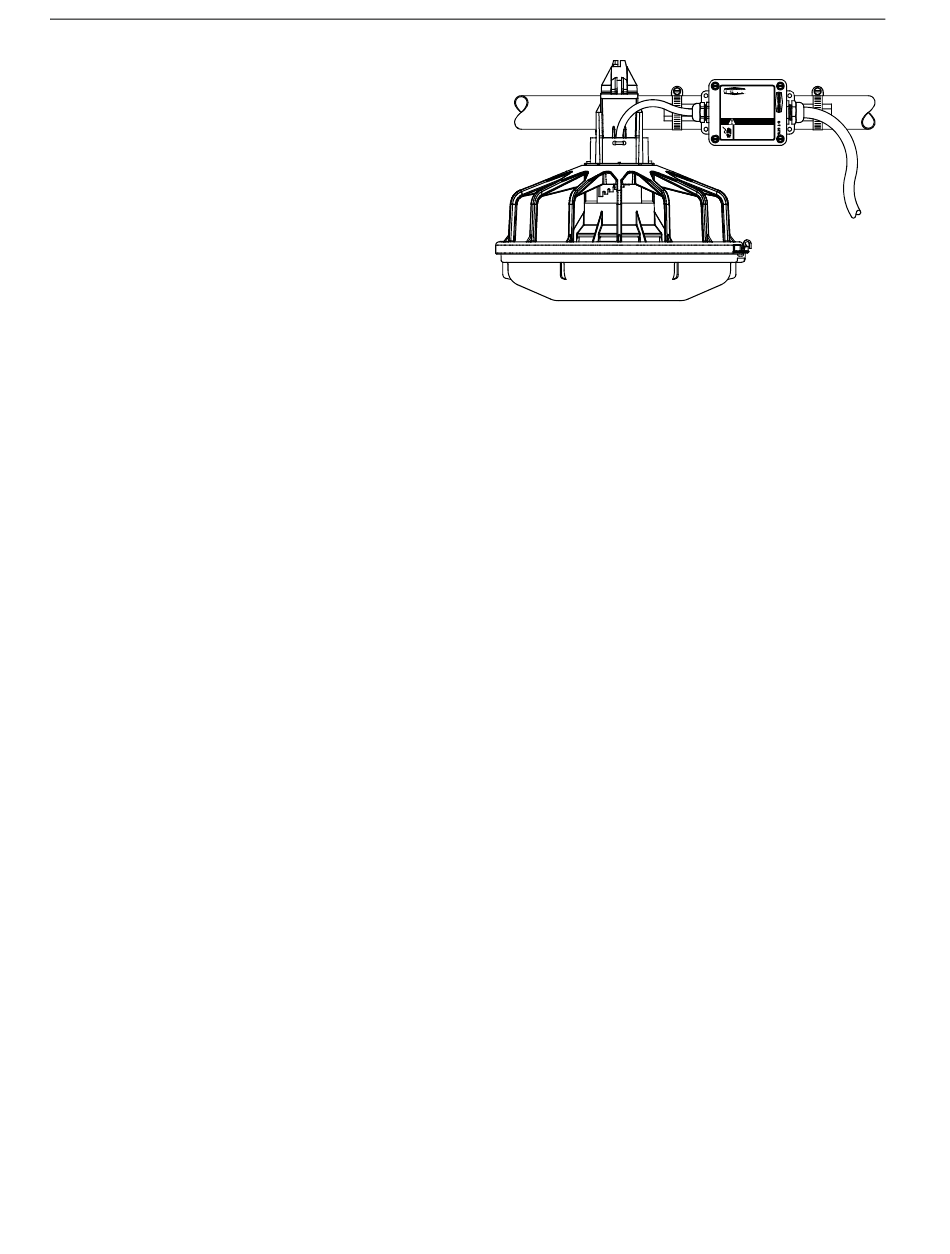

Figure 47. Installing the Sensor Plus Mid Line Control
CHORE-TIME EQUIPMENT
A DIVISION OF CTB INC.
MILFORD, INDIANA 46542-2000
42663 MODEL C2 PLUS
INTERMEDIATE CONTROL
WITH PROXIMITY SWITCH
2529-711
DANGER
ELECTROCUTION HAZARD!
Do not open this control
box until electrical power is
disconnected at circuit breakers.
1255-66 6/01
MF1255C
