Installing the Suspension System MODEL C2® Plus & MODEL G™ Plus Feeding System

Ceiling Hook Installation

The ceiling hook may be used in a variety of installations. Depending on your ceiling or rafter type, install the
Ceiling Hooks as shown in Figures 14 - 17.
Steel Truss Installations
2) Cable Travel
1) Secure Ceiling Hook to truss
using self-drilling screws
through opposite holes

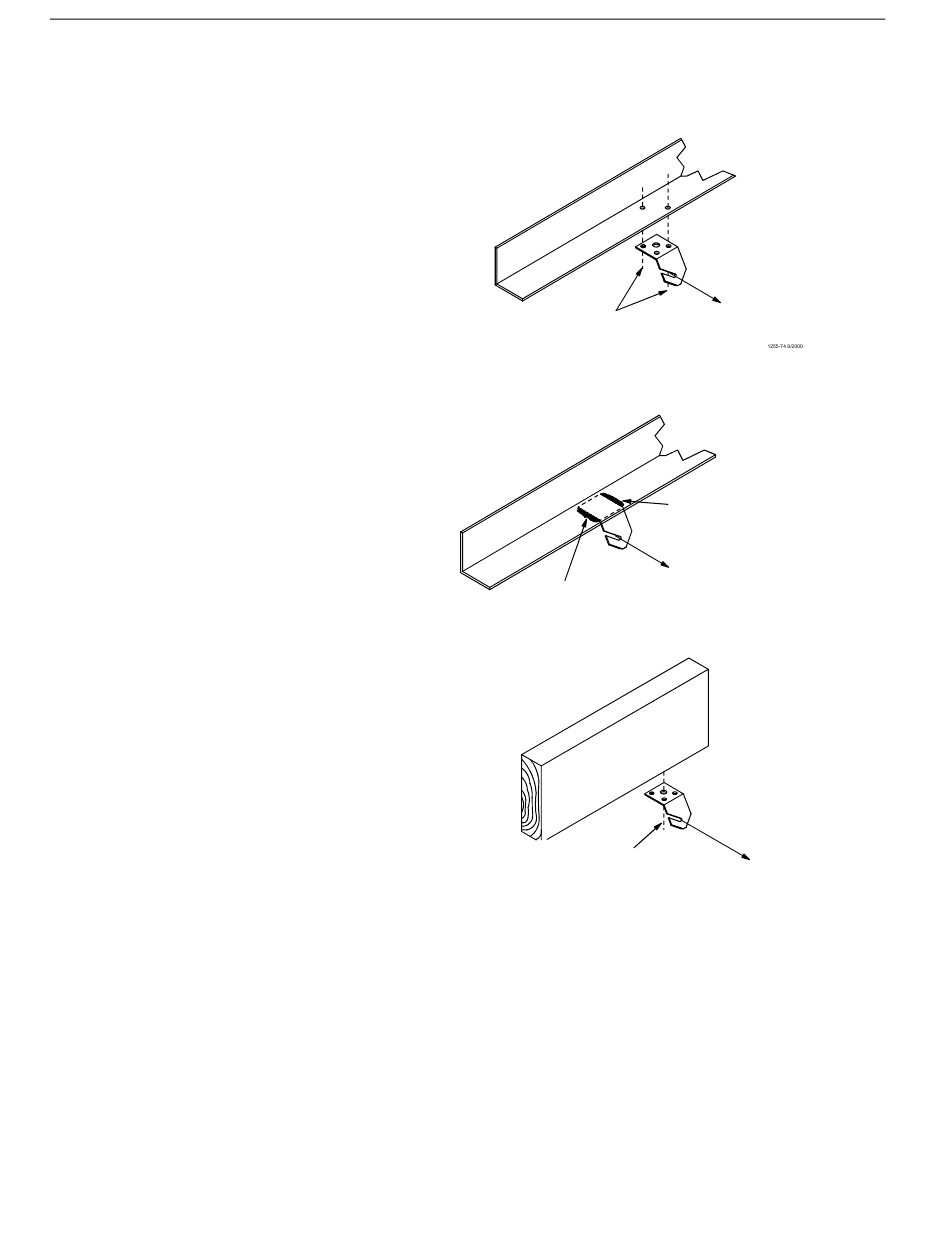

Figure 14. Steel Truss Ceiling Bracket Installation
Steel Truss Welded
Installations
1) Weld Ceiling Bracket
to truss here
2) Cable Travel
1) Weld Ceiling Bracket
to truss here
1255-76 9/2000
Figure 15. Welded Steel Truss Ceiling Bracket Installation
Wood Truss Installations
2) Cable Travel
1) Secure Ceiling Bracket to truss
1255-77 3/2001
using a 1/4" lag screw (not supplied)
through the center hole
Figure 16. Wood Truss Ceiling Bracket Installation
