Screw Hook Installation - Chore-Time C2 Plus Installation And Operator's Manual

MODEL C2® Plus & MODEL G™ Plus Feeding System
4. Route the cable through the Winch
Drum Relief located near the bottom
of the drum. Tighten the set screw to
anchor the cable to the drum. See
Figure 10.
5. Turn the winch drum one full revolution. Guide the
cable against the flange at the bottom of the winch
drum. The cable must not wrap over itself on the
drum, but should be wrapped as close as possible to
each previous wrap. See Figure 11.

Screw Hook Installation

The recommended distance between the
drops for the Model C2 Plus & G Plus is 8'
[2.4 m] on center. Do not exceed 10' [3 m]
spacing on drop lines.
If the distance raised is greater than the
distance between the drop spacings, offset
the hooks 3" [7.6 cm] to each side of the
line to prevent the cable clamps from
catching the pulleys. See Figure 12.
Screw the hook into the truss
the full length of the threads
to prevent bending.
The openings of the screw
hooks must be pointed away
from the direction of travel
when the Power Winch raises
the feeder line.
See Figure 13.
MF1255C
3) Drum Direction
of Rotation
2) 3/16" Main
Winch Cable

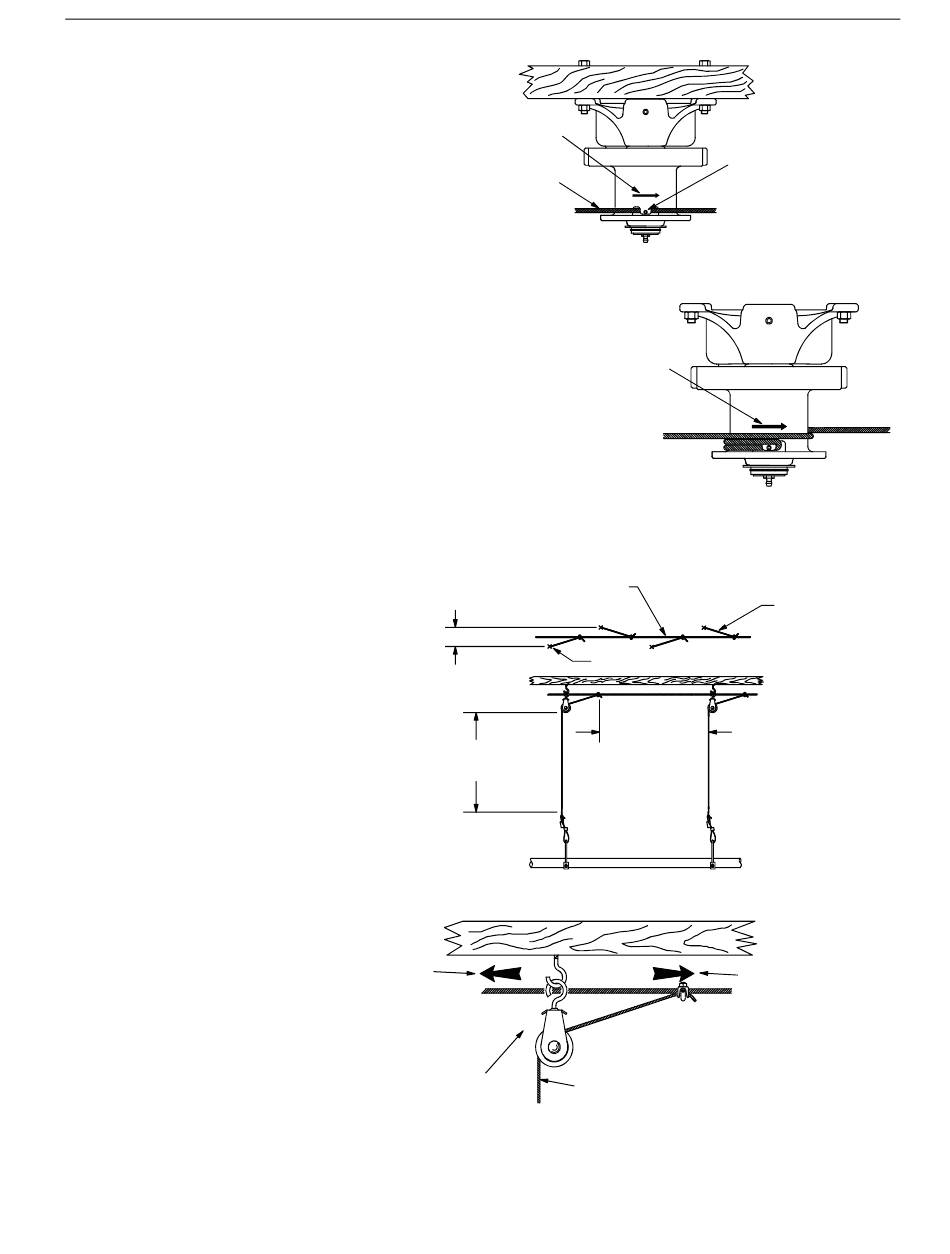

Figure 10. Attaching the Cable to the Power Winch
6) 3" [7.6 cm]
Offset
5) Distance Feeder
is to be Raised
1) Screw Hook
opening facing
opposite direction
of travel
3) 3/16" Main
Winch Cable
Figure 13. Screw Hook Installation
1) Drum Direction
of Rotation
Figure 11. Power Winch Drum Rotation
1) 3/16" [5 mm]
Main Winch Cable
3) Screw Hook or Ceiling Hook Location
4) Distance
of Cable
Travel
Figure 12. Drop Line Off Set Detail
4) 3/32" Drop Cable
Installing the Suspension System
1) Winch Drum Relief
with Set Screw
1255-80 1/2001
1255-81 9/2000
2) 3/32" [2 mm]
Drop Cable
1255-70 1/2001
2) Winch End
(Direction of Travel)
1255-73 1/2001
13
