100 # Hopper Components - Chore-Time C2 Plus Installation And Operator's Manual

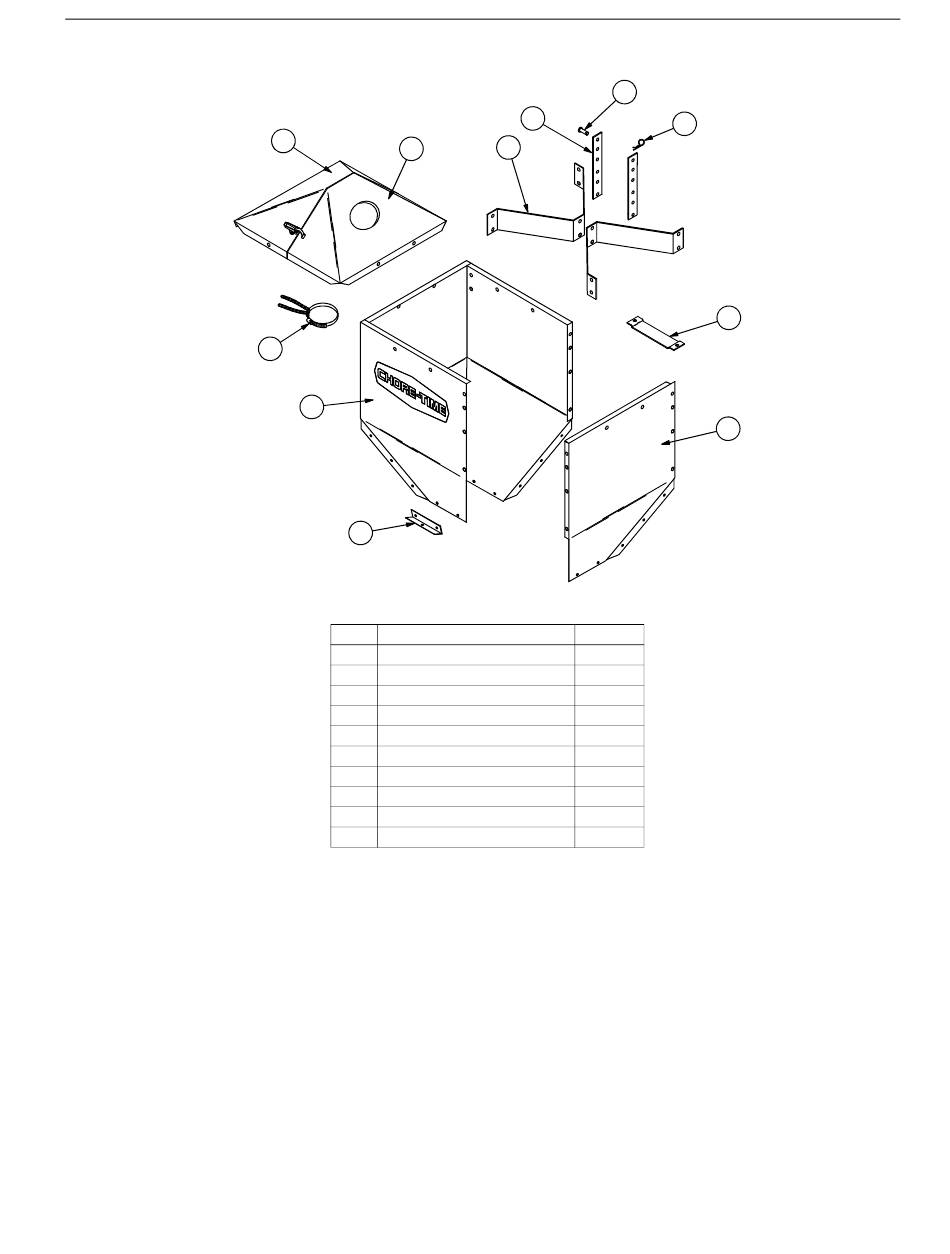

MODEL C2® Plus & MODEL G™ Plus Feeding System

100 # Hopper Components

*These components may be ordered as an assembly under Part No. 28210.
The 100# Hopper Assembly may be ordered under Part No. 28220.
The 100# Hopper Assembly, including the Cover, may be ordered under Part No. 28240.
MF1255C
1
2
10
8
9
Key Description
1* Hopper Cover (w/o hole)
2* Hopper Cover (w/ hole)
3 Hopper Hanger
4 Adjustment Bracket
5 Clevis Pin, 5/16'' x 1''
6 Hair Pin
7 H.L.C Mounting Bracket
8 Hopper Side (w/ hole)
9 Boot Hanger
10 Tube Support Assembly
5
4
6
3
1660-01 10/2000
Part No.
28211
28212
28165
2706
2797-1
2664
28267
24241
28168
14367
Parts Listing
7
8
