Chore-Time C2 Plus Installation And Operator's Manual page 22

Feeder Line Assembly and Suspension
8. Install the Metal Water Tight Connector (item 1) in the Feed Line Motor (item 2). Cut the Flex Conduit (item
3) to length. Slide the wires from the end control through the Flex Conduit (item 3). Install the Flex Conduit
(item 3) in the connectors. Connect the wires to the Feed Line Motor (item 2).
9
9. Attach all covers and wire according to the wiring section of this manual.
10. Pull the auger at the boot end until it begins stretching. Then let it relax. In the relaxed position,
mark the auger at the end of the boot. See Figure 33.
11. Auger stretch:
The auger needs to be stretched 7" [180 mm] per 100' [30 m]. Example: A 300' [90 m] feeder line
requires 21" [500 mm] of stretch.
Beginning at the relaxed position, measure the required amount of stretch. Mark the auger at that
point.
Grip the auger 8" [200 mm] ahead of this mark with locking pliers. Allow the auger to pull back into
the boot so that the pliers rest against the end of the boot. See Figure 34.
22
2
1
10
11

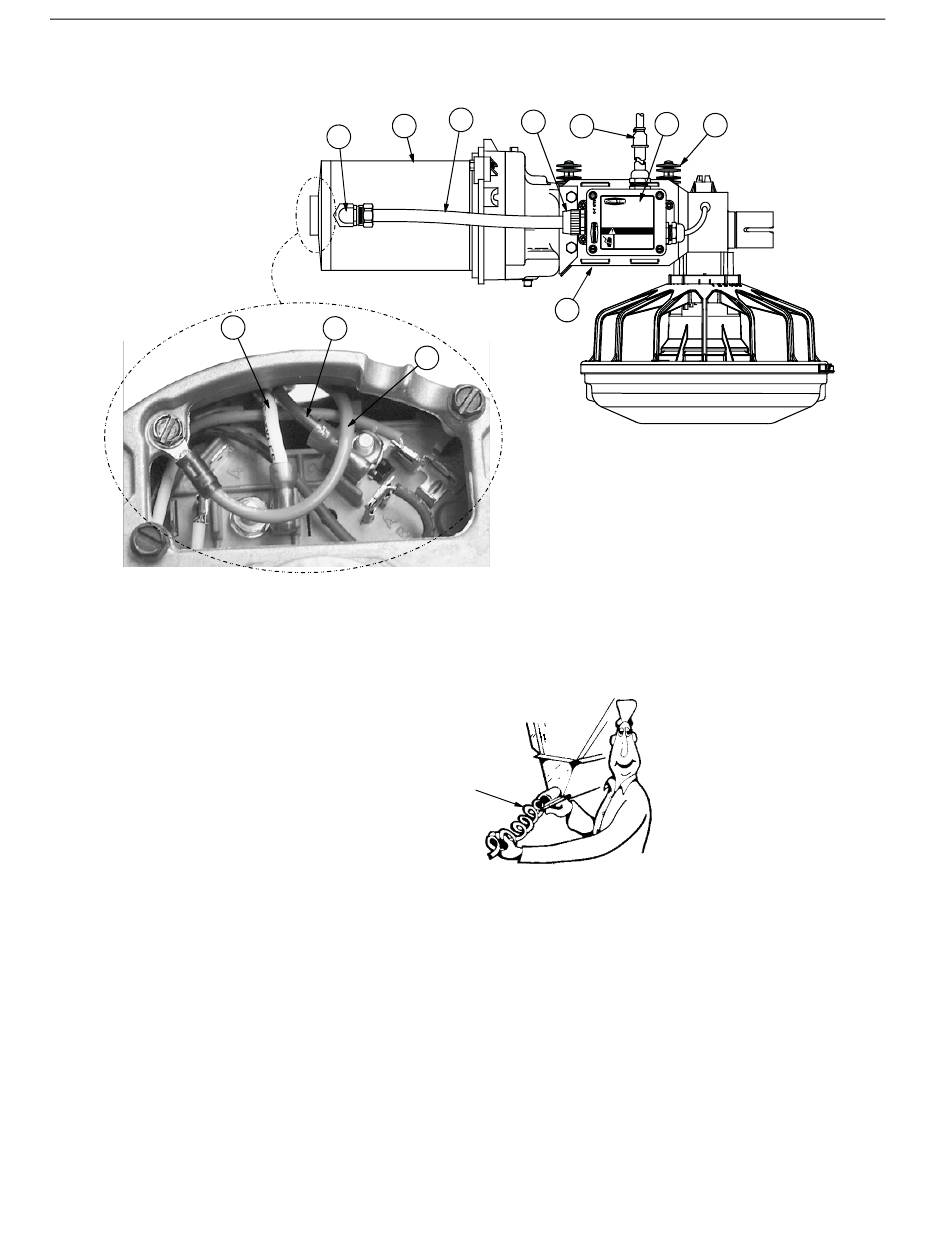

Figure 32. Wiring the Motor
1) Mark the relaxed auger
at the end of the boot
Figure 33. Measure the Auger from the relaxed position
MODEL C2® Plus & MODEL G™ Plus Feeding System
3
4
5
CHORE-TIME EQUIPMENT
A DIVISION OF CTB INC.
MILFORD, INDIANA 46542-2000
42680 MODEL C2 PLUS
END CONTROL
WITH PROXIMITY SWITCH
DANGER
ELECTROCUTION HAZARD!
Do not open this control
box until electrical power is
disconnected at circuit breakers.
8
1255-94 9/2000
6
7
2529-710
1634-08 4/2000
MF1255C
