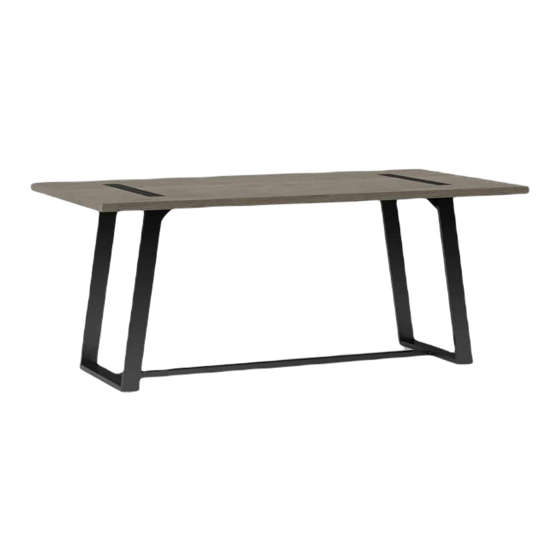

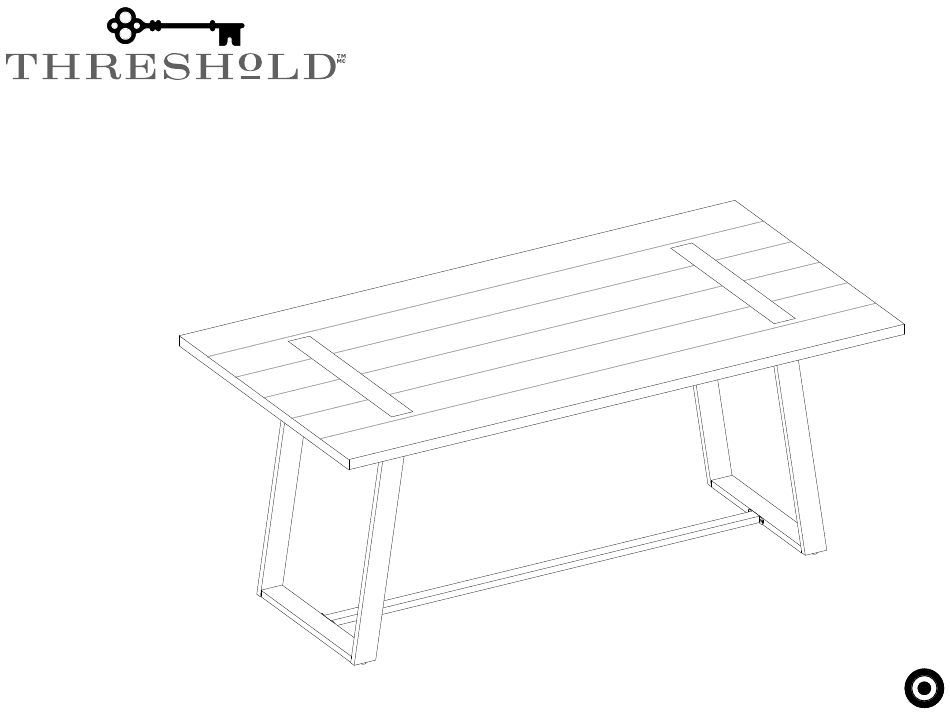

- Page 1 Brimfield Metal Base 72 Inch Rectangle Dining Table Style # C70821-4 DPC-item # 249-04-4468 >> Assembly instructions...
-
Page 2: Before You Begin
Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. Good luck –... - Page 3 table of contents Introduction Hardware Parts list Assembly Care and maintenance and warranty Important safety information Questions? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and article number ready when calling.
- Page 4 hardware (H1) x 16 (H2) x 10 (H3) x 26 (H4) x 26 (H5) x 1 5/8” bolt 1 1/2” bolt lock washer flat washer Hex wrench Spare hardware...
-
Page 5: Item Description
ITEM DESCRIPTION QUANTITY Table top Side frame Upper stretcher Bottom stretcher Left front / right back bracket Right front / left back bracket... - Page 6 step 1. NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H1) x 8 (H3) x 8 5/8” bolt lock washer The metal brackets face inward (H4) x 8...
- Page 7 step 2. NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H1) x 8 (H3) x 8 5/8” bolt lock washer (H4) x 8 flat washer Attach the brackets (E and F) to the side frames (B) and upper stretcher (C).
- Page 8 step 3. NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H3) x 10 (H2) x 10 lock washer 1 1/2” bolt (H4) x 10 flat washer Flip over the previous assembly and attach to the table top (A).
- Page 9 step 4. floor leveler Stand the unit upright and position it at the desired location. If necessary, adjust the floor levelers to level the unit.
-
Page 10: Care And Maintenance
Care and Maintenance • Use a soft, clean cloth that will not scratch the surface when dusting. • Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area. • Using solvents of any kind on your furniture may damage the finish. •... - Page 11 The maximum recommended weight allowance is 181.4 kg / 400 lb for top surface. Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result may tip over onto the child. NEVER allow children to climb or play with the TV or furnishing supporting the TV.
- Page 12 © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
