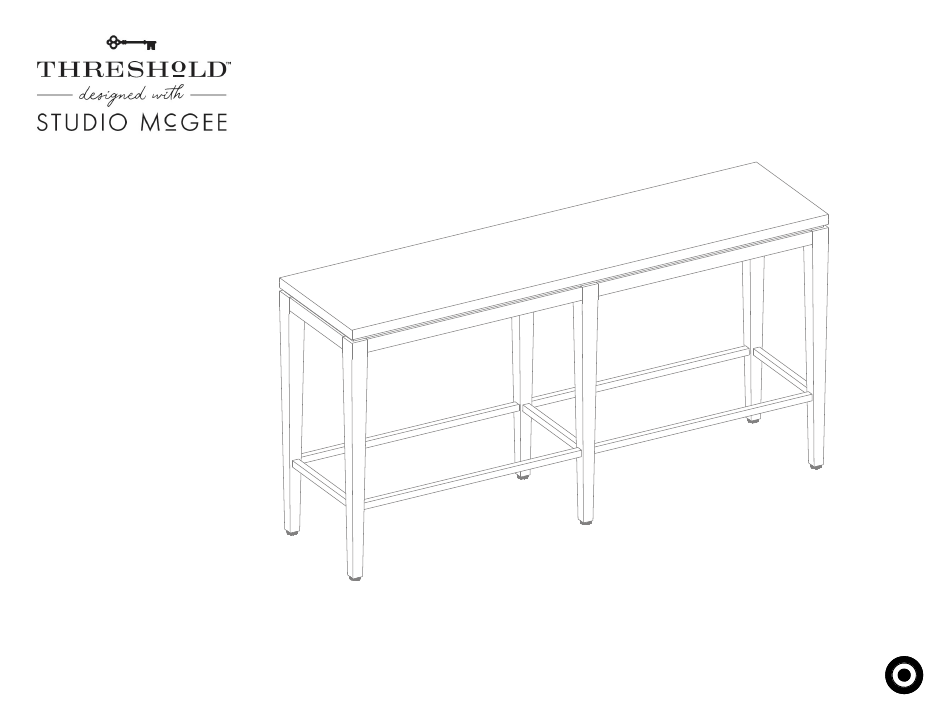

- Page 1 Marvale Console Table Style # TGT60CTB DPC-item #: 249-17-1316 >> Assembly instructions © 2023 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
-
Page 2: Before You Begin
Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. Good luck –... - Page 3 hardware (H1) x 28 (H2) x 28 (H3) x 28 (H4) x 1 (H5) x 2 1/4” x 15 mm bolt lock washer flat washer hex wrench tipping restraint hardware kit (inside plastic bag) Spare hardware...
- Page 4 exploded diagram ITEM DESCRIPTION Top panel Side frame Middle leg Top stretcher Bottom stretcher Middle stretcher...
- Page 5 step 1: attach top stretchers to middle legs NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H1) x 4 (H2) x 4 1/4”...
- Page 6 step 2: attach the assembled top stretchers to top panel The metal brackets face inward. NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier.
- Page 7 step 3: attach middle stretcher to the middle leg NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H1) x 1 (H2) x 1 1/4”...
- Page 8 step 4: attach the other middle leg to the middle stretcher NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H1) x 1 (H2) x 1 1/4”...
- Page 9 step 5: secure the top stretchers to the top panel NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H1) x 4 (H2) x 4 1/4”...
- Page 10 step 6: attach bottom stretchers to middle legs NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H1) x 4 (H2) x 4 1/4”...
- Page 11 step 7: attach one side frame to the previous assembly NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H1) x 5 (H2) x 5 1/4”...
- Page 12 step 8: attach the other side frame to the previous assembly NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H1) x 5 (H2) x 5 1/4”...
- Page 13 step 9: adjust the pre-attached floor levelers CAUTION: Heavy! You may need assistance with this step. Floor leveler 9.1. Now, go back and securely tighten all the bolts. Make sure all the parts are tight and there are no gaps between the parts. This will help keep the unit square. 9.2.
- Page 14 step 10: install the tipping restraint hardware kit Wooden stud Wall Nylon strap Short screw Wall (H5) x 2 tipping restraint hardware kit (inside plastic bag) Long screw Metal bracket Tools required: Phillips screwdriver, stud finder, tape measure, pencil, power drill and 1/8” drill bit (not provided). 10.1.
- Page 15 FURNITURE TIPPING RESTRAINT YOUNG CHILDREN MAY BE INJURED BY TIPPING FURNITURE AND YOU MUST USE THIS TIPPING RESTRAINT TO ATTACH THIS UNIT TO THE WALL, TO PREVENT ACCIDENTS AND/OR INJURIES. TO PROVIDE PROTECTION AGAINST THE UNEXPECTED TIPPING OF FURNITURE DUE TO IMPROPER USE. USE OF TIP-OVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE, THE RISK OF TIP-OVER.
-
Page 16: Care And Maintenance
Care and Maintenance Use a soft, clean cloth that will not scratch the surface when dusting. Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area. Using solvents of any kind on your furniture may damage the finish. ... - Page 17 M A X I M U M R E C O M M E N D E D W E I G H T L O A D S MANUFACTURER: Whalen Furniture Manufacturing CATALOG: Marvale Console Table MODEL # TGT60CTB MAXIMUM LOAD 45.4 kg / 100 lb THIS UNIT IS INTENDED ONLY FOR USE WITHIN THE MAXIMUM WEIGHTS INDICATED.
- Page 18 The maximum recommended weight allowance is 45.4 kg / 100 lb for top surface. Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result may tip over onto the child. NEVER allow children to climb or play with the TV or furnishing supporting the TV.
