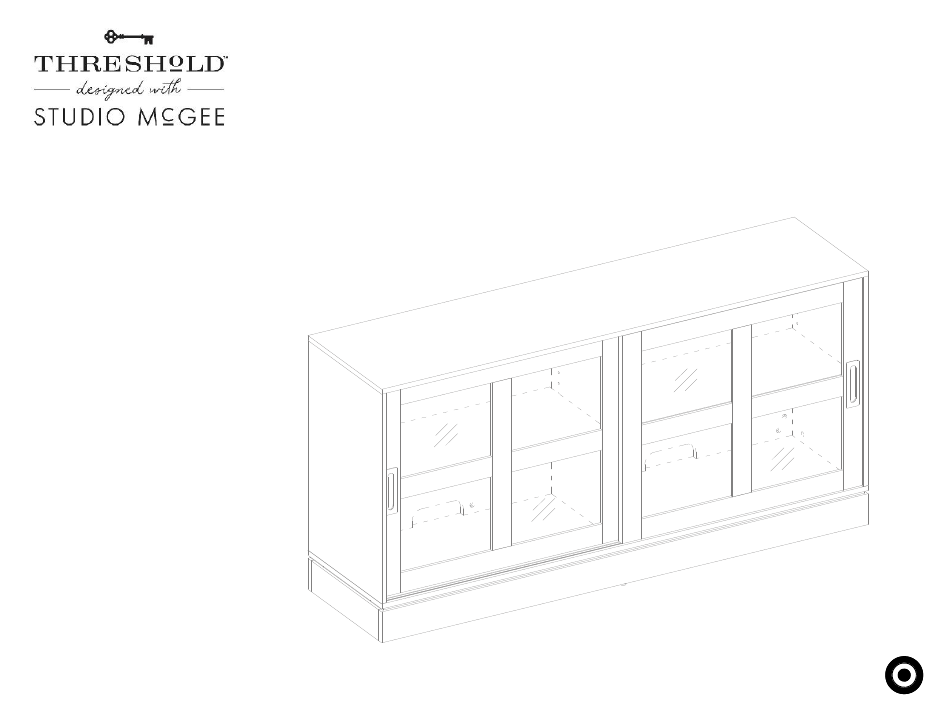

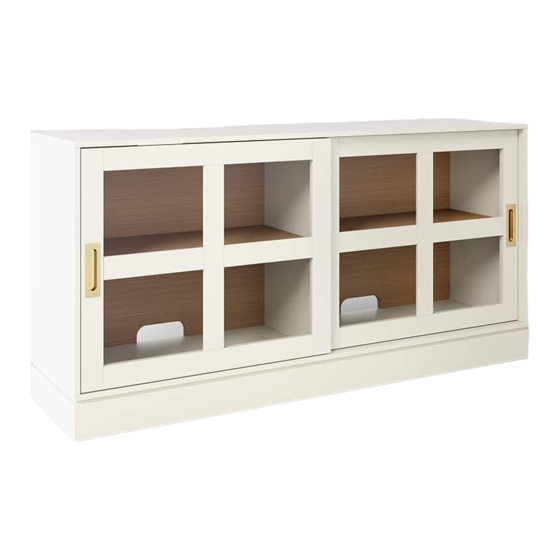

- Page 1 Promontory 60" Sliding Glass Media Stand Style # TGAVC60-19 DPC-item #:249-10-0031 >> Assembly instructions © 2022 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
- Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. Good luck –...
-
Page 3: Table Of Contents
hardware (H1) x 28 (H2) x 28 (H3) x 22 (H4) x 8 (H5) x 28 cam lock cam bolt M8 x 30mm shelf support cam lock cover wood dowel (H6) x 8+1 (H7) x 8 (H8) x 2 (H9) x 2 Spare hardware rubber bumper M3.5 x 12mm screw... - Page 4 exploded diagram ITEM DESCRIPTION Top panel Adjustable shelf Base Middle partition Left sliding door Right sliding door Back panel Side panel...
- Page 5 how to use the cam lock system Push cam into panel - arrow Align cam bolt(s) with cam(s) Screw cam bolt into panel feature on cam top points to and insert all the way into panel edge cross-bored hole(s) 190°-230° Panels should be tight against Rotate cam(s) clockwise each other and connection...
- Page 6 step 1: prepare the top panel, side panels and base assembly (H2) x 28 cam bolt 1.1. Securely screw the cam bolts (H2) into the designated small holes on the top panel (A), the base (C) and the side panels (H).
-
Page 7: (H1) X 8
step 2: attach the back panel between the side panels The cam locks face inward (H1) x 8 (H3) x 4 cam lock M8 x 30mm wood dowel 2.1. Insert four 30mm wood dowels (H3) into the side holes of the back panels (G) at both ends. 2.2. -
Page 8: (H2) X
step 3: attach the previous assembly to the base Floor leveler (H1) x 8 (H3) x 7 cam lock M8 x 30mm wood dowel The floor protectors 3.1. Insert seven 30mm wood dowels (H3) into the bottom inner holes of the panels (H and G). 3.2. -
Page 9: Wood Dowel
step 4: attach the middle partition to the base (H1) x 2 (H3) x 2 cam lock M8 x 30mm wood dowel 4.1. Insert two 30mm wood dowels (H3) into the bottom inner holes of the middle partition (D). 4.2. Align and attach the middle partition (D) to the base (C) with two cam locks (H1). - Page 10 step 5: attach the top panel to the previous assembly (H1) x 10 (H3) x 9 cam lock M8 x 30mm wood dowel 5.1. Insert nine 30mm wood dowels (H3) into the top inner holes of the panels (D, G and H). 5.2.
-
Page 11: (H8) X 2
step 6: fasten the back panels (H8) x 2 M4 x 35mm screw 6.1. With the help of another adult, stand the unit upright. 6.2. Fasten the back panels (G) to the middle partition (D) with two 35mm screws (H8). -
Page 12: (H4) X 8
step 7: install the adjustable shelf (H4) x 8 (H7) x 8 shelf support M3.5 x 12mm screw 7.1. Insert four shelf supports (H4) into the desired holes in the sides of each compartment. Make sure you place the four shelf supports at the same level so the shelf is not tilted. - Page 13 step 8: install the sliding doors Lever Guide pin Door inner view Turn the center screw head clockwise to rise the roller. Turn it counter-clockwise to lower the roller. Sliding roller Door inner view 8.1. Pick up the left sliding door (E) and rest the bottom sliding rollers onto the roller track on the base (C). 8.2.
-
Page 14: (H5) X 28
step 9: Install the cam lock covers and rubber bumpers NOTE: DO NOT slam shut the sliding doors to prevent from damaging and leaving gap. (H5) x 28 (H6) x 8+1 cam lock cover rubber bumper 9.1. Plug the cam lock covers (H5) into the visible cam locks to conceal the cams. 9.2. - Page 15 step 10: install the tipping restraint hardware kit Wooden stud Wall Short screw (H9) x 2 Wall tipping restraint hardware kit (inside plastic bag) Floor leveler Long screw Metal bracket Nylon strap Tools required: Phillips screwdriver, stud finder, tape measure, pencil, power drill and 1/8” drill bit (not provided). 10.1.
- Page 16 Care and Maintenance Use a soft, clean cloth that will not scratch the surface when dusting. Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area. Using solvents of any kind on your furniture may damage the finish. ...
- Page 17 M A X I M U M R E C O M M E N D E D W E I G H T L O A D S MANUFACTURER: Whalen Furniture Manufacturing CATALOG: Promontory 60" Sliding Glass Media Stand MODEL # TGAVC60-19 FITS UP TO MOST 149.9 cm / 59 in DIAGONAL FLAT-PANEL TVS...
- Page 18 The maximum recommended weight allowance is 36.3 kg / 80 lb for top panel. The maximum recommended weight allowance is 22.7 kg / 50 lb for shelves. This unit is not intended for use with CRT TVs. The top surface maximum weight capacity is 80 lbs. (36.3 kg) and maximum load 59 in.
- Page 19 FURNITURE TIPPING RESTRAINT YOUNG CHILDREN MAY BE INJURED BY TIPPING FURNITURE AND YOU MUST USE THIS TIPPING RESTRAINT TO ATTACH THIS UNIT TO THE WALL, TO PREVENT ACCIDENTS AND/OR INJURIES. TO PROVIDE PROTECTION AGAINST THE UNEXPECTED TIPPING OF FURNITURE DUE TO IMPROPER USE. USE OF TIP-OVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE, THE RISK OF TIP-OVER.
