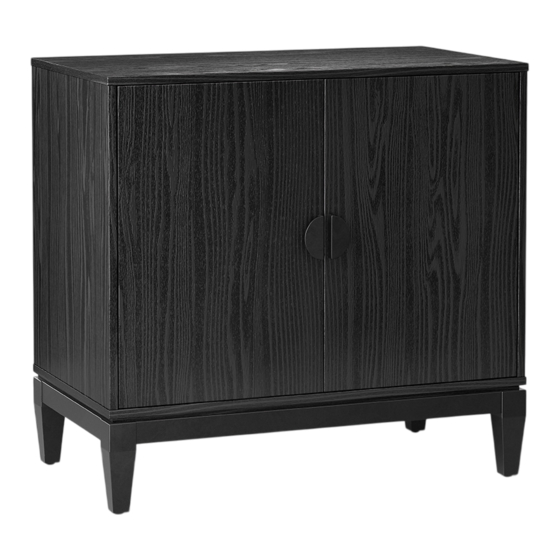

Threshold Studio McGee Marvale TGT32CB-2 Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

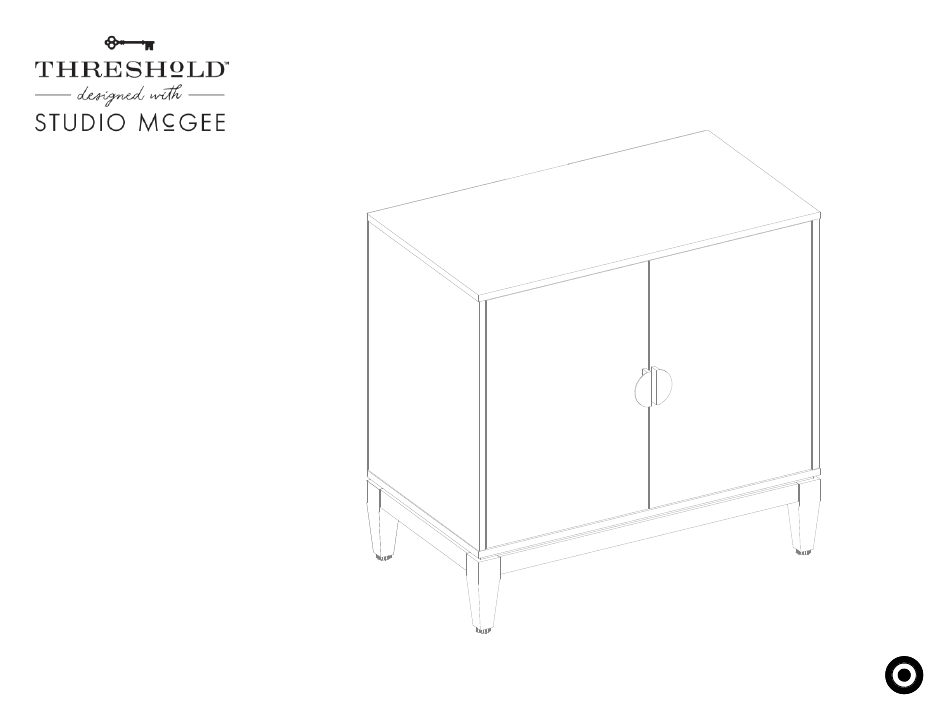

Marvale 2 Door Cabinet
Style # TGT32CB-2
DPC-item #: 249-17-0104
>> Assembly instructions
TM
© 2023 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Studio McGee Marvale TGT32CB-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Threshold Studio McGee Marvale TGT32CB-2

Summary of Contents for Threshold Studio McGee Marvale TGT32CB-2

  • Page 1 Marvale 2 Door Cabinet Style # TGT32CB-2 DPC-item #: 249-17-0104 >> Assembly instructions © 2023 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.

  • Page 2: Before You Begin

    Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. Good luck –...
  • Page 3 hardware (H1) x 8 (H2) x 8 (H3) x 8 (H4) x 12 (H5) x 12 cam lock cam bolt M8 x 30 mm 1/4” x 15 mm bolt lock washer wood dowel (H10) x 1 (H6) x 12 (H7) x 16 (H8) x 4 (H9) x 4 door stopper...
  • Page 4 hardware (H16) x 8 (H17) x 1 (H18) x 2 Spare hardware cam lock cover hex wrench tipping restraint hardware kit (inside plastic bag)
  • Page 5 exploded diagram ITEM DESCRIPTION Top panel Back panel Side panel Leg assembly Door Top reinforcement Adjustable shelf Bottom panel Bottom side stretcher...

  • Page 6: How To Use The Cam Lock System

    how to use the cam lock system Push cam into panel - arrow Align cam bolt(s) with cam(s) Screw cam bolt into panel feature on cam top points to and insert all the way into panel edge cross-bored hole(s) 190°-230° Panels should be tight against Rotate cam(s) clockwise each other and connection...
  • Page 7 step 1: attach both bottom side stretchers to one leg assembly NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H4) x 2 (H5) x 2 1/4”...
  • Page 8 step 2: attach the other leg assembly to the previous assembly NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H4) x 2 (H5) x 2 1/4”...
  • Page 9 step 3: attach the door stopper to the top panel NOTE: DO NOT use power tools. (H10) x 1 (H11) x 2 door stopper M3 x 10 mm screw Pilot holes 3.1. Using the pilot holes as a guide, attach the door stopper (H10) to the top panel (A) with two 10 mm screws (H11).
  • Page 10 step 4: attach the top reinforcement NOTE: DO NOT use power tools. (H8) x 4 Countersunk holes M4 x 38 mm screw 4.1. Using the pilot holes as a guide, fasten the top reinforcement (F) to the underside of the top panel (A) with four 38 mm screws (H8).
  • Page 11 step 5: prepare the top and bottom assembly (H2) x 8 cam bolt 5.1. Securely screw the cam bolts (H2) into the designated small holes on the top and bottom panels (A and H).
  • Page 12 step 6: attach both side panels to the top panel (H1) x 4 (H3) x 4 cam lock M8 x 30 mm wood dowel The pilot holes for door hinges face inward and are located at the front of the unit. 6.1.
  • Page 13 step 7: attach the bottom panel to both side panels (H1) x 4 (H3) x 4 cam lock M8 x 30 mm wood dowel 7.1. Insert four wood dowels (H3) into the bottom inner holes of the side panels (C). 7.2.
  • Page 14 step 8: fasten the back panel Adhesive tape faces outward CAUTION: Heavy! You may need assistance with this step. (H7) x 16 M3.5 x 15 mm washer head screw 8.1. Now, go back and tighten all cam locks and screws. Make sure all the parts are tight and there are no gaps between the parts. This will help keep the unit square.
  • Page 15 step 9: attach base to the bottom panel NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H4) x 8 (H5) x 8 1/4”...
  • Page 16 step 10: install the door hinges and handles NOTE: DO NOT use power tools. (H12) x 4 (H13) x 8 door hinge M4 x 15 mm screw (Nickel) (H14) x 2 (H15) x 4 Handle M4 x 18 mm handle bolt 10.1.
  • Page 17 step 11: attach the door panels CAUTION: Heavy! You may need assistance with this step. (H13) x 16 M4 x 15 mm screw (Nickel) 11.1. Ask for assistance to lift the assembled unit upright and position it near the final location. 11.2.
  • Page 18 step 12: attach the adjustable shelf and put cam lock covers (H9) x 4 (H16) x 8 shelf support cam lock cover 12.1. Open the doors and insert four shelf supports (H9) in the holes at the desired height inside the compartment. Make sure you place the four shelf supports at the same level to make the shelf level.
  • Page 19 step 13: adjust the doors Depth adjustment Horizontal adjustment Vertical adjustment Floor leveler 13.1. Raise or lower the floor levelers by hand to correct tilting and / or level doors.
  • Page 20 step 14: install the tipping restraint hardware kit Wooden stud Wall Short screw Wall (H18) x 2 tipping restraint hardware kit Metal bracket Nylon strap Long screw Tools required: Phillips screwdriver, stud finder, tape measure, pencil, power drill and 1/8” drill bit (not provided). 14.1.
  • Page 21 FURNITURE TIPPING RESTRAINT YOUNG CHILDREN MAY BE INJURED BY TIPPING FURNITURE AND YOU MUST USE THIS TIPPING RESTRAINT TO ATTACH THIS UNIT TO THE WALL, TO PREVENT ACCIDENTS AND/OR INJURIES. TO PROVIDE PROTECTION AGAINST THE UNEXPECTED TIPPING OF FURNITURE DUE TO IMPROPER USE. USE OF TIP-OVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE, THE RISK OF TIP-OVER.

  • Page 22: Care And Maintenance

    Care and Maintenance  Use a soft, clean cloth that will not scratch the surface when dusting.  Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area.  Using solvents of any kind on your furniture may damage the finish. ...
  • Page 23 M A X I M U M R E C O M M E N D E D W E I G H T L O A D S MANUFACTURER: Whalen Furniture Manufacturing CATALOG: Marvale 2 Door Cabinet MODEL # TGT32CB-2 MAXIMUM LOAD 22.7 kg / 50 lb THIS UNIT IS INTENDED ONLY FOR USE WITHIN THE MAXIMUM WEIGHTS INDICATED.
  • Page 24 The maximum recommended weight allowance is 22.7 kg / 50 lb for top surface, shelf and bottom panel. Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result may tip over onto the child. NEVER allow children to climb or play with the TV or furnishing supporting the TV.
