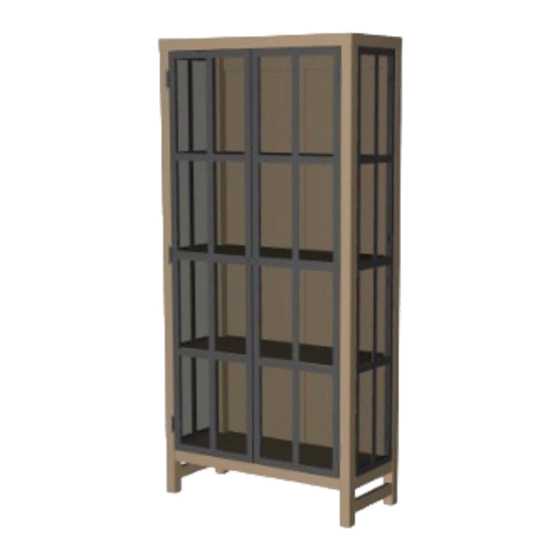

Bountiful Wood and Glass Tall Cabinet
Style #: TGT63BK
DPC-item #: 249-17-0038
>> Assembly instructions
TM
© 2021 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the STUDIO MCGEE TGT63BK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Threshold STUDIO MCGEE TGT63BK

Summary of Contents for Threshold STUDIO MCGEE TGT63BK

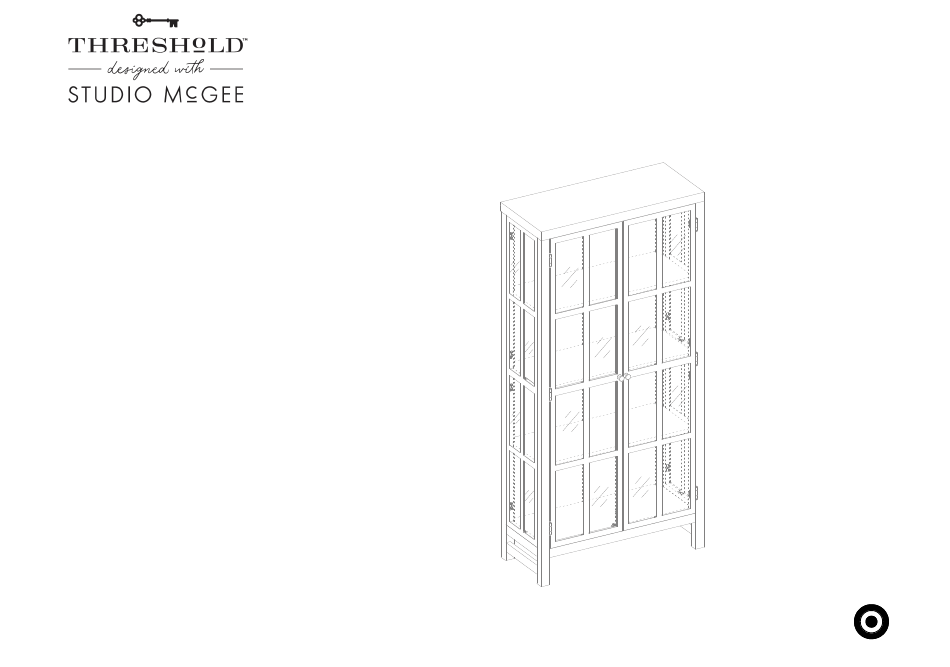

  • Page 1 Bountiful Wood and Glass Tall Cabinet Style #: TGT63BK DPC-item #: 249-17-0038 >> Assembly instructions © 2021 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
