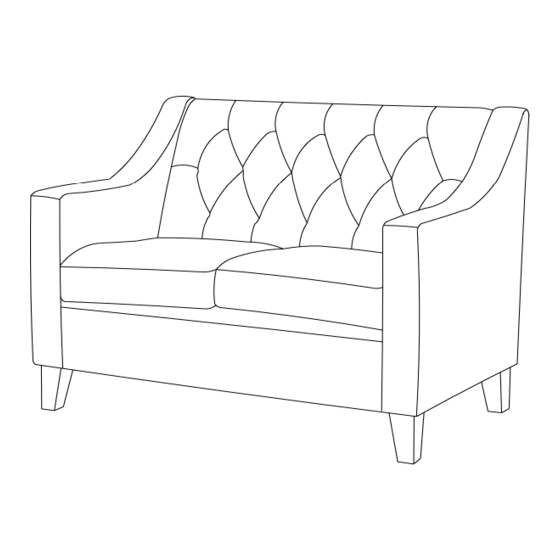

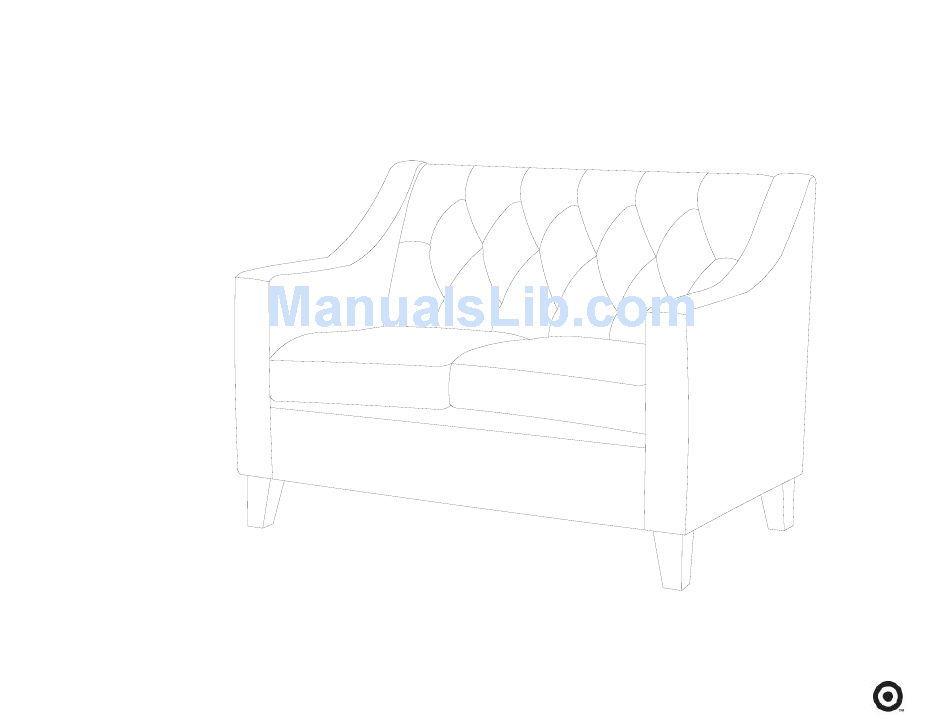

- Page 1 # TG3930UC-LS TG3930UG-LS TG3930UN-LS TG3930UP-LS TG3930UGR-LS dpci # 249-08-1656 249-08-1510 249-08-0943 249-08-0942 249-08-3463 >>>assembly instructions...
-
Page 2: Before You Begin
Congratulations on your latest Target purchase. Now what? Don't start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you'll be on your way to transforming your room in no time. - Page 3 table of contents introduction hardware parts list assembly 6-12 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846). For faster service, have the style number and DPCI number ready when calling.
- Page 4 hardware (H1) x 2 (H2) x 4 hex socket head bolt hex socket head bolt 1.77" 1.18" (H3) x 2 (H4) x 4 (H5) x 2 (H6) x 1 flat washer flat washer spring washer allen key ø22mm ø16mm ø12.5mm (H7) x 1 allen key...
- Page 5 ITEM DESCRIPTION QUANTITY left arm right arm chair back front panel seat panel seat cushion foot plastic washer...
- Page 6 step 1. 1. Attach left arm (A) to chair back (C) by inserting the metal bracket on chair back (C) into the metal glide on left arm (A). Push the chair back (C) with a downward force to secure it into place. 2.
- Page 7 step 2. H3 H5 H1 (H1) x 2 (H5) x 2 hex socket head bolt spring washer 1.77" ø12.5mm (H3) x 2 (H6) x 1 flat washer allen key ø22mm 1. Attach left arm (A) and right arm (B) to chair back (C) with hex socket head bolts (H1), flat washers (H3) and spring washers (H5).
- Page 8 step 3. H4 H2 (H4) x 4 (H2) x 4 (H7) x 1 flat washer hex socket head bolt allen key ø16mm 1.18" 1. Install hex socket head bolts (H2) and flat washers (H4) into arms (A & B). Use Allen Key (H7). DO NOT tighten the bolts.
- Page 9 step 4. 1. Hook front panel (D1) to left arm (A) & right arm (B) as shown below. Push front panel (D1) with a downward force to lock it into place. 2. Secure front panel (D1) to arms (A & B) by tightening the hex socket head bolts (H2) inserted in step 3 with Allen key (H7).
- Page 10 step 5. 1. Attach feet (F) to arms (A & B) with plastic washers (G) by rotating clockwise. NOTE: Plastic washers (G) must pass through the bolt pre-installed on feet (F) before attaching feet (F) to the arms (A & B). 2.
- Page 11 step 6. 1. Place seat panel (D2) on the assembled frame.
- Page 12 step 7. 1. Place seat cushions (E) on the seat panel (D2).
- Page 13 © 2008 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
