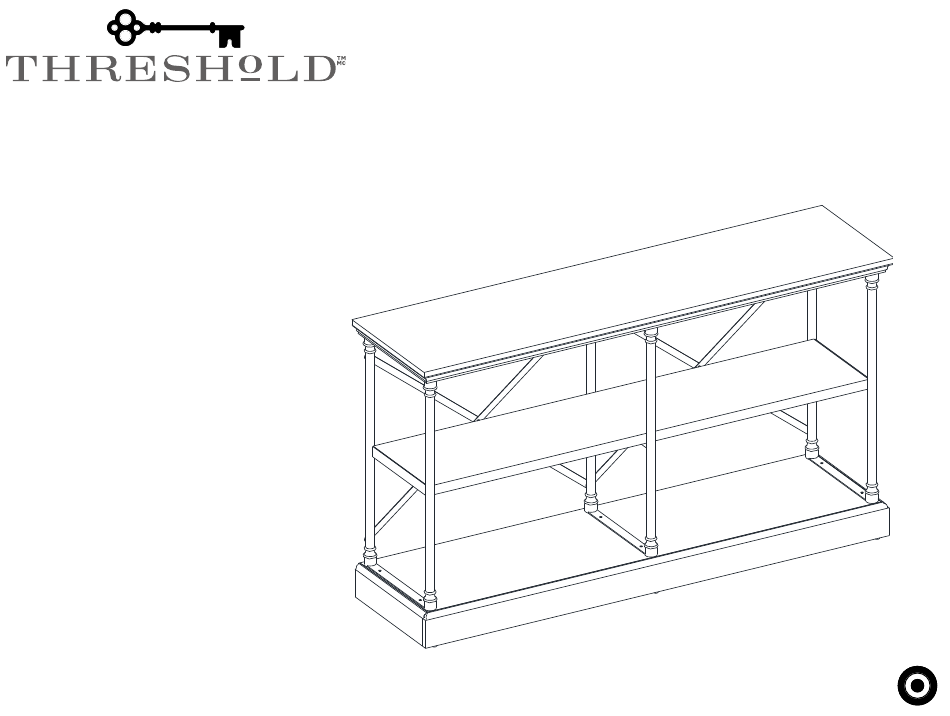

- Page 1 Conway Cast Iron Horizontal Bookcase Style #: T71114-2A DPC-item #: 249-14-5145 >> Assembly instructions...
-
Page 2: Before You Begin
Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. Good luck –... - Page 3 table of contents Introduction Hardware Parts list How to use the cam lock system Assembly 7-14 Care and maintenance and warranty Important safety information Serious or fatal crushing injuries can occur from furniture tip-over. To help prevent tip-over: • Install tip-over restraint provided. •...
- Page 4 hardware (H5) x 2 (H1) x 16 (H2) x 16 (H3) x 12 (H4) x 22 1/4” x 1” bolt cam lock cam bolt M8 x 30 mm wood dowel 1/4” x 5/8” bolt (H6) x 2 (H7) x 2 (H8) x 1 (H10) x 2 (H9) x 1...
- Page 5 ITEM DESCRIPTION QUANTITY Left side frame Middle frame Right side frame Top panel Middle shelf Bottom panel Front skirting Back skirting Side skirting Metal stretcher...
-
Page 6: How To Use The Cam Lock System
how to use the cam lock system 180°... - Page 7 step 1. (H2) x 16 cam bolt Screw-in cam bolts must be screwed down flush.
- Page 8 step 2. The cam locks face inward (H1) x 4 (H3) x 4 cam lock M8 x 30 mm wood dowel Attach the front and back skirting boards (G and H) between both side skirting boards (I and J).
- Page 9 step 3. NOTE: Try working from one end to the other to slide the assembled base into place. You may need to push or pull the skirts or loosen the cam locks slightly to get them to align with the holes.
- Page 10 step 4. The threaded sockets for stretchers on opposite side NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H4) x 6 1/4”...
- Page 11 step 5. NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H4) x 6 1/4” x 5/8” bolt Align and attach the top panel (D) to the frames (A, B and C).
- Page 12 step 6. NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H4) x 6 (H6) x 2 1/4” x 5/8” bolt hex nut (H7) x 2 1/4”...
- Page 13 step 7. NOTE: DO NOT fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. (H4) x 4 (H5) x 2 1/4” x 5/8” bolt 1/4”...
- Page 14 step 8. Wooden stud Wall Short screw Wall (H9) x 2 tipping restraint hardware kit Metal bracket Long screw Restraint strap Tools required: Phillips screwdriver, stud finder, mallet, power drill and 1/8” drill bit. Follow the instructions printed on plastic bag containing tipping restraint hardware to attach tip-over restraint between the unit and wall. NOTE: You must use this tipping restraint to attach this unit to the wall, to prevent accidents and/or injures.
-
Page 15: Care And Maintenance
Care and Maintenance • Use a soft, clean cloth that will not scratch the surface when dusting. • Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area. • Using solvents of any kind on your furniture may damage the finish. •... - Page 16 The maximum recommended weight allowance is 90.7 kg / 200 lb for top and bottom panels. The maximum recommended weight allowance is 22.7 kg / 50 lb for middle shelf. Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result may tip over onto the child.
