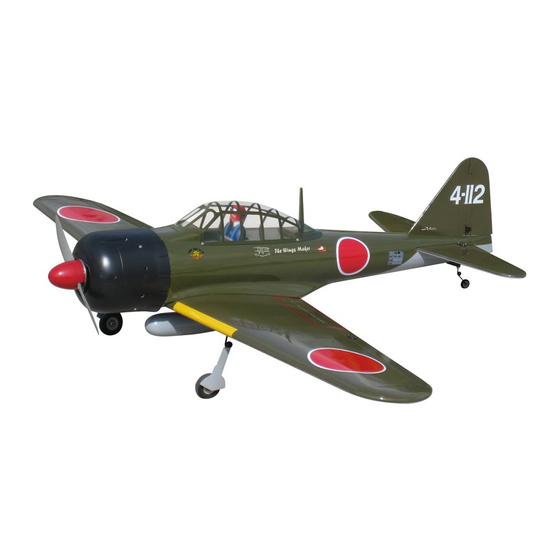

Zero Fighter 60S
0.60-0.75 cu. in. displacement 2-stroke
Requires : 6-channel radio w/ 6 standard servos
Wing Span
Wing Area
Flying Weight
Fuselage Length
Wa rning ! This m ode l is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual
at hand for quick reference.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
All manuals and user guides at all-guides.com
and 1 low profile retract servo
Specifications
* Specifications are subject to change without notice.*
60.0 in / 1520 mm
635 sq in / 41.0 sq dm
7.5 lbs / 3400 g
45.5 in / 1150 mm
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
INSTRUCTION MANUAL
MADE IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Zero Fighter 60S and is the answer not in the manual?

Questions and answers

Related Manuals for THE WORLD MODELS Zero Fighter 60S

Summary of Contents for THE WORLD MODELS Zero Fighter 60S

  • Page 1 All manuals and user guides at all-guides.com INSTRUCTION MANUAL Zero Fighter 60S 0.60-0.75 cu. in. displacement 2-stroke Requires : 6-channel radio w/ 6 standard servos and 1 low profile retract servo Specifications Wing Span 60.0 in / 1520 mm Wing Area 635 sq in / 41.0 sq dm...

  • Page 2: Before You Begin

    All manuals and user guides at all-guides.com Zero Fighter 60S I N D E X BEFORE YOU BEGIN P. 1 P. 2 PARTS LIST P.3-10 ASSEMBLY SAFETY PRECAUTIONS P.11 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do.
  • Page 3 All manuals and user guides at all-guides.com Parts List 13. COWLING --1 pc. 1. MAIN WING -- 1 pair TRANSPARENT 3D TEMPLATE -- 1 pc. SCREW PA3x12mm -- 4 pcs 2. RETRACTABLE LANDING GEAR -- 1 set SCREW PM3x8mm -- 4 pcs SCREW KA3x14mm -- 8 pcs WASHER d3xD7mm -- 8 pcs RIGHT ANGLE WHEEL SPACER -- 2 sets...

  • Page 4: Aileron Servo

    All manuals and user guides at all-guides.com Main Wing Peel off shaded portion covering film Aileron Servo Lead Pre-glued Bottom View 3mm Set Screw Retractable Langing Gear Set Screw KA3x14mm Collar 4.1mm Screw KA3x14mm Bottom View Aileron Servo PWA2x8mm Screw Balsa Wood PWA2 x 8mm 8x8x21mm...
  • Page 5 All manuals and user guides at all-guides.com Ø1mm pilot holes for The World Models tri-horn are pre-drilled. Aileron Servo Please look for pin-hole marks at under side of control surfaces. PB2x12mm Screw PB2x12mm Fuel Tube Straper PB2x16mm Clevis 6x5mm Ø Tri-Horn Screw PB2x16mm...
  • Page 6 All manuals and user guides at all-guides.com Flap Servo Plywood 2x8x20mm Ring Ф2.3mm Peel off shaded portion covering film. 1.5mm Straper TWM PL8210010 Fuel Tube CLEVIS WRENCH 6x5mm Clevis Ring Stabilizer/ Elevator A = A' (Stabilizer) (Main Wing) B=B' Temporary install the main wing,adjust leveling of the stabilizer to make it as parallel to the main wing as possible.

  • Page 7: Engine Mount

    All manuals and user guides at all-guides.com Vertical Fin / Rudder Pre-glued Screw Pre-glued PA3x12mm Pre-glued Set Screw Collar 2.1mm 3mm Set Screw PA3x12mm Fuel Tank Install Balsa 10x10x113mm (For Fuel Tank Position Fixing) Fuel Tank 380cc 380cc Bottom View Engine Mount M4x25mm Socket Head Screw...
  • Page 8 All manuals and user guides at all-guides.com Install Engine position Engine Spinner 62mm M4x30mm Socket Head Screw Fire Wall Plastic Tube Washer d4xD9mm d2xD3x200mm 115mm 4.53 in. M4 Nut M4x30mm Illustration is for side mounting. You can mount the engine upright or invertecl simply by rotating the d4xD9mm engine mount.

  • Page 9: Rudder Pushrod

    All manuals and user guides at all-guides.com Ø1mm pilot holes for The World Models tri-horn are pre-drilled. Rudder Pushrod Please look for pin-hole marks at side of control surfaces. Screw PB2x12mm TWM PL8210010 CLEVIS WRENCH Peel off shaded portion covering film.

  • Page 10: Radio Equipment

    All manuals and user guides at all-guides.com Radio Equipment Fix the throttle servo tray either to the right or left side of the fuselage according to your throttle pushrod Included with the location. Radio Set. J1(Pushrod Ø1.8x80mm) Plywood 3x44x121mm J2(Pushrod Ø1.8x655mm) Plywood 6x60x119mm Balsa 7x7x40mm...
  • Page 11 All manuals and user guides at all-guides.com Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. A = A' B = B' C = C' Control Trows Adjust the control throws as shown in the diagram. These throws are good for Elevator general flying.
  • Page 12 # First time flyer should never fly by himself / herself. Assistance from experienced flyer is absolutely necessary. # Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly pre-adjusted aircraft. Zero Fighter 60S 2C 0.60-0.75 is specially designed to be powered by engine, using a more powerful engine does not mean better performance.
  • Page 13 All manuals and user guides at all-guides.com LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.
  • Page 14 All manuals and user guides at all-guides.com Usage of the transparent 3D template This transparent 3D template is used for position guidance of the actual cutting of the pre-painted cowling. Simply cut the transparent 3D template to fit your engine and exhaust pipe, then slide onto the actual cowling and use as template to mark the openings required for final cutting.

  • Page 15: Optional Parts ( Accessories)

    All manuals and user guides at all-guides.com Optional Parts ACCESSORIES) 180mm Extension Fuel Filler Code No. Size Package Code No. Size Package KW0011800 PL8110030 180mm 1 set 15 x 22 x 49mm 1 x 1 pc 180mm Y-Cord Code No. Size Package KW0021800...
  • Page 16 All manuals and user guides at all-guides.com Ｐａｔｔｅｒｎ Ｄｕｃｔｅｄ　Ｆａｎ Ｆｕｎｆｌｙ Ｗａｒｂｉｒｄｓ Ｓｃａｌｅ Ｅｌｅｃｔｒｉｃ Ｓｐｏｒｔｓ Ｇｌｉｄｅｒ　 Ｂｏａｔ Ｔｒａｉｎｅｒ Ａｃｃｅｓｓｏｒｉｅｓ Ｃｏｖｅｒｉｎｇ （Ｌｉｇｈｔｅｘ　／　Ｔｏｕｇｈｌｏｎ） The World Models Manufacturing Co., LTD. www.theworldmodels.com A064SPO22420911...
