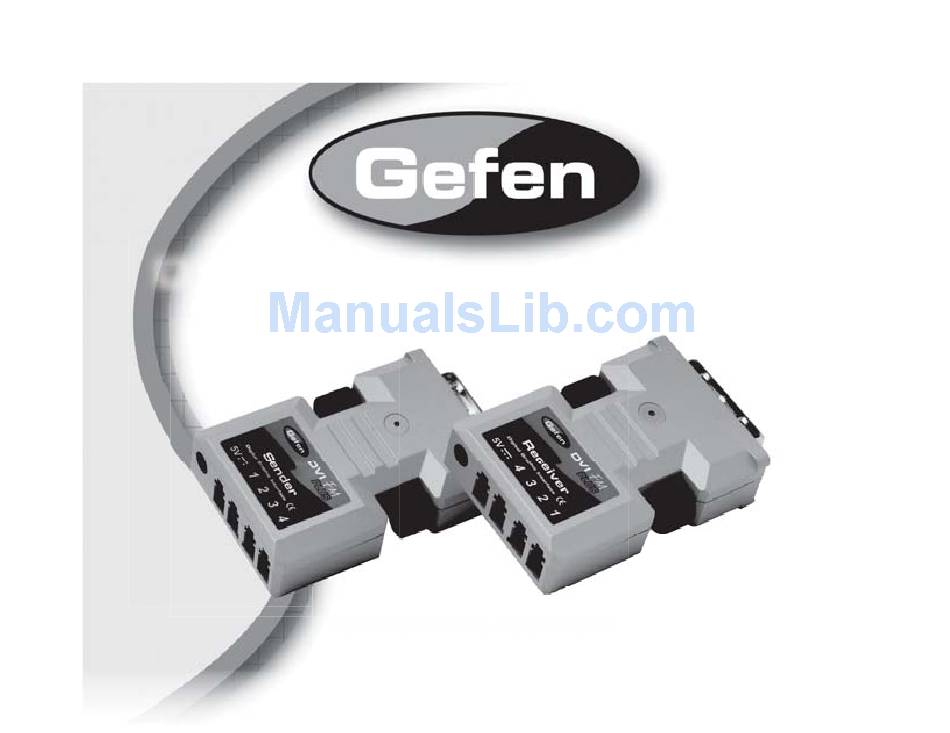

- Page 1 DVI Fiber Optic Extender EXT-DVI-FMP User Manual User Manual www.gefen.com www gefen com...
- Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. DVI FMP is a trademark of Gefen, LLC © 2010 Gefen, LLC, All Rights Reserved...
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Sender/ Receiver Panel Layout Panel Descriptions Sender Unit Edid Button Location Connecting And Operating The DVI FMP Specifi cations Warranty... -
Page 4: Introduction
Congratulations on your purchase of the DVI FMP. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE DVI FMP • The fi ber optics cable must be treated carefully when connectors are exposed. They are susceptible to dust which can contribute to loss of pixels. • DVI FM Plus Extender works for all DVI displays and supports resolutions up to 1920x1200 •... -
Page 6: Features
FEATURES Features • Extends any DVI (Digital Visual Interface) - compliant device up to 2000 ft (600 m) from the computer • Supports video resolutions up to 1080p, 2K, and 1920 x 1200 • Uses inexpensive and widely available four-strand multimode LC fi ber optic cable •... -

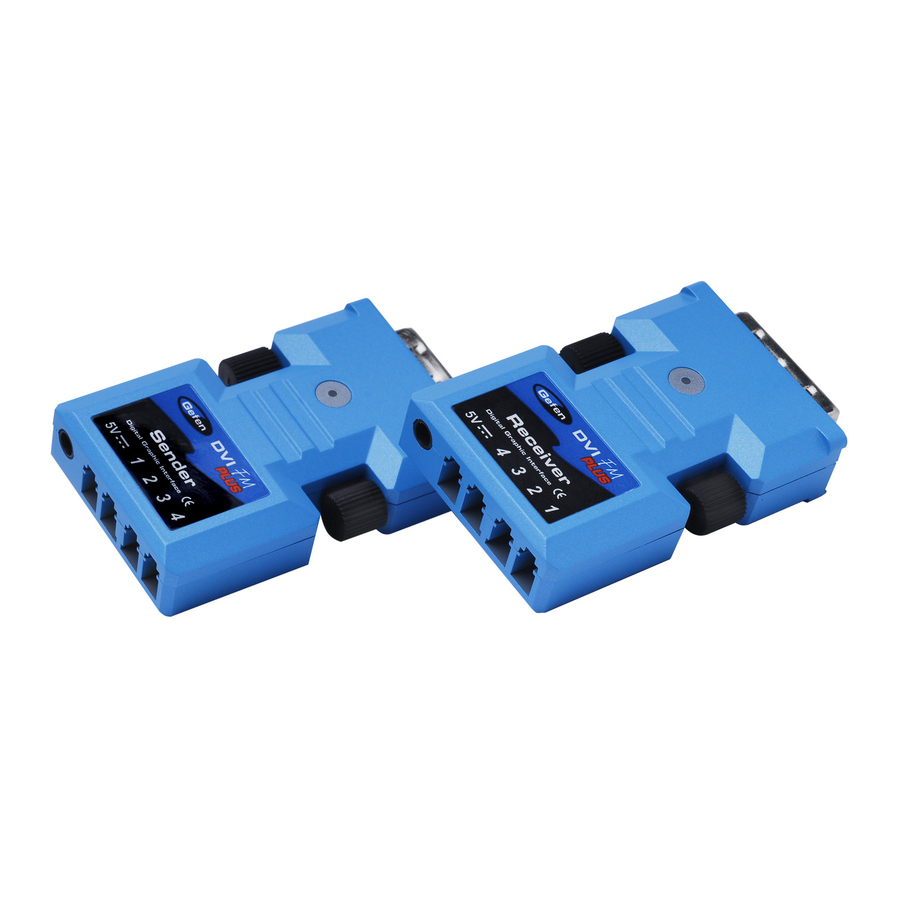

Page 7: Sender/ Receiver Panel Layout
SENDER/ RECEIVER PANEL LAYOUT Front Panel Back Panel Back Panel... -
Page 8: Panel Descriptions
PANEL DESCRIPTIONS DVI Input/Output The sending unit will connect to the DVI output of the source, and the receiving unit will connect to the DVI input of the display. 5V DC Power Supply Input While both the sending and receiving units have the power supply input, only the sending unit should have the included power supply attached. -
Page 9: Sender Unit Edid Button Location
SENDER UNIT EDID BUTTON LOCATION EDID Button Hole Insert a small pin into the EDID button hole to program the display’s EDID... -
Page 10: Connecting And Operating The Dvi Fmp
CONNECTING AND OPERATING THE DVI FMP How to Connect the DVI FMP Plug the 5V power supply to the power input of the sender, and connect the power supply to the nearest power outlet. Ensure that the blue LED is ON. How to program the sender with the displays EDID: Push the EDID button on the sender unit. -
Page 11: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ......................165 MHz Input Video Signal ........................1.2 Volts p-p Input DDC Signal ......................5 Volts p-p (TTL) Maximum Single Link Range ....................1920 x 1200 DVI Input/Output Connector Type ................DVI-D (19 pin) male Fiber Requirement ................. -
Page 12: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 14 Rev X1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
