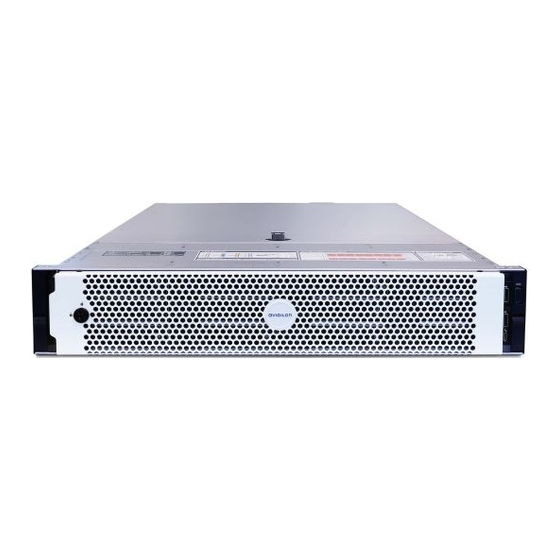

Avigilon NVR5-10GBASET-A2 Installation Manual

Avigilon NVR5-10GBASET-A2 Installation Manual

Nvr5 10g base-t kit

Advertisement

Quick Links

Avigilon NVR5 10G Base-T Kit
Installation Guide
Installation Guide
NVR5-10GBASET-A2
For
NVR5 PRM 192TB-224TB
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NVR5-10GBASET-A2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Avigilon NVR5-10GBASET-A2

  • Page 1 Avigilon NVR5 10G Base-T Kit Installation Guide Installation Guide NVR5-10GBASET-A2 NVR5 PRM 192TB-224TB...
  • Page 2 ©  2022, Avigilon Corporation. All rights reserved. AVIGILON, the AVIGILON logo, AVIGILON are trademarks of Avigilon Corporation. Intel is a trademark of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Other names or logos mentioned herein may be the trademarks of their respective owners. The absence of the symbols ™...
  • Page 3: Table Of Contents

    Table of Contents Introduction Confirm Package Contents Recommended Tools Installing the NVR5 10G Base-T Kit Opening the Cover Installing the 10G Base-T Card in Slot 1 of Expansion Riser 1 Reattaching the Cover Confirming the Installation For More Information...
  • Page 4: Introduction

    Introduction Avigilon provides an optional 10G Base-T Kit for the NVR5 Premium. This kit provides you with high-speed Ethernet ports for faster connections to your security network of ACC Servers and Clients. Part Number Description NVR5-10GBASET-A2 NVR5 Premium 10G Base-T Kit (192TB-224TB)
  • Page 5: Installing The Nvr5 10G Base-T Kit

    Installing the NVR5 10G Base-T Kit Note: If the NVR5 is an operating part of your security system, be aware that it must be shut down to complete this procedure. Before starting to install the kit: 1. Turn off the NVR5, including all attached peripherals. Press the power button on the front panel, and wait for the light to stop blinking to indicate shutdown is complete.
  • Page 6: Opening The Cover

    Opening the Cover 1. At the top of the NVR5, unlock the latch release then lift and rotate the latch towards the back of the unit. The cover slides back and is released from the body. Tip: Use a Phillips #2 screwdriver to remove the shipping screws before unlatching the cover if you are removing the cover of an NVR5 for the first time.
  • Page 7 3. View the interior of the NVR5 and identify the locations where the components of the kit will be installed. The view below shows the details of an NVR5 with all of the covers and cards removed, and important components labeled with numbers. The components affected by the NVR5 10G Base-T Kit are: 10—Expansion card riser 1 The 10G Base-T card will be installed here.
  • Page 8: Installing The 10G Base-T Card In Slot 1 Of Expansion Riser

    Installing the 10G Base-T Card in Slot 1 of Expansion Riser 1 With the NVR5 open: 1. Unpack the 10G Base-T card. 2. Remove the pre-installed quad port Ethernet card in slot 1 of expansion riser 1: a. Pull the expansion card latch out of its slot. Note: The card in this illustration does not match the appearance of the actual card being removed from slot 1.
  • Page 9 seated. c. After the card is installed, push the expansion card latch closed. Installing the 10G Base-T Card in Slot 1 of Expansion Riser 1...
  • Page 10: Reattaching The Cover

    Reattaching the Cover When all the components of the kit have been installed: 1. Ensure all expansion card latches are closed and there are filler covers for all empty slots. 2. Reinstall the top of the cooling shroud. 3. Close and lock the NVR5 cover. 4.
  • Page 11: Confirming The Installation

    Under the Network Adapters heading, there should be four new ports installed in PCIe slot 1. These new ports should have a Link Speed of 10Gbps. Limited Warranty Avigilon warranty terms for this product are provided at avigilon.com/warranty. Confirming the Installation...
  • Page 12: For More Information

    For More Information For additional product documentation and software and firmware upgrades, visit support.avigilon.com. Technical Support Contact Avigilon Technical Support at support.avigilon.com/s/contactsupport. For More Information...
