Accessories Assembly

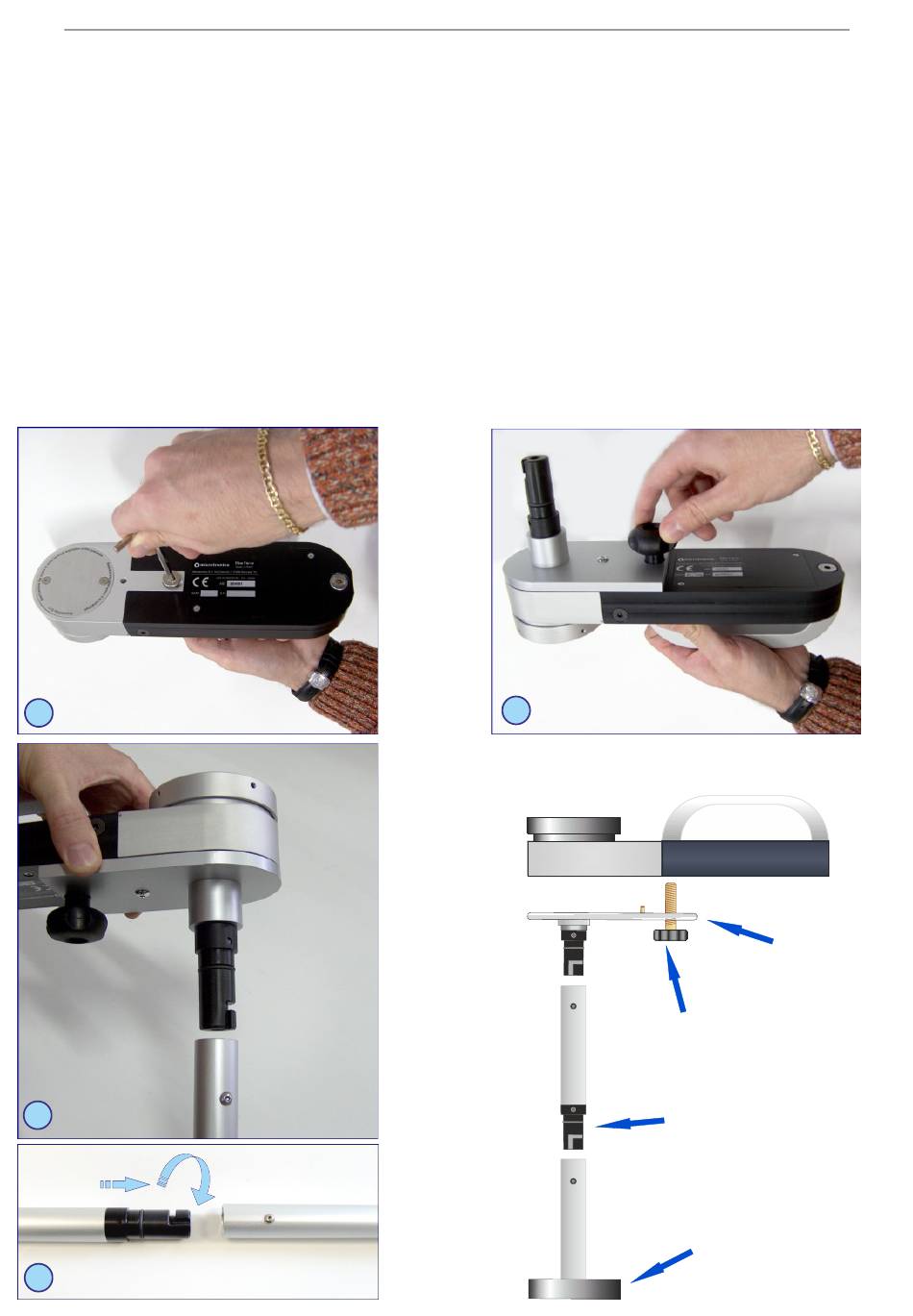

To install the accessories (Straight, Angular and Vertical) it is necessary to remove the handle of the instrument using the
supplied hexagonal key (1).
The support (supplied with the straight accessory) can then be fitted and secured to the handle with the large knob screw
supplied (2). N.B. If the instrument is used without the handle, the support can be secured using the large and small knob
screws supplied.
Other accessories, such as the mechanical stop or other extension elements (3), can then be inserted using the screw
mount (4).
To assemble the screw mount correctly, push the screw mount with the O-ring firmly into the tube in the direction of the
screw and then turn it 180°, see fig. (4).
1
3
4

Using the Instrument - Measurement Positions

- 20 -
2
Screw mount
Support
Screw Knob
Mechanical stop
