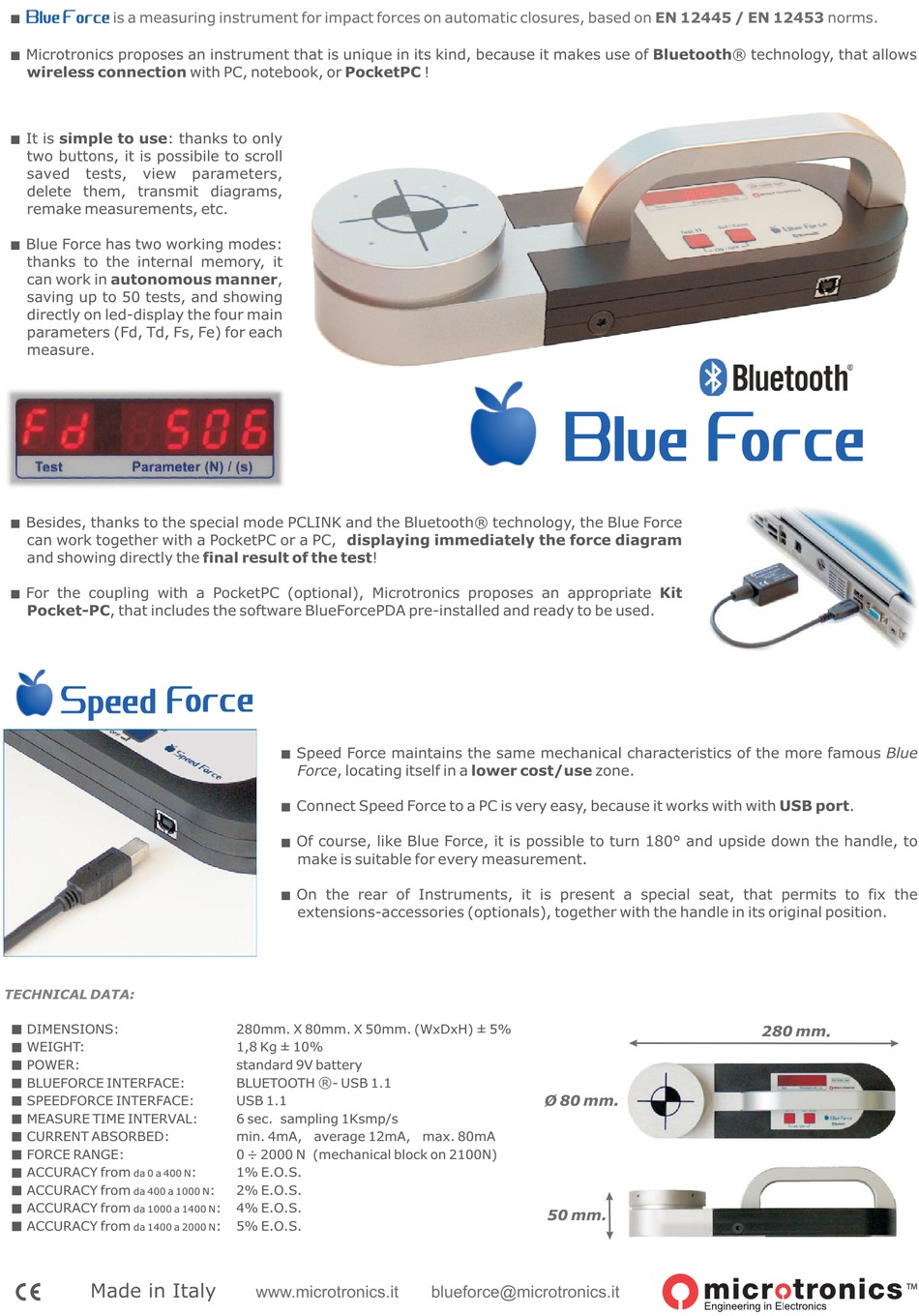

Microtronics Blue Force Manual

n Blue Force

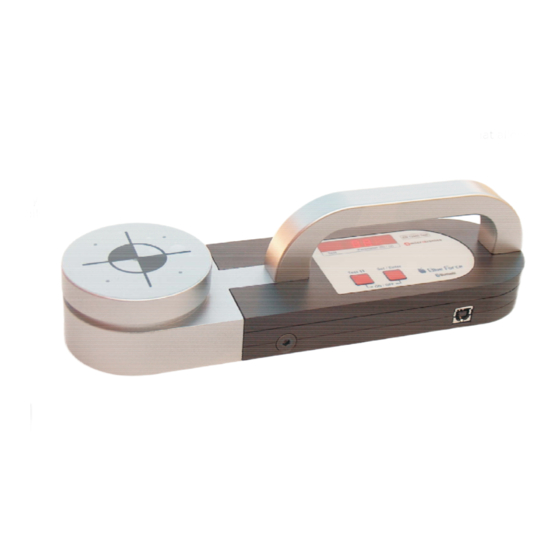

is a measuring instrument for impact forces on automatic closures, based on
n Microtronics proposes an instrument that is unique in its kind, because it makes use of
wireless connection
n
It is simple to use : thanks to only
two buttons, it is possibile to scroll
saved tests, view
delete them, transmit diagrams,
remake measurements, etc.
n
Blue Force has two working modes:
thanks to the internal memory, it
can work in autonomous manner
saving up to 50 tests, and showing
directly on led-display the four main
parameters (Fd, Td, Fs, Fe) for each
measure.
n
Besides, thanks to the special mode PCLINK and the Bluetooth® technology, the Blue Force
can work together with a PocketPC or a PC,
and showing directly the
n
For the coupling with a PocketPC (optional), Microtronics proposes an appropriate
Pocket-PC , that includes the software BlueForcePDA pre-installed and ready to be used.
Speed F orce

TECHNICAL DATA:

n
DIMENSIONS:
n
WEIGHT:
n
POWER:
n
BLUEFORCE INTERFACE:
n
SPEEDFORCE INTERFACE:
n
MEASURE TIME INTERVAL:
n
CURRENT ABSORBED:
n
FORCE RANGE:
n
ACCURACY from
da 0 a 400 N
n
ACCURACY from
da 400 a 1000 N
n
ACCURACY from
da 1000 a 1400 N
n
ACCURACY from
da 1400 a 2000 N
Made in Italy
with PC, notebook, or PocketPC
parameters,
,
displaying immediately the force diagram
final result of the test
n
Speed Force maintains the same mechanical characteristics of the more famous
Force
, locating itself in a
n
Connect Speed Force to a PC is very easy, because it works with with
n
Of course, like Blue Force, it is possible to turn 180° and upside down the handle, to
make is suitable for every measurement.
n
On the rear of Instruments, it is present a special seat, that permits to fix the
extensions-accessories (optionals), together with the handle in its original position.
280mm. X 80mm. X 50mm. (WxDxH) ± 5%
1,8 Kg ± 10%
standard 9V battery
®
BLUETOOTH - USB 1.1
USB 1.1
6 sec. sampling 1Ksmp/s
min. 4mA, average 12mA, max. 80mA
0 ÷ 2000 N (mechanical block on 2100N)
: 1% E.O.S.
: 2% E.O.S.
: 4% E.O.S.
: 5% E.O.S.
www.microtronics.it
!
!
lower cost/use
Ø 80 mm.
blueforce@microtronics.it
EN 12445 / EN 12453
Bluetooth
Blue F orce
Kit
zone.
50 mm.
norms.
® technology, that allows
Blue
USB port .
