BlueForce Software - Main functions

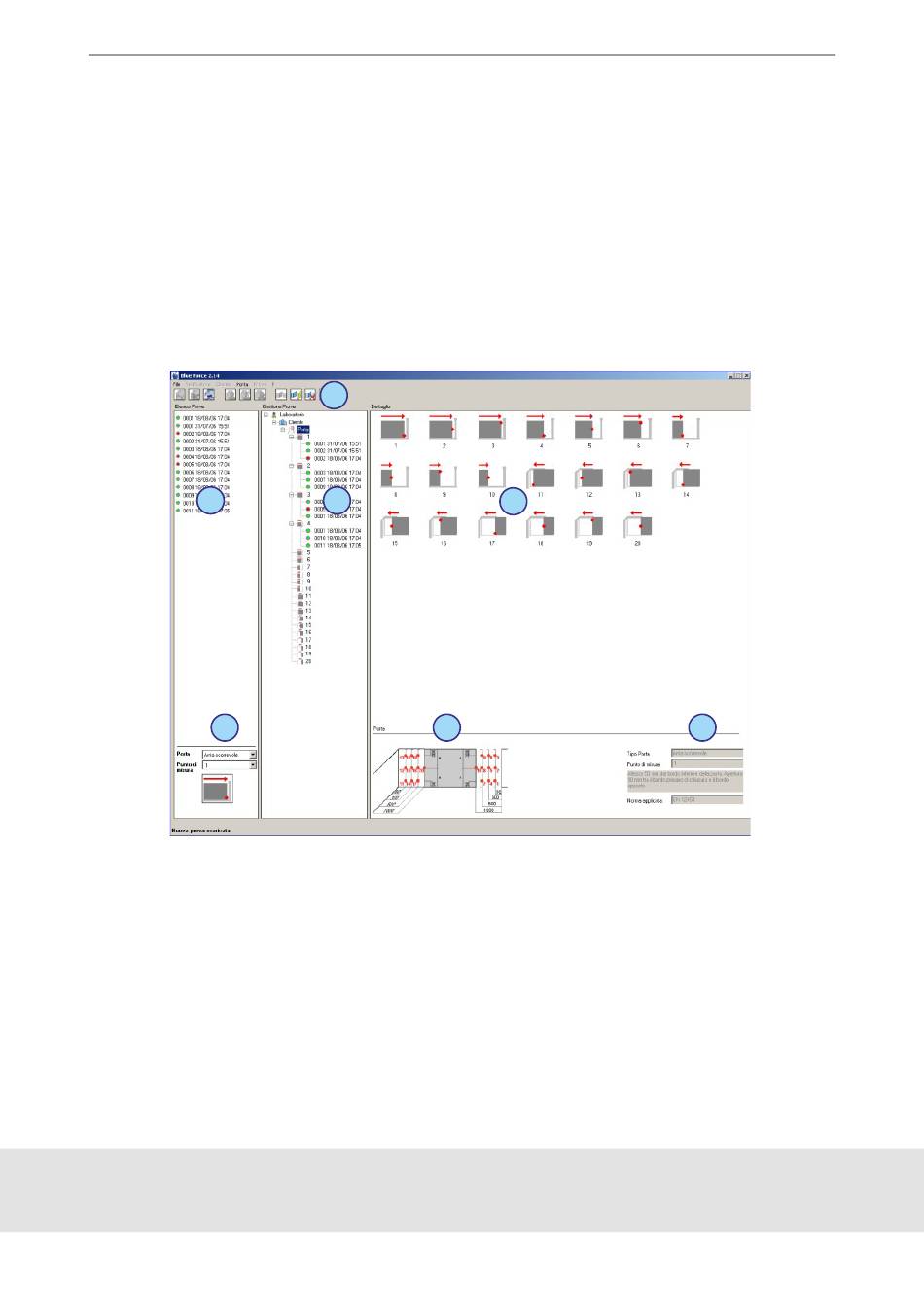

BlueForce Software - Overview
(1) Measurements list area - Measurements transferred from the instrument with the USB cable are listed in the left area
(2) Measurements management area - The central area allows the association of measurements from the list to the doors
(3) Detail area - On the right side you can view the details of the doors added.
(4) Control Area - In the lower left corner there is a preview box that allows evaluation of measurements.
(5) Detail of measurements points - Representation of measurement points with reference to the type of door.
(6) Reference standard - Detail of the measurement point defined by the applied Standard.
(7) Functions menu - Menu for selecting software functions.
7
2
1
3
4 6
5
BlueForce Software - First Use
Make a 'Test Measurement' as described on page 5.
Transfer the measurements to the software using the USB cable and the SEND-USB function on the instrument, as described
on page 7.
Measurements sent to the software are arranged at the top left and continue downwards. Each measurement includes a
sequential number, date and time. To the left of the measurement there is a dot that can be either green or red to indicate the
result: positive or negative.
The colour/result evaluation is defined by the control area below, then by selecting the door type and the measurement point,
the results of the listed measurements are automatically displayed.
