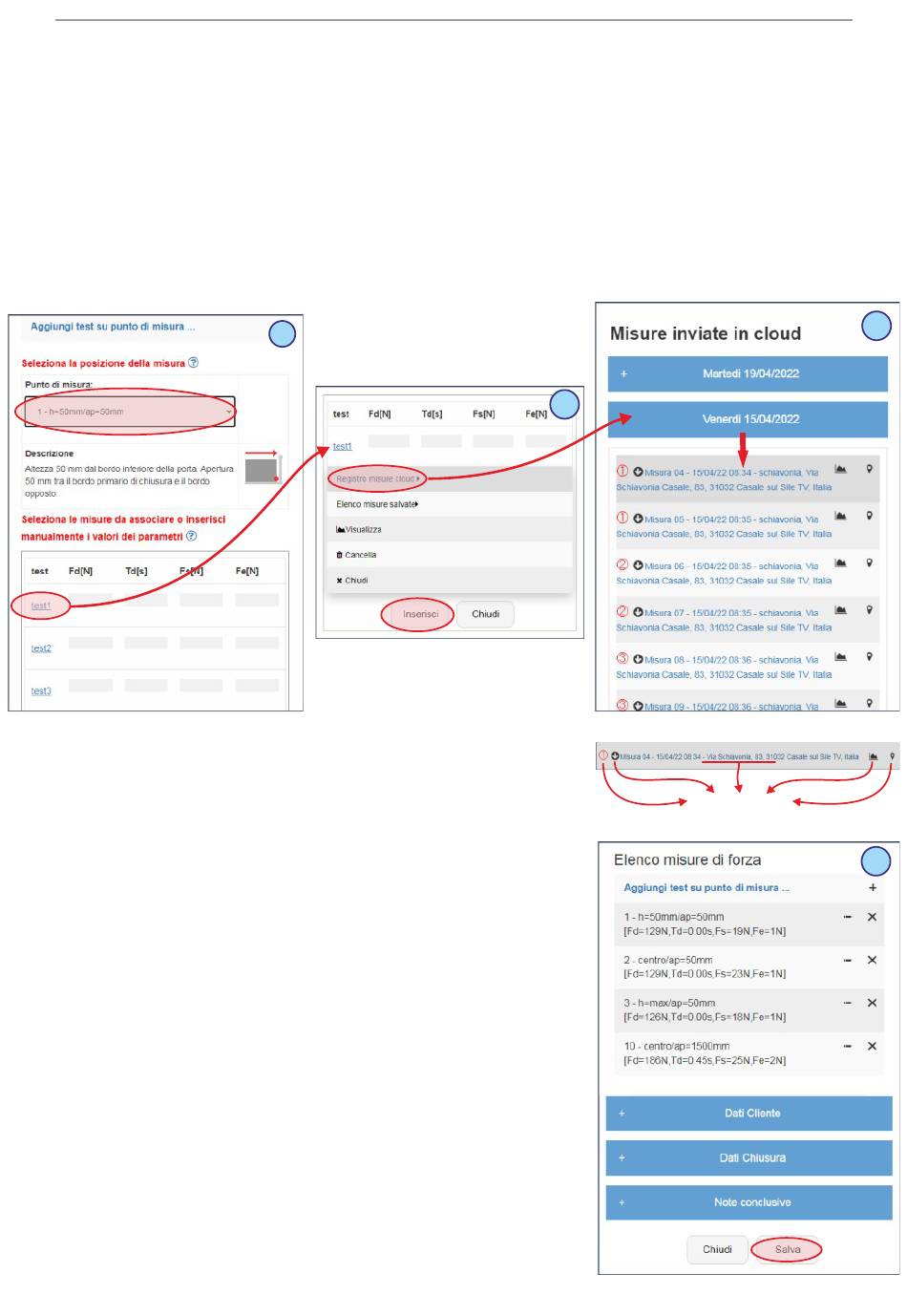

5) Then select one of the points available in the Measurement Point drop-down menu (the detailed Description provided for
by the Standard is available under the menu), then proceed to select the test, e.g. no. 1.
N.B. Please note that normally three tests/measurements are provided for each point with the calculation of the resulting
average value.
6) Later on you will access the menu that allows you to choose the measurements stored in the Cloud, then select Cloud
Measurements Register, to access the list of Measurements (sent by the instrument in GSM mode).
N.B. This menu also allows you to view/edit/delete the associated measurements.
7) The list of measurements is represented by a calendar, each measurement
taken is saved on the day of execution. Select a measurement to associate it with
the previously selected point and press Add.
In the details of the measurement we can identify:
A- The "Point" position reference number (if set in the instrument, see page 8)
B- Instrument orientation (down arrow = horizontal position, left or right arrow = vertical
position)
C- Progressive number of the measurement saved by the instrument and geographical
address detected by the GPS locationing
D- Preview of Measurement Graph
E- Map view of GPS location.
8) Repeat the association operation described above for each measurement
point, when finished, click Save to save the complete Test Report.
You can then Print the Report, see "Print PDF" menu on the left.
Processing of Measurements saved in the Cloud area
5
6
- 12 -
A B C D E
7
8
