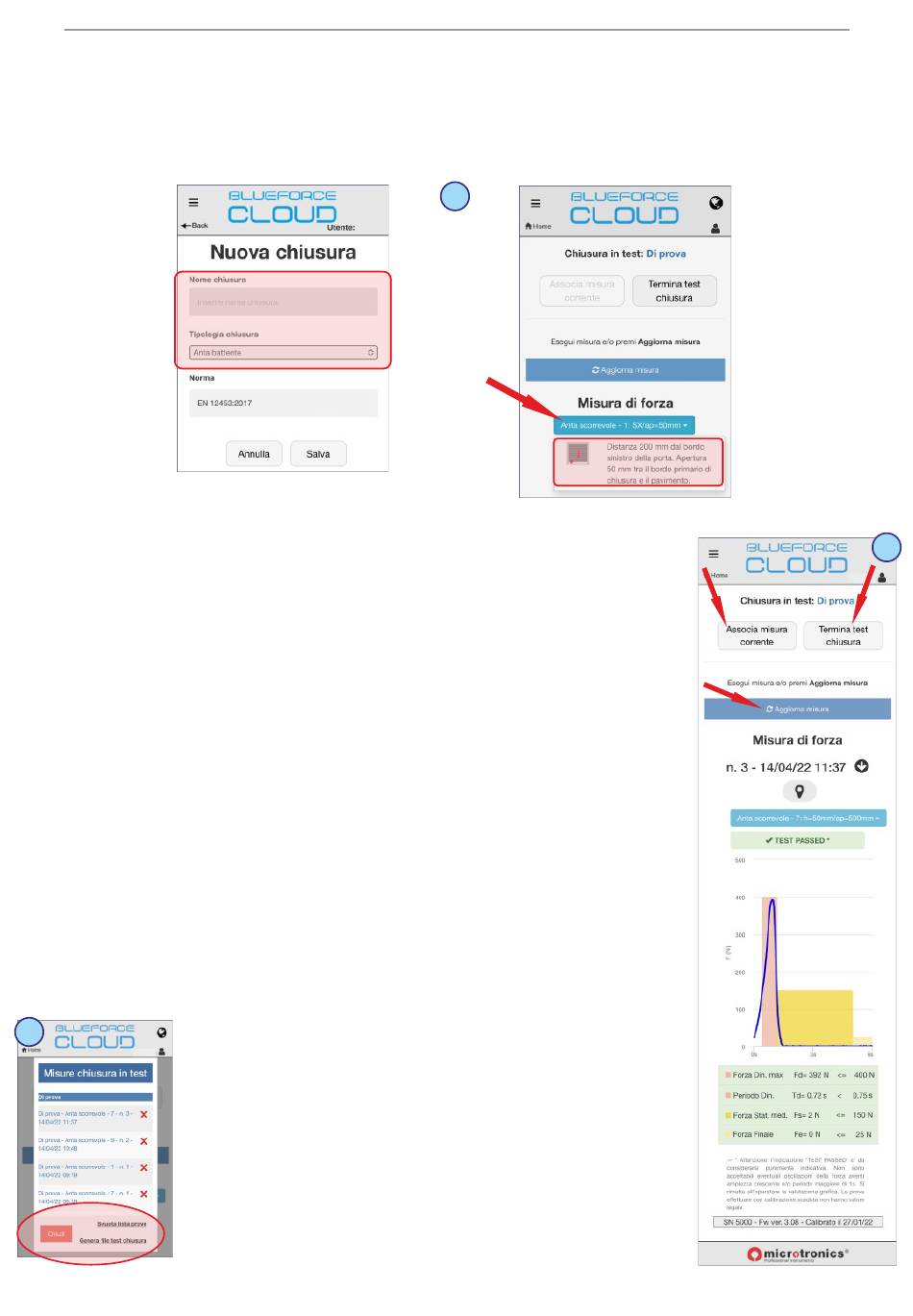

2) Below, if you have chosen to create a new door, you will be prompted to enter the Name and Type of door (see example on
the left). If, on the other hand, you have chosen to use an existing door, you must click on the Type of door, then click on the
detail box and then select the Measurement point (see example on the right).
3) You can now make the measurement with the instrument at the chosen point, then press
Update to display it.
N.B. By scrolling down, you can view all the details of the measurement, such as: the
progressive number, date, time, instrument orientation, GPS position, test result, graph,
parameters and calibration date.
- Associate the measurement by pressing on Associate current measurement, (a
confirmation notice will be displayed).
- To end the test session on the door, continue to make measurements with the instrument
and then associate them by repeating the above operation: Update -> Select measurement
point -> Associate current measurement.
- At the end of the session, press Finish Test (the list of measurements will be displayed).
4
Displaying Measurements in Mobile Devices
4) Then you can create the test file (final measurements report
saved in the cloud portal), or you can delete the measurements
individually or all together by pressing on Empty measurements
list.
